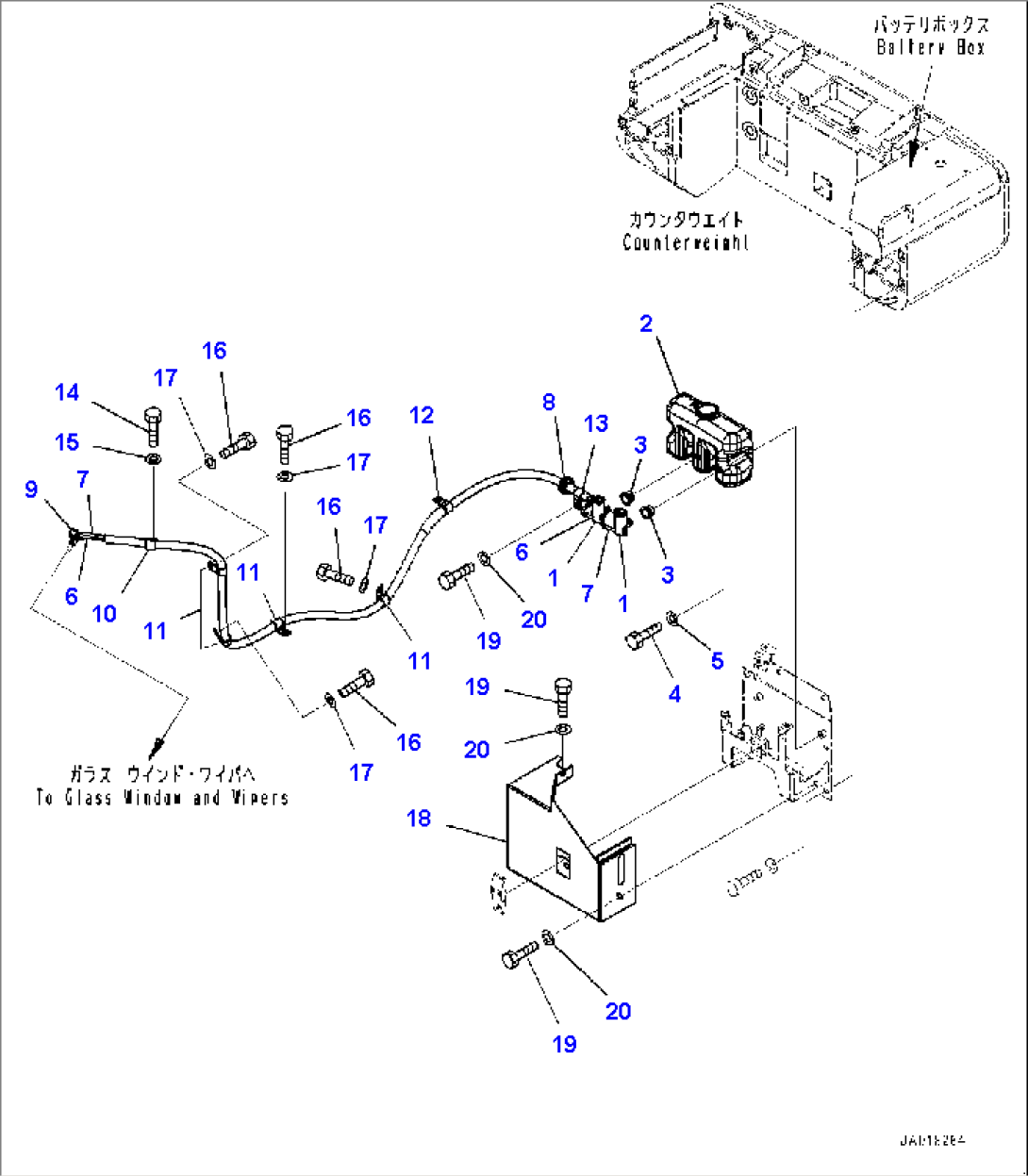

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-07-51191 | Tank | 80001- | ||
| 1 | 13Y-911-1220 | Pump Assembly | 80001- | |
| 2 | 417-07-51291 | Tank Assembly | 80001- | |
| 3 | 13Y-911-1240 | Grommet | 80001- | |
| 4 | 01010-80616 | Bolt | 80001- | |
| 5 | 209-72-12230 | Washer | 80001- | |
| 6 | 417-07-51150 | Hose | 80001- | |
| 7 | 417-07-51160 | Hose | 80001- | |
| 8 | 418-06-12430 | Grommet | 80001- | |
| 9 | 08034-40521 | Band | 80001- | |
| 10 | 04434-51910 | Clip | 80001- | |
| 11 | 04434-51910 | Clip | 80001- | |
| 12 | 04434-51910 | Clip | 80001- | |
| 13 | 04434-51910 | Clip | 80001- | |
| 14 | 01010-81020 | Bolt | 80001- | |
| 15 | 01643-31032 | Washer | 80001- | |
| 16 | 01010-81025 | Bolt | 80001- | |
| 17 | 01643-31032 | Washer | 80001- | |
| 18 | 417-07-51181 | Cover | 80001- | |
| 19 | 01010-81020 | Bolt | 80001- | |
| 20 | 01643-31032 | Washer | 80001- |
