| Item | Part No. | Part Name | Qty | Serial No. |

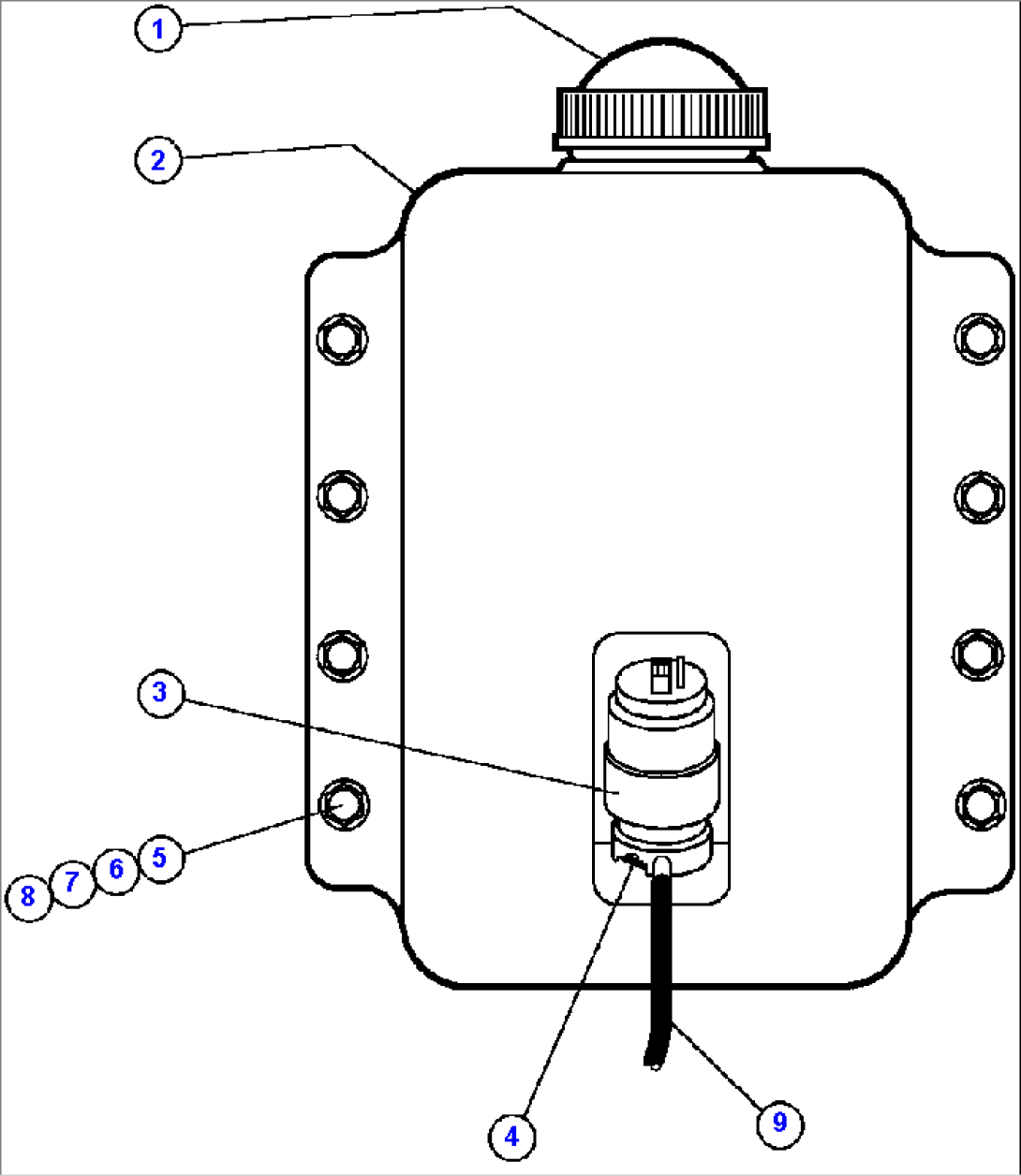

| 0 | PB7514 | WINDSHIELD WASHER ASSEMBLY | ||
| 1 | VE2942 | CAP, RESERVOIR | ||
| 2 | VE5339 | TANK, 4 QT | ||
| 3 | VE2941 | PUMP, RESERVOIR | ||
| 4 | VE6598 | GROMMET | ||
| 5 | TD1548 | MACHINE SCREW - 1/4" - 20NC X 5/8" | ||
| 6 | DC3584 | LOCKWASHER - 1/4" | ||
| 7 | TR1307 | FLAT WASHER - 1/4" | ||
| 8 | TD1549 | NUT - 1/4" - 20NC | ||
| 9 | EC8892 | HOSE | ||
| NS|11 | NOTE: NS = NOT SHOWN | |||
| NS|12 | TG2568 | CLAMP | ||
| NS|13 | VZ0598 | TYRAP | ||
| NS|14 | VC8920 | GROMMET, RUBBER |
