| Item | Part No. | Part Name | Qty | Serial No. |

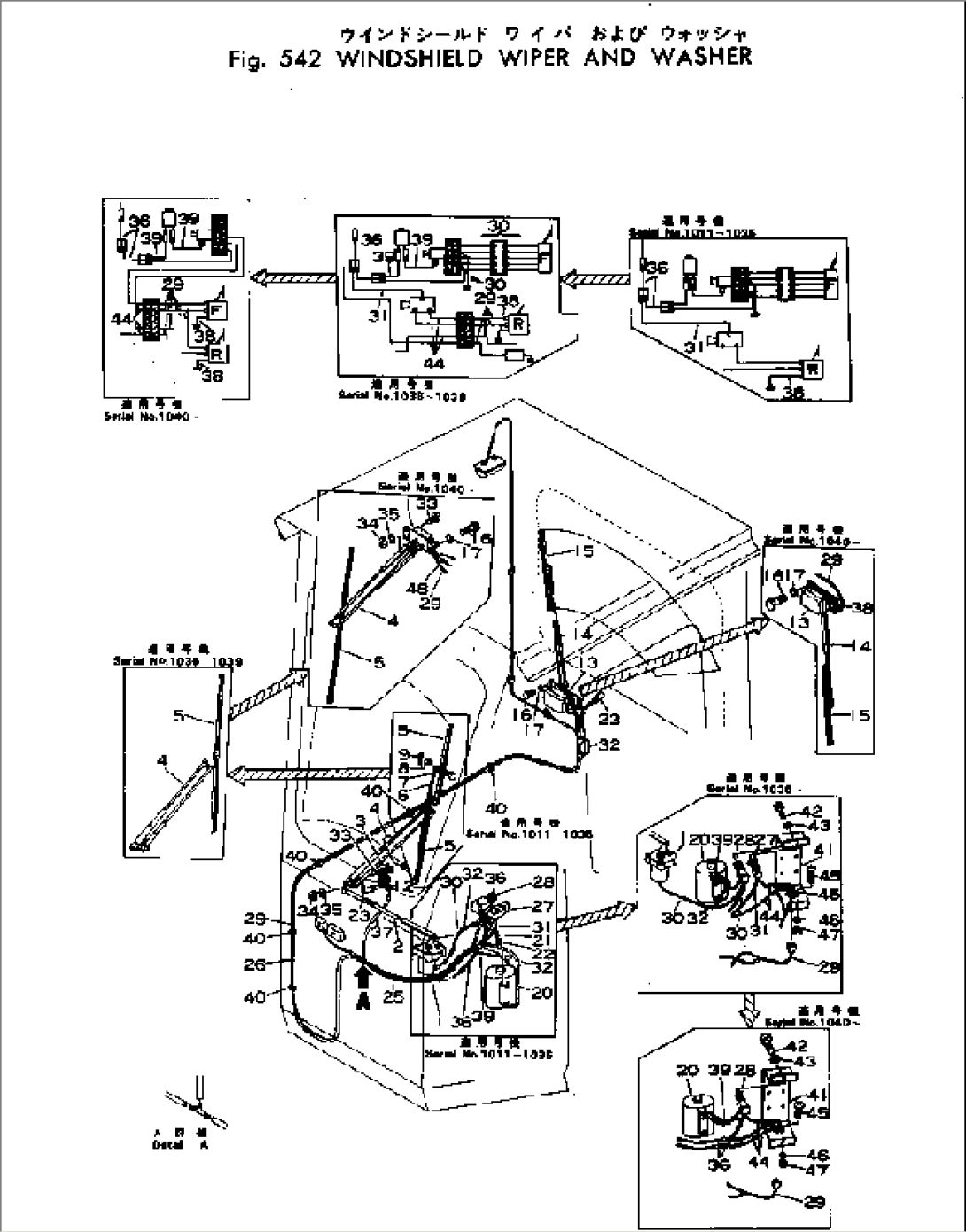

| 256-81-17000 | WIPER AND WASHER A. | 1011- | ||
| 1 | 08180-02480 | MOTOR ASS'Y,FRONT | 1040- | |
| 1 | 565-07-14110 | MOTOR ASS'Y,FRONT | 1011-1039 | |
| 2 | 256-81-17210 | LINK | 1011-1039 | |
| 3 | 01641-01423 | WASHER | 1011-1039 | |
| 4 | 08184-01500 | ARM | 1011- | |
| 5 | 08185-00400 | BLADE | 1036- | |
| 5 | 08185-00300 | BLADE | 1011-1035 | |
| 6 | 256-81-17220 | ARM | 1011-1035 | |
| 7 | 256-81-17230 | BOLT | 1011-1035 | |
| 8 | 01580-20302 | NUT | 1011-1035 | |
| 9 | 04050-01008 | PIN | 1011-1035 | |
| 12 | 08037-01008 | GROMMET | 1011- | |
| 13 | 08180-02480 | MOTOR ASS'Y,REAR | 1011- | |
| 14 | 08184-00550 | ARM | 1011- | |
| 15 | 08185-00400 | BLADE | 1011- | |
| 16 | 01010-50612 | BOLT | 1040- | |
| 16 | 01010-50612 | BOLT | 1011-1039 | |
| 17 | 01602-20619 | WASHER | 1040- | |
| 17 | 01602-20619 | WASHER | 1011-1039 | |
| 20 | 566-07-14110 | TANK,WASHER | 1011- | |
| 21 | 01010-50610 | BOLT | 1011- | |
| 22 | 01602-20619 | WASHER | 1011- | |
| 23 | 566-07-14120 | NOZZLE | 1011- | |
| 24 | 566-07-14130 | TEE | 1011- | |
| 25 | 566-07-14140 | HOSE | 1011- | |
| 26 | 256-81-17310 | HOSE | 1011- | |
| 27 | 08183-00000 | SWITCH,REAR WIPER | 1011-1039 | |
| 28 | 565-07-14360 | SWITCH,FRONT WIPER | 1011- | |
| 29 | 256-06-11462 | CABLE | 1040- | |
| 29 | 256-06-11461 | HARNESS | 1035-1039 | |
| 29 | 256-06-11460 | HARNESS | 1011-1035 | |
| 30 | 256-06-11440 | HARNESS | 1011-1039 | |
| 31 | 256-06-11330 | WIRE | 1011-1039 | |
| 32 | 472-06-27640 | STICKER | 1011- | |
| 33 | 01220-40516 | SCREW | 1011- | |
| 34 | 01580-10504 | NUT | 1011- | |
| 35 | 01601-20513 | WASHER | 1011- | |
| 36 | 256-06-11420 | WIRE | 1011- | |
| 37 | 566-07-14150 | HOSE | 1011- | |
| 38 | 256-06-11480 | WIRE | 1040- | |
| 38 | 256-06-11480 | WIRE | 1011-1039 | |
| 39 | 256-06-11430 | HARNESS | 1011- | |
| 40 | 281-06-16760 | BAND | 1011- | |
| 41 | 256-81-17410 | PANEL | 1036- | |
| 42 | 01010-51016 | BOLT | 1036- | |
| 43 | 01602-21030 | WASHER | 1036- | |
| 44 | 256-06-11721 | HARNESS | 1040- | |
| 44 | 256-06-11720 | HARNESS | 1036-1039 | |
| 45 | 01210-50310 | SCREW | 1036- | |
| 46 | 01602-20307 | WASHER | 1036- | |
| 47 | 01580-10302 | NUT | 1036- |
