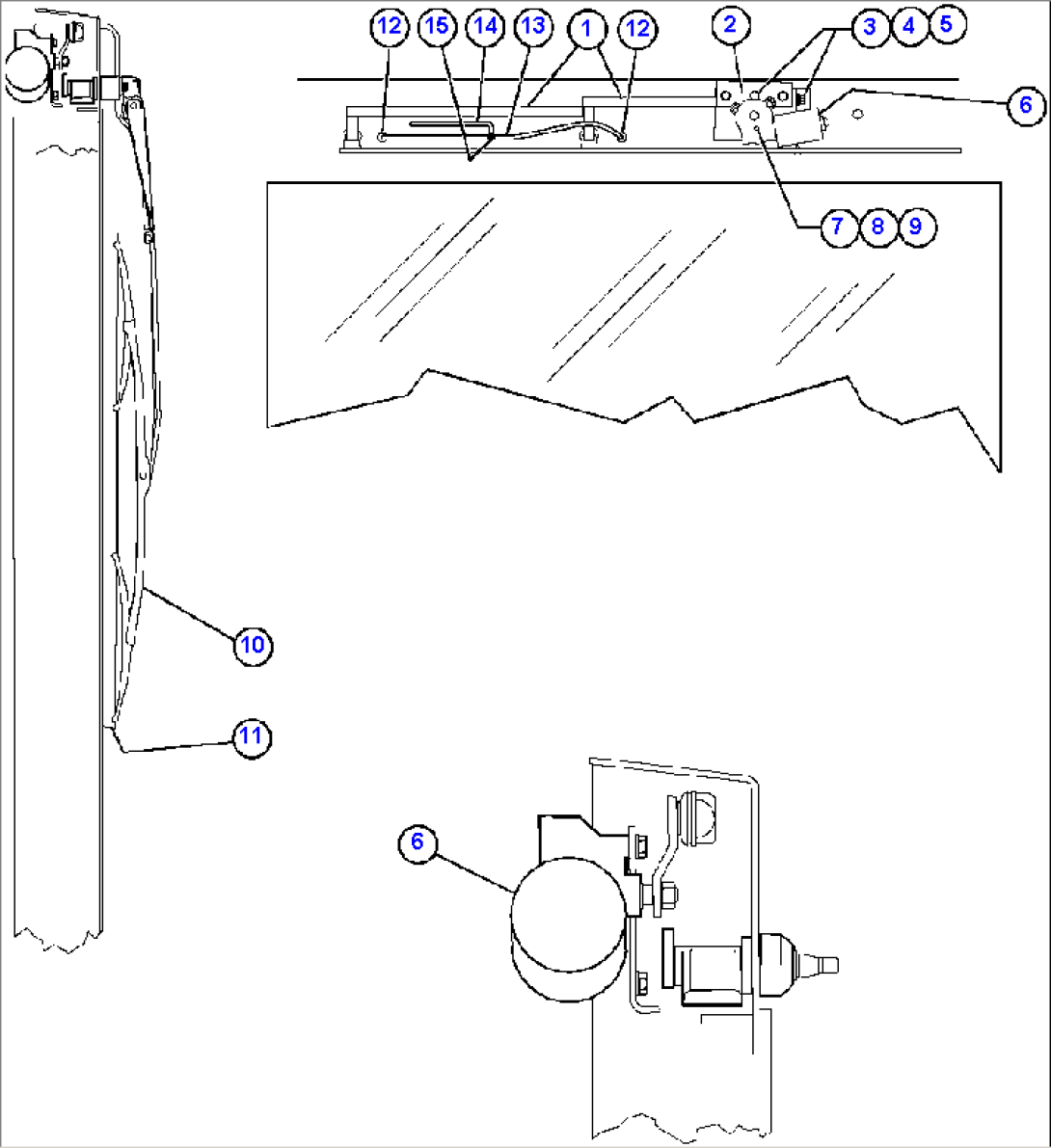

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB9926 | LINKAGE | ||
| 2 | SM4345 | PLATE | ||
| 3 | MM0592 | CAPSCREW - M8 X 1.25 X 16 | ||
| 4 | MM0470 | LOCKWASHER - M8 | ||
| 5 | MM0712 | FLAT WASHER - M8 | ||
| 6 | PB9923 | MOTOR, WIPER - 24 VOLT | ||
| 7 | MM0581 | CAPSCREW - M6 X 1.00 X 16 | ||
| 8 | MM0469 | LOCKWASHER - M6 | ||
| 9 | MM0711 | FLAT WASHER - M6 | ||
| 10 | PB9924 | ARM, WET WIPER | ||
| 10 | XA2095 | NOZZLE | ||
| 11 | PB9925 | BLADE, WIPER | ||
| 12 | TF6380 | GROMMET | ||
| 13 | SM4477 | HOSE | ||
| 14 | EC8892 | HOSE | ||
| 15 | EG0735 | TEE | ||
| NS|17 | NOTE: NS = NOT SHOWN | |||
| NS|18 | XK0185 | WIPER LINKAGE MOUNTING SUPPORT KIT | ||
| NS|19 | EK4231 | BLOCK, SPACER (UNDER EACH PILLOW BLOCK) | ||
| NS|20 | MM0040 | CAPSCREW - M6 X 1.00 X 35 | ||
| NS|21 | MM0459 | FLAT WASHER - M6 | ||
| NS|22 | MM0469 | LOCKWASHER - M6 | ||
| NS|23 | MM0176 | NUT - M6 X 1.00 |
