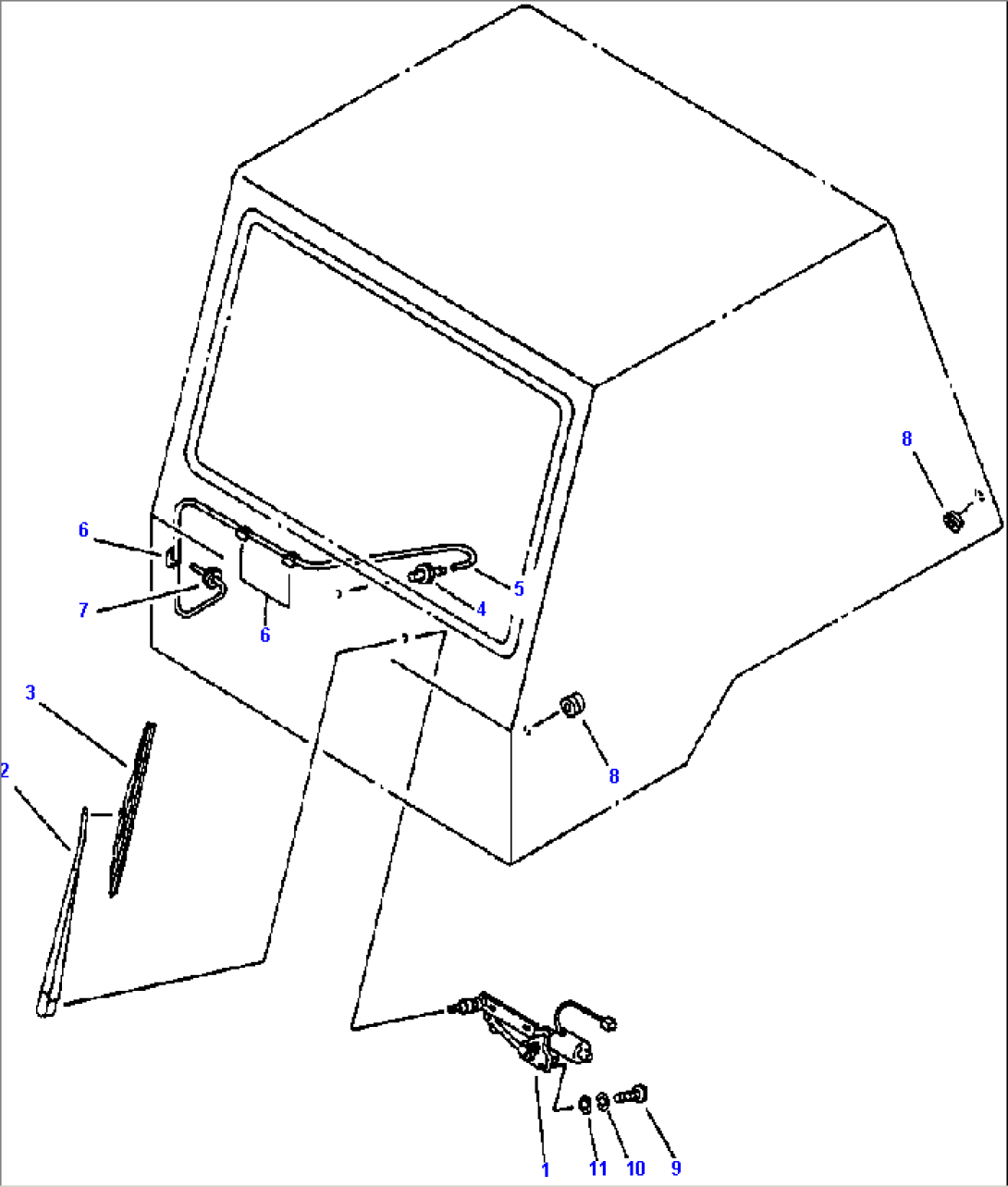

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | 561-54-62A01 | CAB ASSEMBLY | ||
| 1 | 561-54-64440 | MOTOR, WIPER | ||
| 2 | 561-54-64410 | ARM, WIPER | ||
| 3 | 561-54-64420 | BLADE | ||
| 4 | 421-54-15430 | NOZZLE | ||
| 5 | 561-54-64430 | HOSE | ||
| 6 | 421-54-15520 | CLIP | ||
| 7 | 561-54-64480 | GROMMET | ||
| 8 | 561-54-64460 | GROMMET | ||
| 9 | 01220-40616 | SCREW | ||
| 10 | 01602-20619 | WASHER, SPRING | ||
| 11 | 01641-20608 | WASHER |
