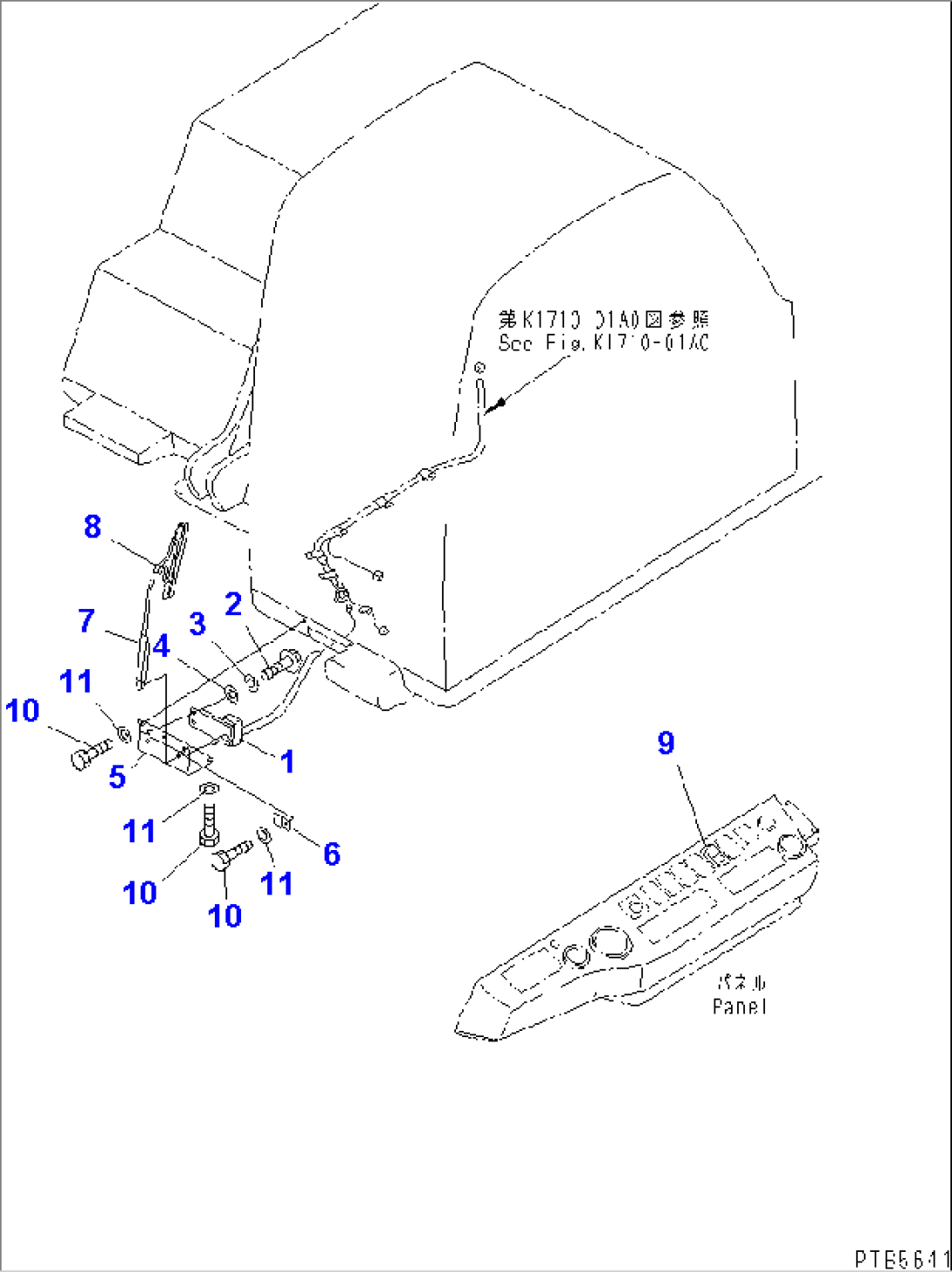

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-911-3380 | WIPER MOTOR ASS'Y | K30545- | |
| 2 | 01220-40516 | SCREW | K30545- | |
| 3 | 01601-20513 | WASHER,SPRING | K30545- | |
| 4 | 01641-20508 | WASHER | K30545- | |
| 5 | 20Y-06-29820 | BRACKET | K30545- | |
| 6 | 20Y-06-29830 | PLATE | K30545- | |
| 7 | 20E-54-K2310 | ARM,WIPER | K30545- | |
| 8 | 20E-54-K2290 | BLADE,WIPER | K30545- | |
| 9 | 20Y-06-29660 | SWITCH | K30545- | |
| 10 | 01010-81225 | BOLT | K30545- | |
| 11 | 01643-31232 | WASHER | K30545- |
