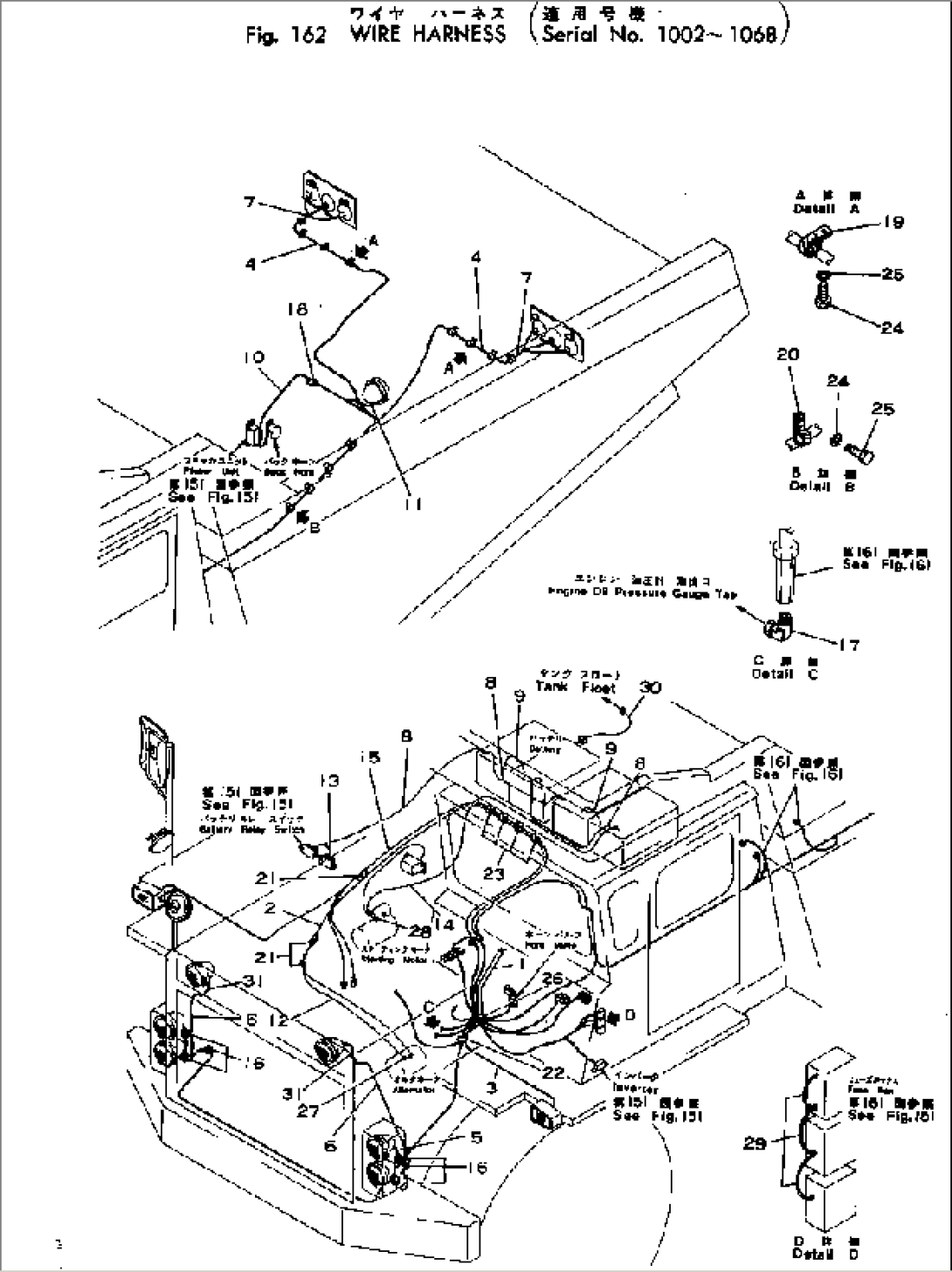

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-12931 | HARNESS,WIRE | 1002-1068 | |
| 2 | 569-06-12941 | HARNESS,WIRE | 1002-1068 | |
| 3 | 569-06-12951 | HARNESS,WIRE | 1002-@ | |
| 4 | 569-06-12960 | HARNESS,WIRE | 1002-1068 | |
| 5 | 569-06-12971 | HARNESS,WIRE | 1002-@ | |
| 6 | 566-06-12981 | HARNESS,WIRE | 1002-@ | |
| 7 | 566-06-12991 | CABLE,WIRE | 1002-1068 | |
| 8 | 566-06-12310 | WIRE | 1002-@ | |
| 9 | 281-06-11220 | CABLE | 1002-@ | |
| 10 | 566-06-12770 | WIRE | 1002-1068 | |
| 11 | 566-06-12370 | WIRE | 1002-1068 | |
| 12 | 568-06-12180 | CABLE | 1002-@ | |
| 13 | 480-07-16640 | CABLE | 1002-@ | |
| 14 | 568-06-12190 | CABLE | 1002-@ | |
| 15 | 568-06-12220 | CABLE | 1002-@ | |
| 16 | 08037-01008 | GROMMET | 1002-@ | |
| 17 | 6610-81-8820 | ELBOW | 1002-@ | |
| 18 | 08036-10614 | CLIP | 1002-@ | |
| 19 | 08036-11214 | CLIP | 1002-@ | |
| 20 | 08036-01414 | CLIP | 1002-@ | |
| 21 | 08036-01814 | CLIP | 1002-@ | |
| 22 | 08036-03014 | CLIP | 1002-@ | |
| 23 | 281-01-13180 | CLIP | 1002-@ | |
| 24 | 01010-51016 | BOLT | 1002-@ | |
| 25 | 01602-21030 | WASHER | 1002-@ | |
| 26 | 281-06-16760 | BAND | 1002-@ | |
| 27 | 08038-02027 | CAP | 1002-@ | |
| 28 | 08038-00035 | CAP | 1002-@ | |
| 29 | 08029-05515 | WIRE | 1002-@ | |
| 30 | 569-06-12410 | CABLE | 1002-@ | |
| 31 | 569-06-12460 | CABLE | 1002-@ |
