| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21N-06-41410 | WIRING HARNESS | 35001- | |
| 2 | 04434-51012 | CLIP | 35001- | |
| 3 | 08193-20012 | CLIP | 35001- | |
| 4 | 01010-81225 | BOLT | 35001- | |
| 5 | 01643-31232 | WASHER | 35001- | |
| 6 | 04434-51012 | CLIP | 35001- | |
| 7 | 04434-51008 | CLIP | 35001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc1250 8r s/n 35001 35200 (w/o egr) (+55°c spec.)
- Electrical system
- Wiring (auto grease additional harness)(#35001 )
Поиск по каталогу

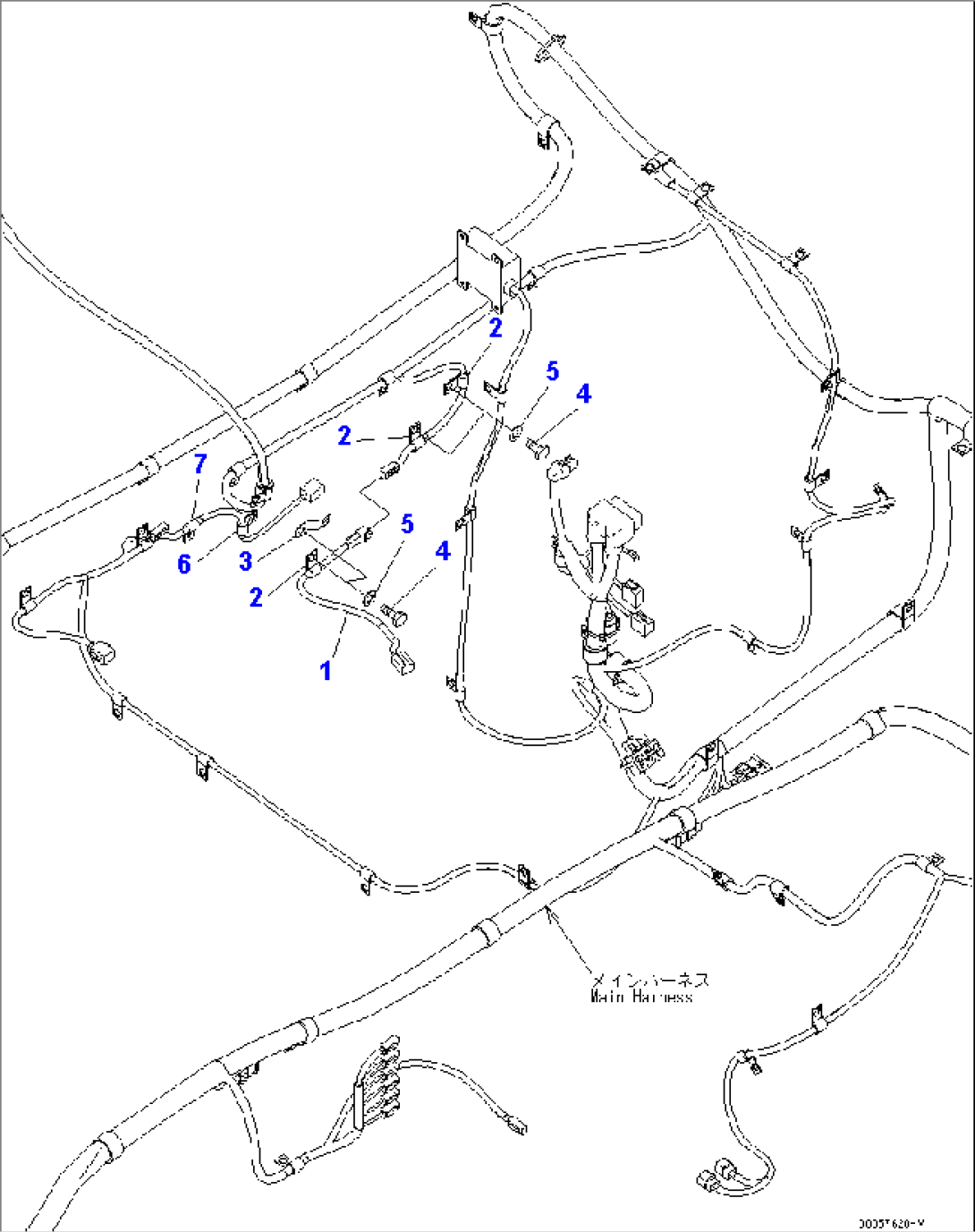

WIRING (AUTO GREASE ADDITIONAL HARNESS)(#35001-)
