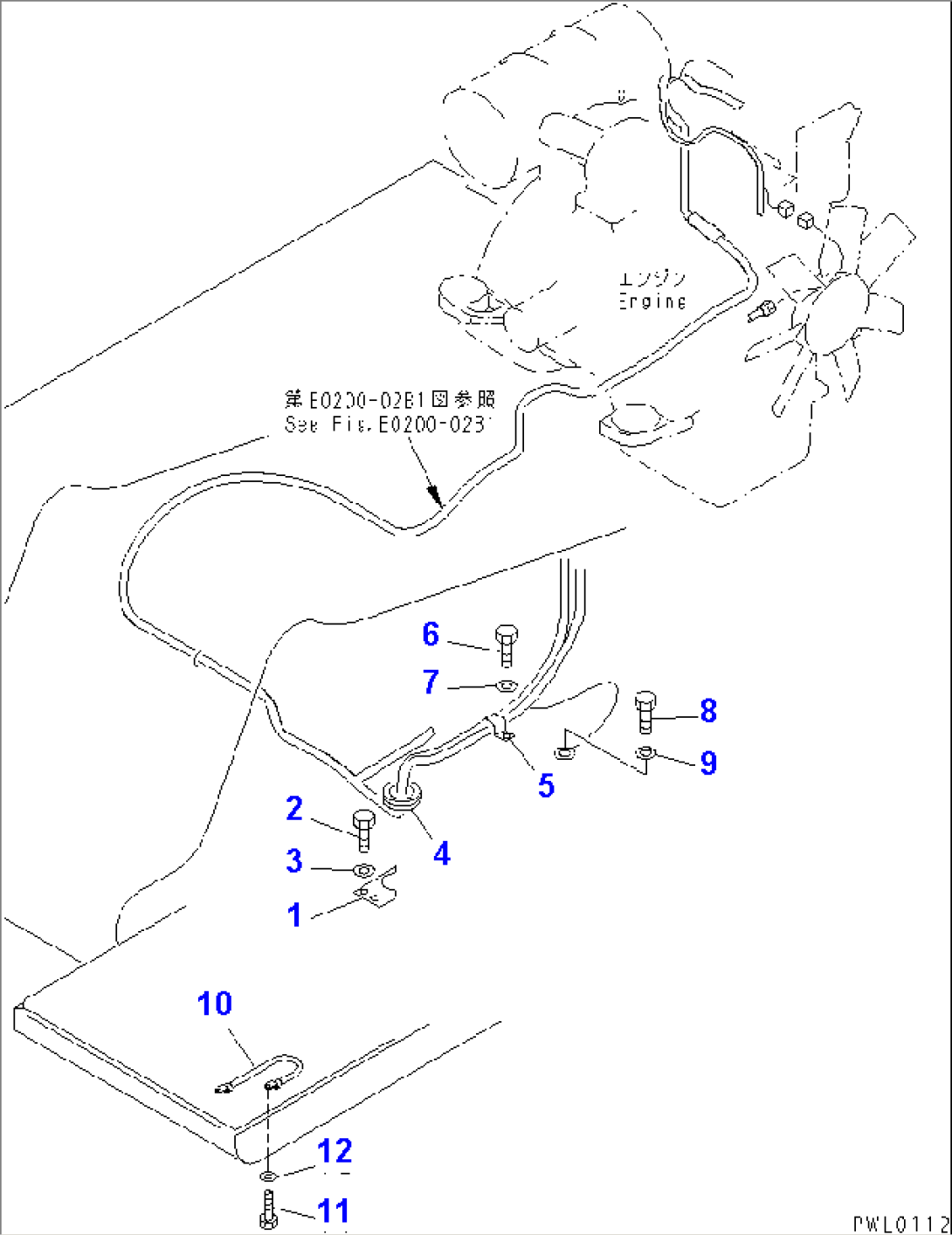

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-21561 | PLATE | 52401-@ | |
| 2 | 01010-81225 | BOLT | 57000-@ | |
| 01010-51225 | BOLT | 52401-56999 | ||
| 3 | 01643-31232 | WASHER | 52401-@ | |
| 4 | 21T-06-73320 | GROMMET | 52401-@ | |
| 5 | 20Y-62-15891 | CLIP | 52401-@ | |
| 6 | 01010-81225 | BOLT | 57000-@ | |
| 01010-51225 | BOLT | 52401-56999 | ||
| 7 | 01643-31232 | WASHER | 52401-@ | |
| 8 | 01010-81225 | BOLT | 57000-@ | |
| 01010-51225 | BOLT | 52401-56999 | ||
| 9 | 01643-31232 | WASHER | 52401-@ | |
| 10 | 08028-43030 | CABLE | 52401-@ | |
| 11 | 01010-81016 | BOLT | 57000-@ | |
| 01010-51016 | BOLT | 52401-56999 | ||
| 12 | 01643-31032 | WASHER | 52401-@ |
