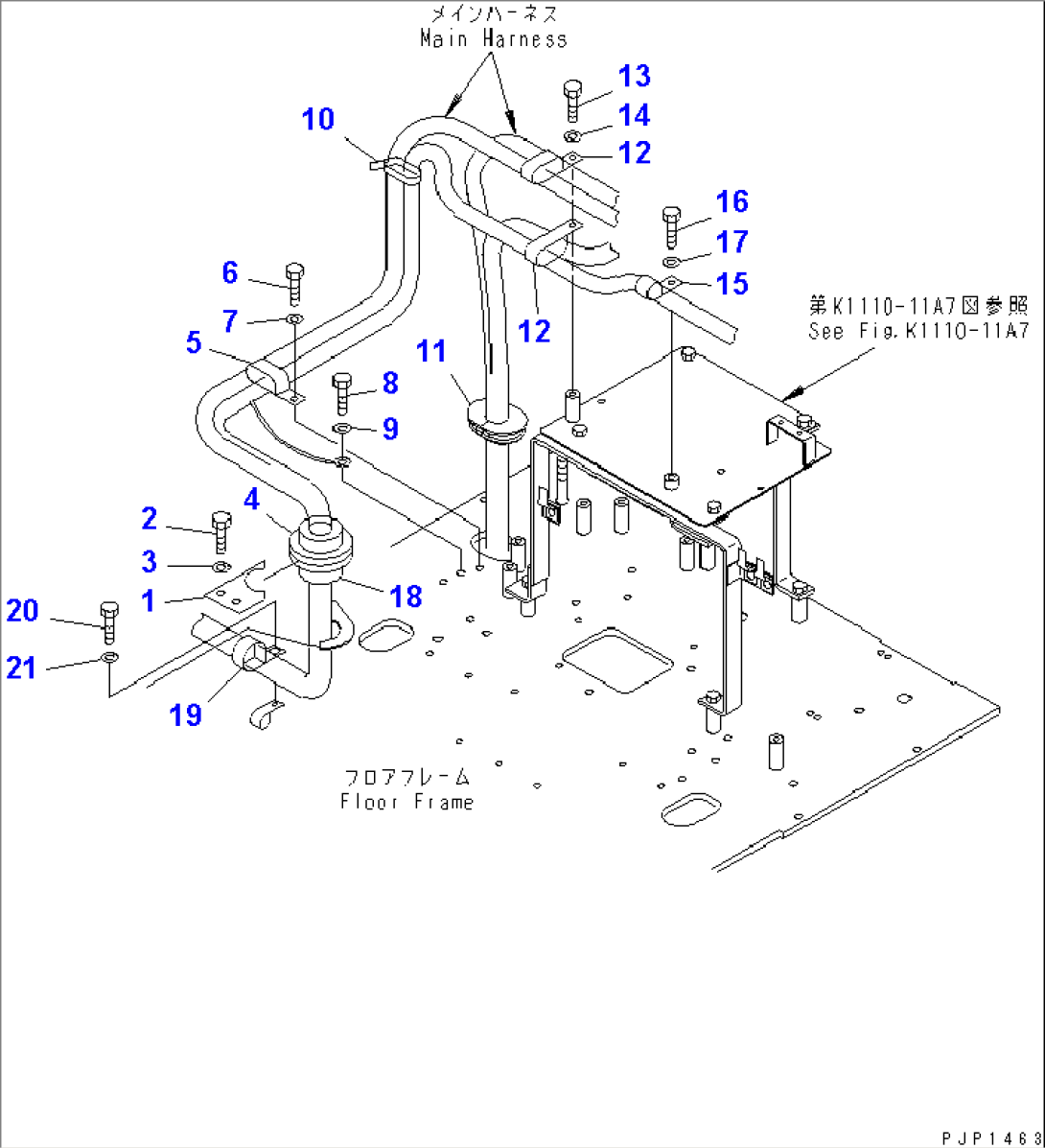

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-21561 | PLATE | K32001- | |
| 2 | 01010-81225 | BOLT | K32001- | |
| 3 | 01643-31232 | WASHER | K32001- | |
| 4 | 21T-06-73320 | GROMMET | K32001- | |
| 5 | 156-911-4190 | CLAMP | K32001- | |
| 6 | 01010-81225 | BOLT | K32001- | |
| 7 | 01643-31232 | WASHER | K32001- | |
| 8 | 01010-81225 | BOLT | K32001- | |
| 9 | 01643-31232 | WASHER | K32001- | |
| 10 | 08034-00536 | BAND | K32001- | |
| 11 | 209-43-77130 | GROMMET | K32001- | |
| 12 | 203-06-56390 | CLIP | K32001- | |
| 13 | 01010-81020 | BOLT | K32001- | |
| 14 | 01643-31032 | WASHER | K32001- | |
| 15 | 04434-51912 | CLIP | K32001- | |
| 16 | 01010-81020 | BOLT | K32001- | |
| 17 | 01643-31032 | WASHER | K32001- | |
| 18 | 209-06-77191 | SEAL | K32001- | |
| 19 | 20Y-62-15951 | CLIP | K32001- | |
| 20 | 01010-81220 | BOLT | K32001- | |
| 21 | 01643-31232 | WASHER | K32001- |
