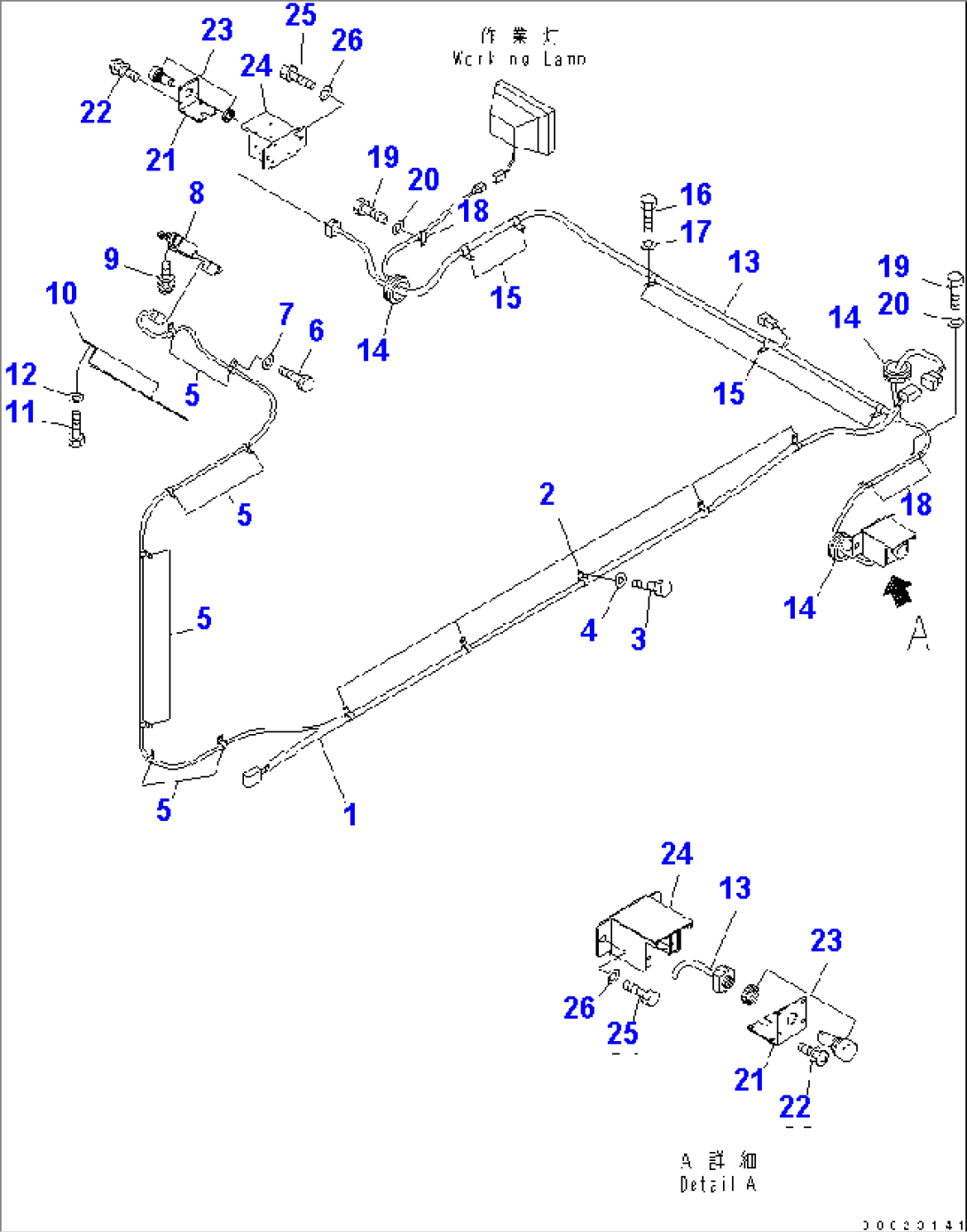

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8260-06-1561 | WIRING HARNESS | 2001- | |
| 2 | 04434-51412 | CLIP | 2001- | |
| 3 | 01010-81220 | BOLT | 2001- | |
| 4 | 01643-31232 | WASHER | 2001- | |
| 5 | 04434-51012 | CLIP | 2001- | |
| 6 | 01010-81220 | BOLT | 2001- | |
| 7 | 01643-31232 | WASHER | 2001- | |
| 8 | 8261-06-1150 | SWITCH | 2001- | |
| 9 | 01023-60435 | SCREW | 2001- | |
| 10 | 8260-06-1240 | COVER | 2001- | |
| 11 | 01010-81225 | BOLT | 2001- | |
| 12 | 01643-31232 | WASHER | 2001- | |
| 13 | 8260-06-1571 | WIRING HARNESS | 2001- | |
| 14 | 08037-05022 | GROMMET | 2001- | |
| 15 | 04434-51412 | CLIP | 2001- | |
| 16 | 01010-81220 | BOLT | 2001- | |
| 17 | 01643-31232 | WASHER | 2001- | |
| 18 | 04434-51012 | CLIP | 2001- | |
| 19 | 01010-81220 | BOLT | 2001- | |
| 20 | 01643-31232 | WASHER | 2001- | |
| 21 | 8253-06-1211 | PLATE | 2001- | |
| 22 | 01023-10412 | SCREW | 2001- | |
| 23 | 8221-06-1470 | SWITCH | 2001- | |
| 8221-06-1660 | CAP¤ RED | 2001- | ||
| 24 | 8253-06-1221 | BOX | 2001- | |
| 25 | 01010-81020 | BOLT | 2001- | |
| 26 | 01643-31032 | WASHER | 2001- |
