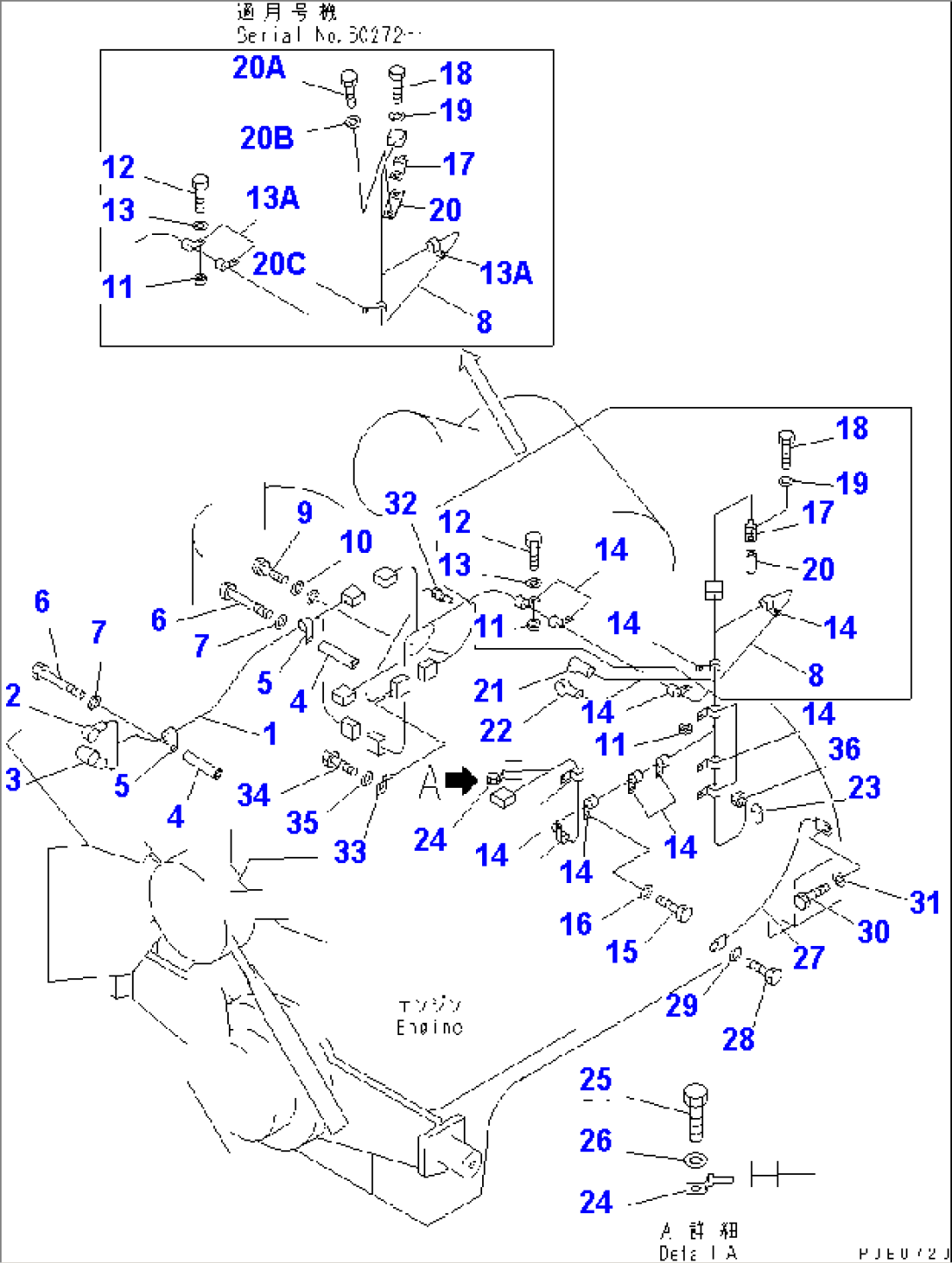

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-11551 | WIRING HARNESS | 60001- | |
| 2 | 08038-02027 | CAP | 60001- | |
| 3 | 140-06-18260 | CAP | 60001- | |
| 4 | 195-01-16420 | COLLAR | 60001- | |
| 5 | 130-Z79-1620 | CLIP | 60001- | |
| 6 | 01011-81015 | BOLT | 60001- | |
| 7 | 01643-31232 | WASHER | 60001- | |
| 8 | 17A-06-13222 | WIRING HARNESS | 60272- | |
| 8 | \0\17A-06-13221 | WIRING HARNESS | 60001-60271 | |
| 9 | 01010-81220 | BOLT | 60001- | |
| 10 | 01643-31232 | WASHER | 60001- | |
| 11 | 198-43-15310 | COLLAR, 10MM | 60001- | |
| 12 | 01010-81030 | BOLT | 60001- | |
| 13 | 01643-31032 | WASHER | 60001- | |
| 13A | 08036-01414 | CLIP | 60272- | |
| 14 | 08036-01014 | CLIP | 60272- | |
| 14 | 08036-01014 | CLIP | 60001-60271 | |
| 15 | 01010-81020 | BOLT | 60272- | |
| 15 | 01010-81020 | BOLT | 60001-60271 | |
| 16 | 01643-31032 | WASHER | 60272- | |
| 16 | 01643-31032 | WASHER | 60001-60271 | |
| 17 | 08053-00910 | CLIP | 60001- | |
| 18 | 01010-81070 | BOLT | 60001- | |
| 19 | 01643-31032 | WASHER | 60001- | |
| 20 | 17A-911-1521 | BRACKET | 60272- | |
| 20 | \0\22D-62-12440 | SPACER | 60001-60271 | |
| 20A | 01010-81035 | BOLT | 60272- | |
| 20B | 01643-31032 | WASHER | 60272- | |
| 20C | 08036-01414 | CLIP | 60272- | |
| 21 | 08038-00519 | CAP | 60001- | |
| 22 | 08038-02027 | CAP | 60001- | |
| 23 | 08038-00519 | CAP | 60001- | |
| 24 | 08053-01512 | CLIP | 60001- | |
| 25 | 01010-81020 | BOLT | 60001- | |
| 26 | 01643-31032 | WASHER | 60001- | |
| 27 | 175-06-51440 | WIRE | 60001- | |
| 28 | 01010-81020 | BOLT | 60001- | |
| 29 | 01643-31032 | WASHER | 60001- | |
| 30 | 01010-81020 | BOLT | 60001- | |
| 31 | 01643-31032 | WASHER | 60001- | |
| 32 | 7861-92-3320 | SENSOR,ENGINE WATER TEMPERATURE | 60001- | |
| 33 | 08053-01512 | CLIP | 60001- | |
| 34 | 01010-81020 | BOLT | 60001- | |
| 35 | 01643-31032 | WASHER | 60001- | |
| 36 | 08073-00505 | SWITCH,ENGINE OIL PRESSURE | 60001- |
