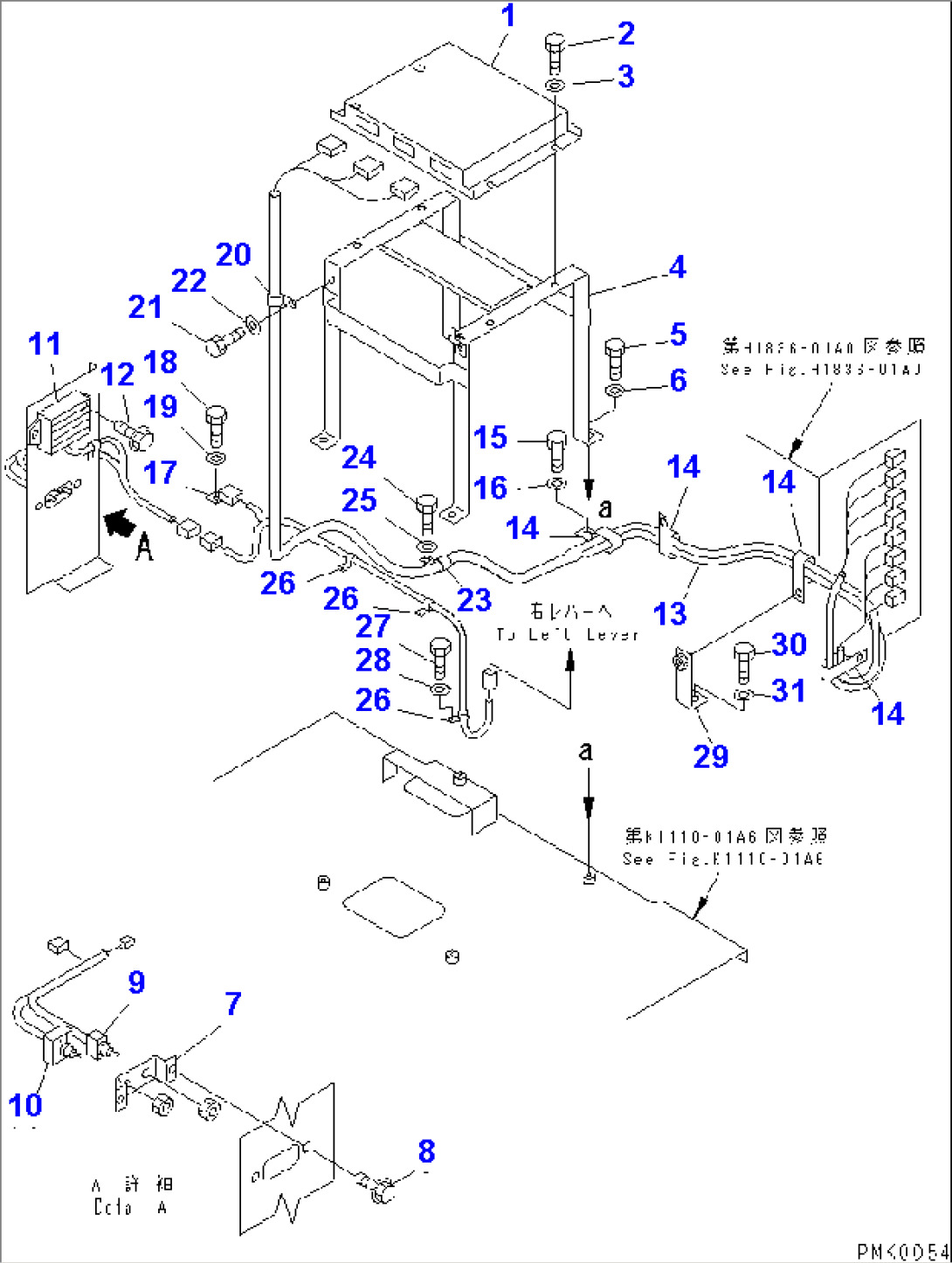

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7834-60-2003 | CONTROLLER | 50201-@ | |
| 2 | 01010-51025 | BOLT | 45001-56999 | |
| 3 | 01643-31032 | WASHER | 45001-@ | |
| 4 | 20Y-06-21631 | BRACKET | 52401-56999 | |
| 5 | 01010-51025 | BOLT | 52401-56999 | |
| 6 | 01643-31032 | WASHER | 52401-@ | |
| 7 | 20Y-06-23580 | PLATE | 45001-@ | |
| 8 | 01435-00616 | BOLT | 45001-@ | |
| 20Y-06-23590 | WIRING HARNESS | 45001-@ | ||
| 9 | 20Y-06-23350 | SWITCH | 45001-@ | |
| 10 | 20Y-06-24150 | SWITCH | 45001-@ | |
| 11 | 20Y-06-17270 | RESISTOR | 45001-@ | |
| 12 | 01435-00816 | BOLT | 45001-@ | |
| 13 | 203-06-61121 | WIRING HARNESS | 45001-56999 | |
| 14 | 421-07-11550 | CLIP | 45001-@ | |
| 15 | 01010-51220 | BOLT | 45001-56999 | |
| 16 | 01643-31232 | WASHER | 45001-@ | |
| 17 | 08053-01512 | CLIP | 45001-@ | |
| 18 | 01010-51225 | BOLT | 45001-56999 | |
| 19 | 01643-31232 | WASHER | 45001-@ | |
| 20 | 08035-03014 | CLIP | 45001-@ | |
| 21 | 01010-51225 | BOLT | 45001-56999 | |
| 22 | 01643-31232 | WASHER | 45001-@ | |
| 23 | 08036-01814 | CLIP | 45001-@ | |
| 24 | 01010-51225 | BOLT | 45001-56999 | |
| 25 | 01643-31232 | WASHER | 45001-@ | |
| 26 | 08036-01214 | CLIP | 45001-@ | |
| 27 | 01010-51225 | BOLT | 45001-56999 | |
| 28 | 01643-31232 | WASHER | 45001-@ | |
| 29 | 203-06-61730 | BRACKET | 45001-@ | |
| 30 | 01010-51225 | BOLT | 45001-56999 | |
| 31 | 01643-31232 | WASHER | 45001-@ |
