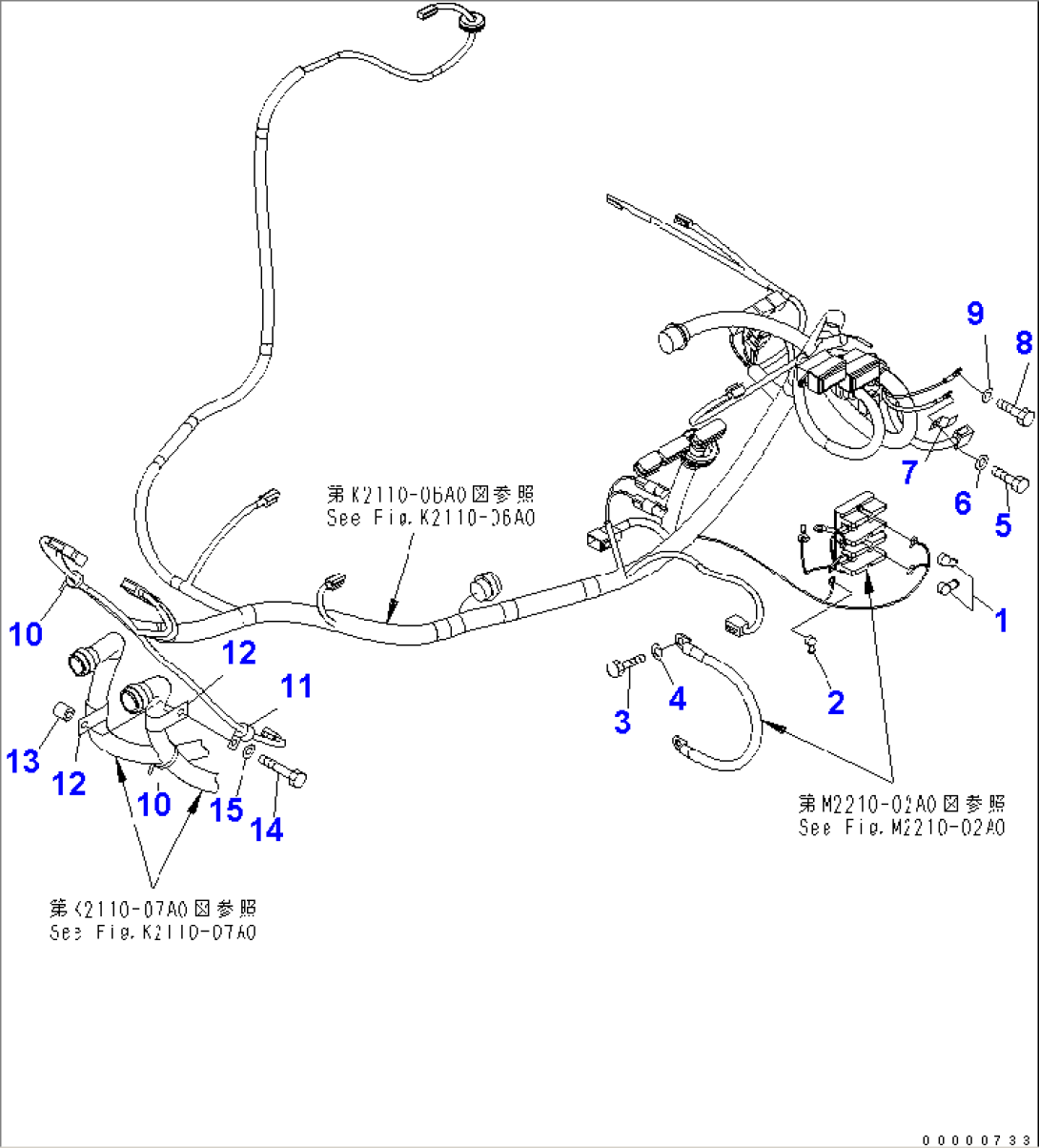

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08038-00525 | CAP | 10001-10138 | |
| 2 | 08038-00519 | CAP | 10001- | |
| 3 | 01010-81230 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 01010-81230 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 08193-21012 | CLIP | 10001- | |
| 8 | 01010-81230 | BOLT | 10001- | |
| 9 | 01643-31232 | WASHER | 10001- | |
| 10 | 08034-20536 | BAND | 10008- | |
| 10 | 08034-20519 | BAND | 10001-10007 | |
| 11 | 04434-51212 | CLIP | 10008- | |
| 11 | 04434-51012 | CLIP | 10001-10007 | |
| 12 | 04434-52512 | CLIP | 10008- | |
| 12 | 04434-51912 | CLIP | 10001-10007 | |
| 13 | 195-33-11220 | SPACER | 10001- | |
| 14 | 01010-81265 | BOLT | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- |
