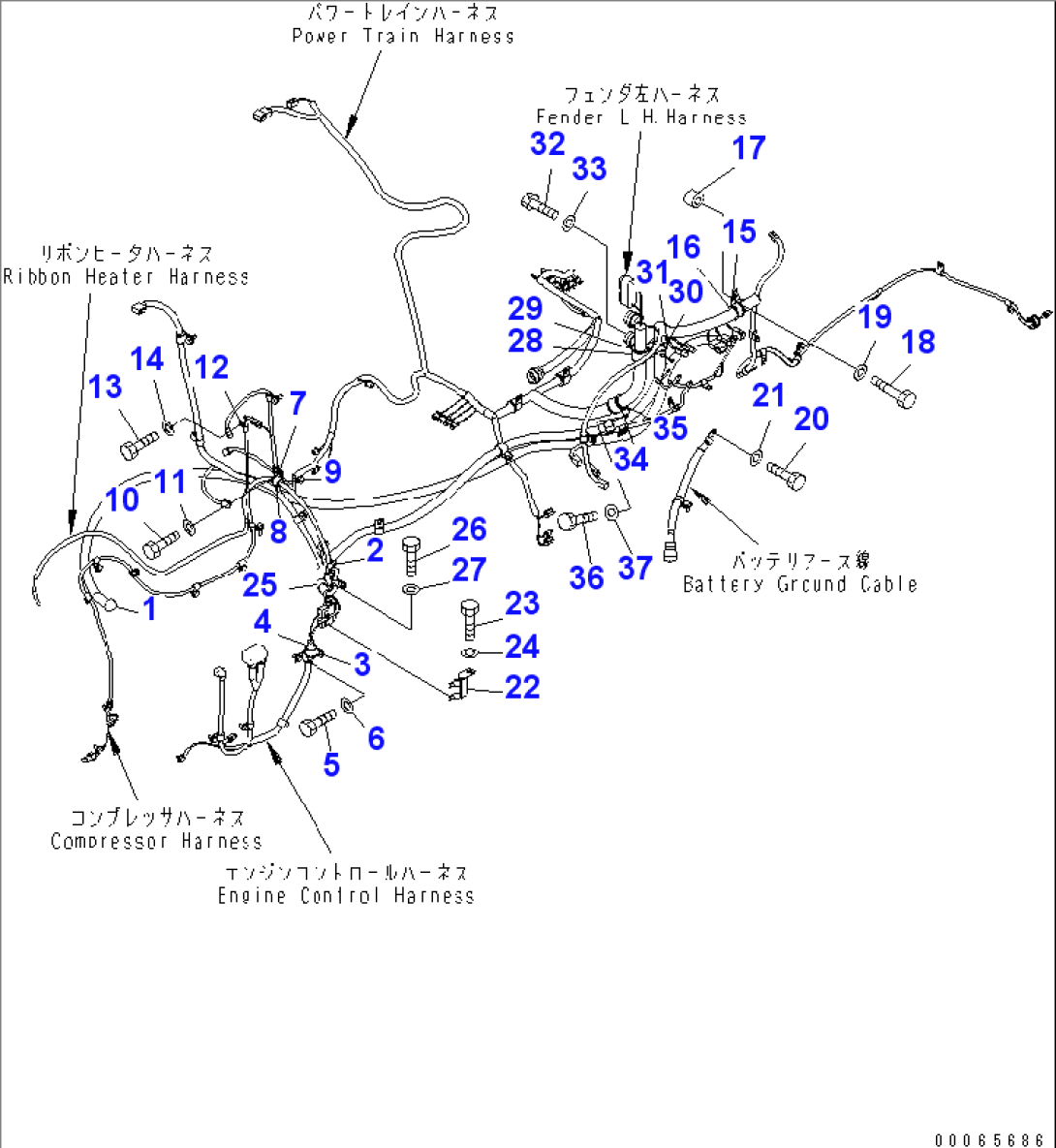

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-41540 | CAP | 85001- | |
| 2 | 08038-02027 | CAP | 85001- | |
| 3 | 04434-52712 | CLIP | 85001- | |
| 4 | 07095-20419 | CUSHION | 85001- | |
| 5 | 01010-81225 | BOLT | 85001- | |
| 6 | 01643-31232 | WASHER | 85001- | |
| 7 | 04434-51412 | CLIP | 85001- | |
| 8 | 04434-51912 | CLIP | 85001- | |
| 9 | 07095-20213 | CUSHION | 85001- | |
| 10 | 01010-81225 | BOLT | 85001- | |
| 11 | 01643-31232 | WASHER | 85001- | |
| 12 | 600-051-3100 | CLIP | 85001- | |
| 13 | 01010-81225 | BOLT | 85001- | |
| 14 | 01643-31232 | WASHER | 85001- | |
| 15 | 155-61-15350 | CLIP | 85001- | |
| 16 | 22M-62-13660 | CUSHION | 85001- | |
| 17 | 144-947-3490 | SPACER | 85001- | |
| 18 | 01010-81240 | BOLT | 85001- | |
| 19 | 01643-31232 | WASHER | 85001- | |
| 20 | 01010-81220 | BOLT | 85001- | |
| 21 | 01643-31232 | WASHER | 85001- | |
| 22 | 17A-06-41951 | BRACKET | 85001- | |
| 23 | 01010-81225 | BOLT | 85001- | |
| 24 | 01643-31232 | WASHER | 85001- | |
| 25 | 04434-52712 | CLIP | 85001- | |
| 26 | 01010-81225 | BOLT | 85001- | |
| 27 | 01643-31232 | WASHER | 85001- | |
| 28 | 23T-62-12160 | CLIP | 85001- | |
| 29 | 20T-62-71831 | CUSHION | 85001- | |
| 30 | 155-61-15350 | CLIP | 85001- | |
| 31 | 22M-62-13660 | CUSHION | 85001- | |
| 32 | 01010-81225 | BOLT | 85001- | |
| 33 | 01643-31232 | WASHER | 85001- | |
| 34 | 23T-62-12160 | CLIP | 85001- | |
| 35 | 20T-62-71831 | CUSHION | 85001- | |
| 36 | 01010-81225 | BOLT | 85001- | |
| 37 | 01643-31232 | WASHER | 85001- |
