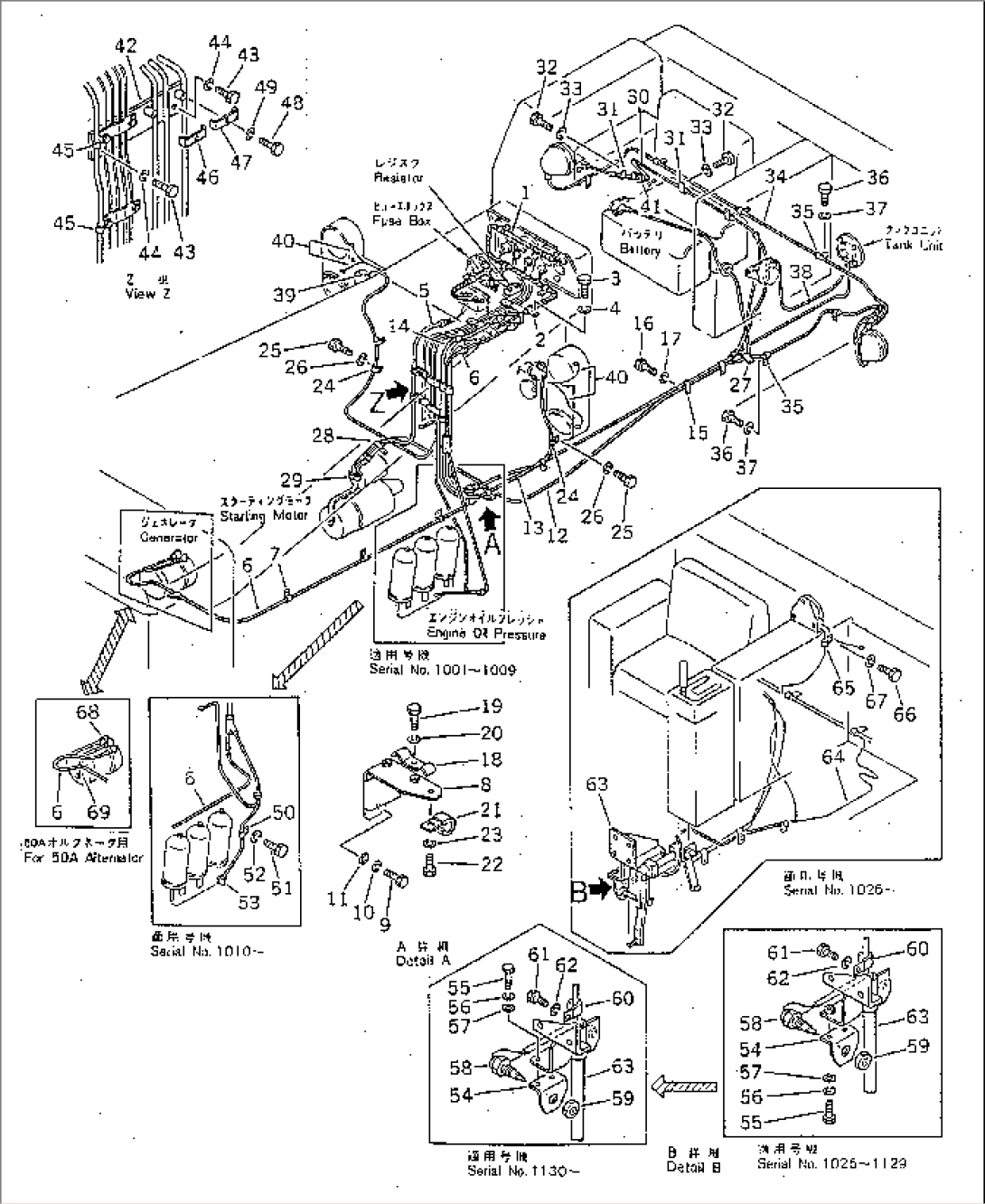

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 178-06-15470 | WIRE ASS'Y | | 1001- |
| 1 | 178-06-13170 | WIRE ASS'Y,(FOR 50A ALTERNATOR) | | 1026- |
| 2 | 08036-01214 | CLIP | | 1001- |
| 3 | 01010-31025 | BOLT | | 1001- |
| 4 | 01602-01030 | WASHER,SPRING | | 1001- |
| 5 | 178-06-15140 | WIRE ASS'Y | | 1001- |
| 6 | 178-06-12222 | WIRE ASS'Y | | 1026- |
| 6 | 178-06-15420 | WIRE ASS'Y | | 1001-1025 |
| 6 | 178-06-13180 | WIRE ASS'Y,(FOR 50A ALTERNATOR) | | 1026- |
| 7 | 08036-01414 | CLIP | | 1001- |
| 8 | 178-06-12530 | BRACKET | | 1001- |
| 9 | 01010-31225 | BOLT | | 1001- |
| 10 | 01602-01236 | WASHER,SPRING | | 1001- |
| 11 | 01640-21223 | WASHER | | 1001- |
| 12 | 178-06-15130 | WIRE ASS'Y | | 1001- |
| 13 | 178-06-12241 | WIRE ASS'Y | | 1026- |
| 13 | 178-06-15160 | WIRE ASS'Y | | 1001-1025 |
| 14 | 178-06-15170 | WIRE ASS'Y | | 1001- |
| 15 | 155-06-15180 | CLAMP | | 1001- |
| 16 | 01010-31225 | BOLT | | 1001- |
| 17 | 01602-01236 | WASHER,SPRING | | 1001- |
| 18 | 08039-03708 | CLAMP | | 1001- |
| 19 | 01010-31020 | BOLT | | 1001- |
| 20 | 01602-01030 | WASHER,SPRING | | 1001- |
| 21 | 154-06-33140 | CLAMP | | 1001- |
| 22 | 01010-31020 | BOLT | | 1001- |
| 23 | 01602-01030 | WASHER,SPRING | | 1001- |
| 24 | 08036-01414 | CLIP | | 1001- |
| 25 | 01010-31220 | BOLT | | 1001- |
| 26 | 01602-01236 | WASHER,SPRING | | 1001- |
| 27 | 154-06-33140 | CLAMP | | 1001- |
| 28 | 154-06-18250 | CLAMP | | 1001- |
| 29 | 140-06-18260 | CAP,RUBBER | | 1001- |
| 30 | 178-06-12322 | WIRE ASS'Y | | 1026- |
| 30 | 178-06-15210 | WIRE ASS'Y | | 1001-1025 |
| 31 | 08035-01508 | CLIP | | 1001- |
| 32 | 01010-30820 | BOLT | | 1001- |
| 33 | 01602-00825 | WASHER,SPRING | | 1001- |
| 34 | 178-06-15220 | WIRE ASS'Y | | 1001- |
| 35 | 08036-01414 | CLIP | | 1001- |
| 36 | 01010-31220 | BOLT | | 1001- |
| 37 | 01602-01236 | WASHER,SPRING | | 1001- |
| 38 | 178-06-15180 | WIRE | | 1001- |
| 39 | 178-06-15190 | WIRE,HORN | | 1001- |
| 40 | 178-06-12271 | WIRE,HEAD LAMP | | 1010- |
| 40 | 08128-00250 | WIRE,HEAD LAMP | | 1001-1009 |
| 41 | 08037-03614 | GROMMET | | 1010- |
| 42 | 178-06-12521 | PLATE | | 1001- |
| 43 | 01010-31225 | BOLT | | 1001- |
| 44 | 01602-01236 | WASHER,SPRING | | 1001- |
| 45 | 08035-03014 | CLIP | | 1001- |
| 46 | 08039-04612 | CLAMP | | 1001- |
| 47 | 08039-05015 | CLAMP | | 1001- |
| 48 | 01010-31225 | BOLT | | 1001- |
| 49 | 01602-01236 | WASHER,SPRING | | 1001- |
| 50 | 08036-00614 | CLIP | | 1010- |
| 51 | 01010-31220 | BOLT | | 1010- |
| 52 | 01602-01236 | WASHER,SPRING | | 1010- |
| 53 | 140-06-18260 | CAP | | 1010- |
| 54 | 178-06-12340 | BRACKET | | 1130- |
| 54 | \3\155-06-15220 | BRACKET | | 1026-1129 |
| | (178-06-12340,178-43-12132) | | |
| 55 | 01010-31025 | BOLT | | 1026- |
| 56 | 01602-01030 | WASHER,SPRING | | 1026- |
| 57 | 01643-31032 | WASHER | | 1026- |
| 58 | 08074-10000 | SWITCH | | 1026- |
| 59 | 01583-01811 | NUT | | 1026- |
| 60 | 08036-00610 | CLIP | | 1026- |
| 61 | 01010-31016 | BOLT | | 1026- |
| 62 | 01602-01030 | WASHER,SPRING | | 1026- |
| 63 | 178-43-12132 | BRACKET | | 1130- |
| 63 | 178-43-12131 | BRACKET | | 1026-1129 |
| 64 | 178-06-12280 | WIRE ASS'Y | | 1026- |
| 65 | 08036-00610 | CLIP | | 1026- |
| 66 | 01010-30816 | BOLT | | 1026- |
| 67 | 01602-00825 | WASHER,SPRING | | 1026- |
| 68 | 154-06-36830 | CONNECTOR,(FOR 50A ALTERNATOR) | | 1026- |
| 69 | 175-06-39760 | WIRE,(FOR 50A ALTERNATOR) | | 1026- |
