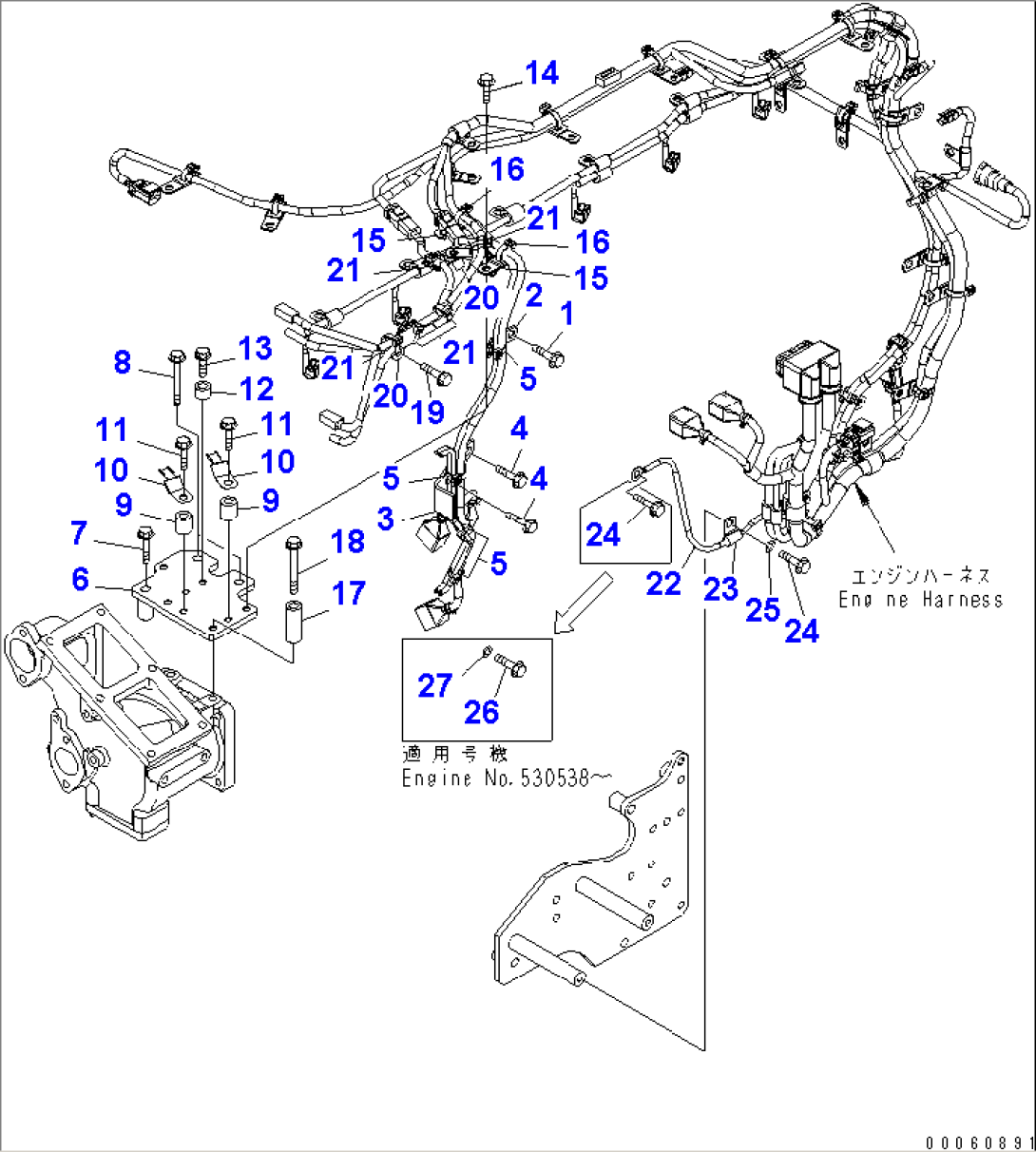

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01435-01020 | BOLT | 530008-@ | |
| 2 | 6218-81-8430 | CLAMP | 530008-@ | |
| 3 | 6261-81-8720 | BRACKET | 530008-@ | |
| 4 | 01435-01030 | BOLT | 530008-@ | |
| 5 | 6218-81-8490 | BAND | 530008-@ | |
| 6 | 6261-81-8230 | BRACKET | 530008-@ | |
| 7 | 01435-01060 | BOLT | 530008-@ | |
| 8 | 01435-01080 | BOLT | 530008-@ | |
| 9 | 144-874-7470 | BOSS | 530008-@ | |
| 10 | 08193-20010 | CLIP | 530008-@ | |
| 11 | 01435-01040 | BOLT | 530008-@ | |
| 12 | 6206-11-4590 | SPACER | 530008-@ | |
| 13 | 01435-01030 | BOLT | 530008-@ | |
| 14 | 01435-01016 | BOLT | 530008-@ | |
| 15 | 6218-81-8430 | CLAMP | 530008-@ | |
| 16 | 6218-81-8490 | BAND | 530008-@ | |
| 17 | 6164-91-6290 | SPACER | 530008-@ | |
| 18 | 01435-01075 | BOLT | 530008-@ | |
| 19 | 01435-01030 | BOLT | 530008-@ | |
| 20 | 6218-81-8430 | CLAMP | 530008-@ | |
| 21 | 6218-81-8490 | BAND | 530008-@ | |
| 22 | 6261-81-8560 | WIRING HARNESS | 530008-@ | |
| 23 | 600-051-2060 | CLIP | 530008-@ | |
| 24 | 01435-01016 | BOLT | 530538-@ | |
| 24 | 01435-01016 | BOLT | 530008-530537 | |
| 25 | 01643-31032 | WASHER | 530008-@ | |
| 26 | 01435-01020 | BOLT | 530538-@ | |
| 27 | 01643-31032 | WASHER | 530538-@ |
