| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8255-06-4931 | WIRING HARNESS | 1001- | |
| 2 | 04434-51012 | CLIP | 1001- | |
| 3 | 01010-81225 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 08193-21012 | CLIP | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- |
- Главная
- Каталог запчастей
- Мобильные дробилки и ресайклеры
- Bz210 1 s/n 1001 up (overseas version)
- Electrical system
- Wiring harness (5/6) (add. emergency stop switch)
Поиск по каталогу

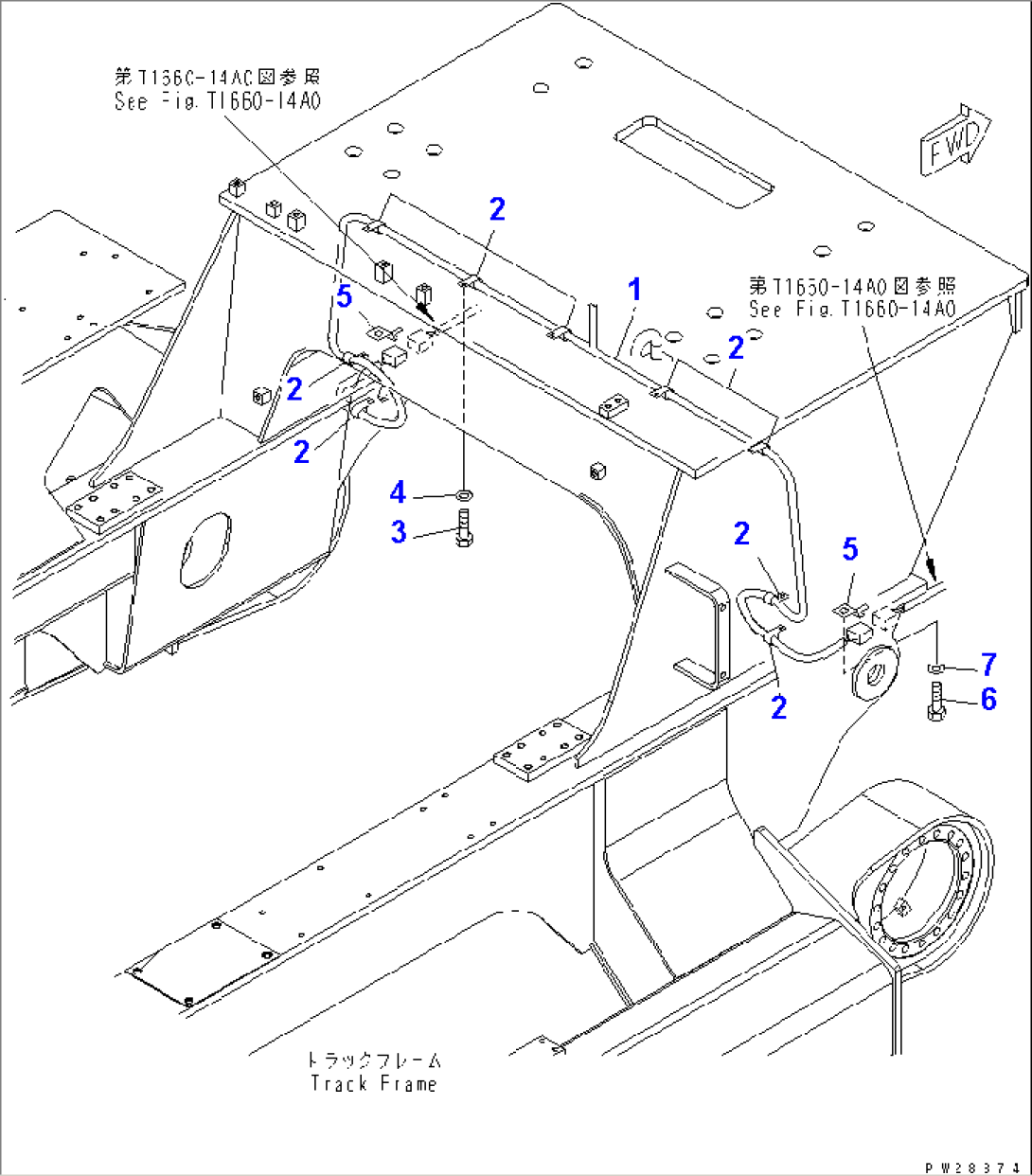

WIRING HARNESS (5/6) (ADD. EMERGENCY STOP SWITCH)
