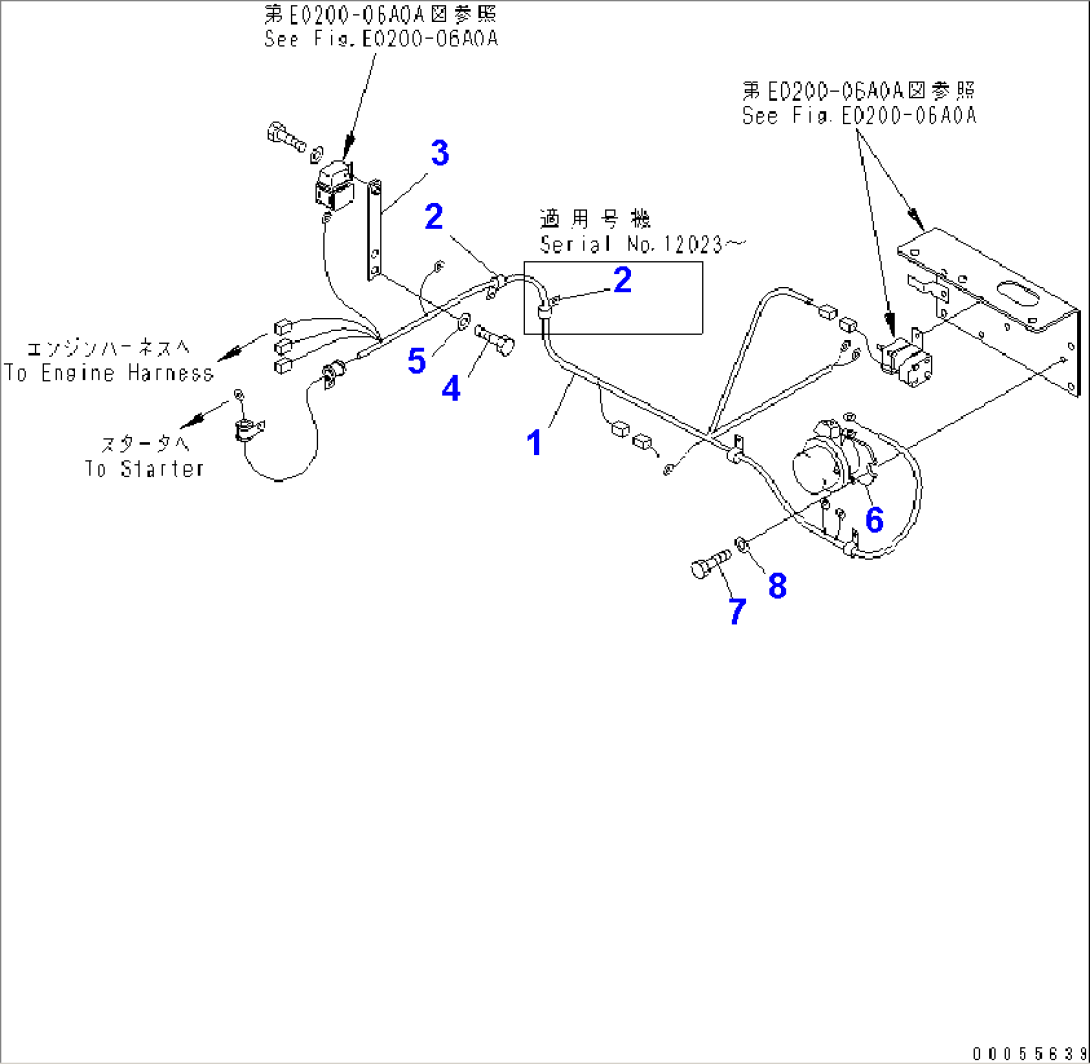

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-06-22452 | WIRING HARNESS | 12023-@ | |
| 1 | 415-06-22451 | WIRING HARNESS | 12001-12022 | |
| 2 | 08030-01508 | TERMINAL | 12023-@ | |
| 2 | 04434-52310 | CLIP | 12001-12022 | |
| 3 | 415-06-22531 | BRACKET | 12001-12022 | |
| 4 | 01010-81016 | BOLT | 12001-12022 | |
| 5 | 01643-31032 | WASHER | 12001-@ | |
| 6 | 08088-30000 | SWITCH,BATTERY RELAY | 12001-12151 | |
| 7 | 01010-80830 | BOLT | 12001-12151 | |
| 8 | 01643-30823 | WASHER | 12001-12151 |
