| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52310 | CLIP | 13223- | |
| 1 | 04434-52310 | CLIP | 12001-13222 | |
| 2 | 01010-81020 | BOLT | 13223- | |
| 3 | 01643-31032 | WASHER | 13223- | |
| 4 | 415-06-22531 | BRACKET | 12001- | |
| 5 | 01010-81016 | BOLT | 12001- | |
| 6 | 01643-31032 | WASHER | 12001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa80 3 s/n 10001 up (canopy spec.)
- Electrical system
- Wiring harness (rear line)(#12152 )
Поиск по каталогу

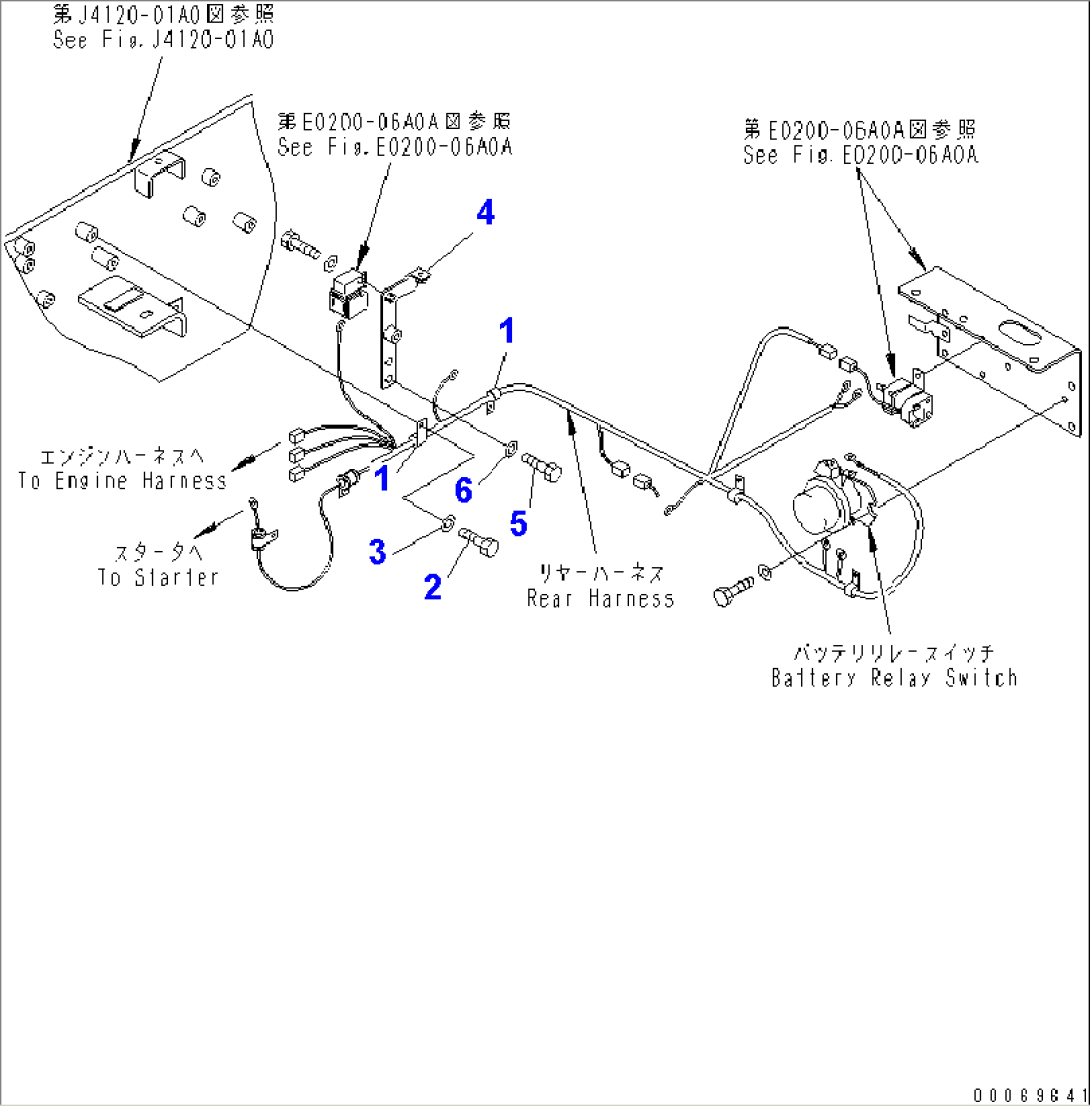

WIRING HARNESS (REAR LINE)(#12152-)
