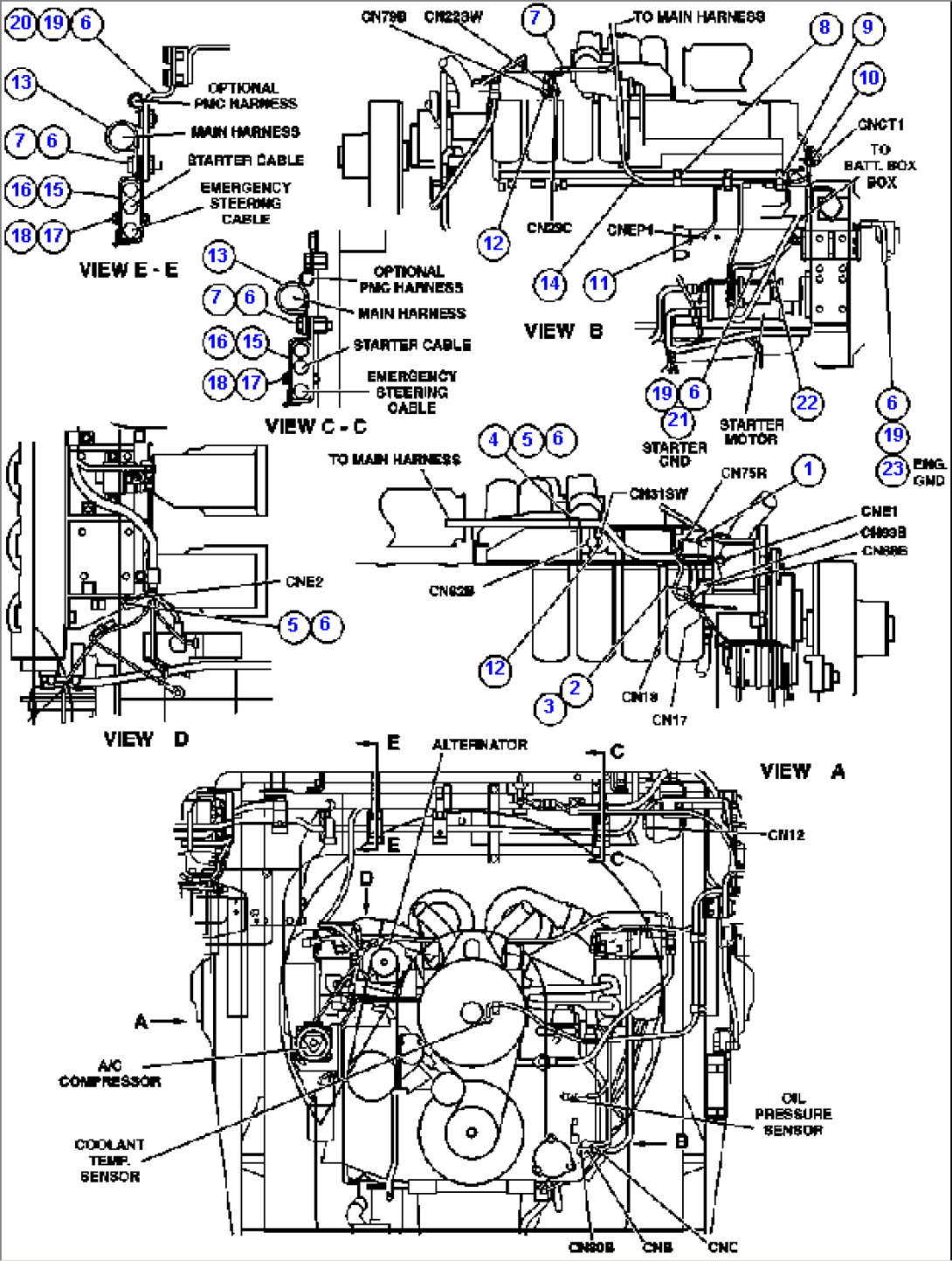

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-2730 | CABLE, ALTERNATOR (JUMPER) | | |
| 2 | 421-06-11970 | DIODE | | |
| 3 | 08034-00414 | TYRAP | | |
| 4 | 08036-01814 | CLAMP, VINYL | | |
| 5 | 01010-81016 | CAPSCREW | | |
| 6 | 01643-31032 | FLAT WASHER - M10 | | |
| 7 | 08036-01414 | CLAMP, VINYL | | |
| 8 | 08036-02514 | CLAMP, VINYL | | |
| 9 | 08036-01214 | CLAMP, VINYL | | |
| 10 | | SENSOR, COOLANT TEMP (SEE ENGINE SECTION) | | |
| 11 | | SENSOR, OIL PRESSURE (SEE ENGINE SECTION) | | |
| 12 | 600-815-2690 | RELAY, RIBBON HEATERS | | |
| 13 | 04434-53411 | CLAMP, VINYL | | |
| 14 | 561-06-74420 | HARNESS, L.H. ENGINE | | |
| 15 | 561-06-63470 | BLOCK, RUBBER (2 PER CLAMP) | | |
| 16 | 561-06-63381 | CLAMP, RUBBER BLOCK | | |
| 17 | 01643-30623 | FLAT WASHER - M6 | | |
| 18 | 01010-80640 | CAPSCREW | | |
| 19 | 01010-81020 | CAPSCREW | | |
| 20 | 561-06-63450 | BRACKET | | |
| 21 | 08028-46055 | CABLE, GROUND | | |
| 22 | EH0100 | CABLE, STARTER TO BATTERY RELAY | | |
| 23 | 565-06-11641 | CABLE, GROUND | | |
| NS|24 | | NOTE: NS = NOT SHOWN | | |
| NS|25 | EH0097 | WIRE, STARTER SAFETY RELAY JUMPER | | |
