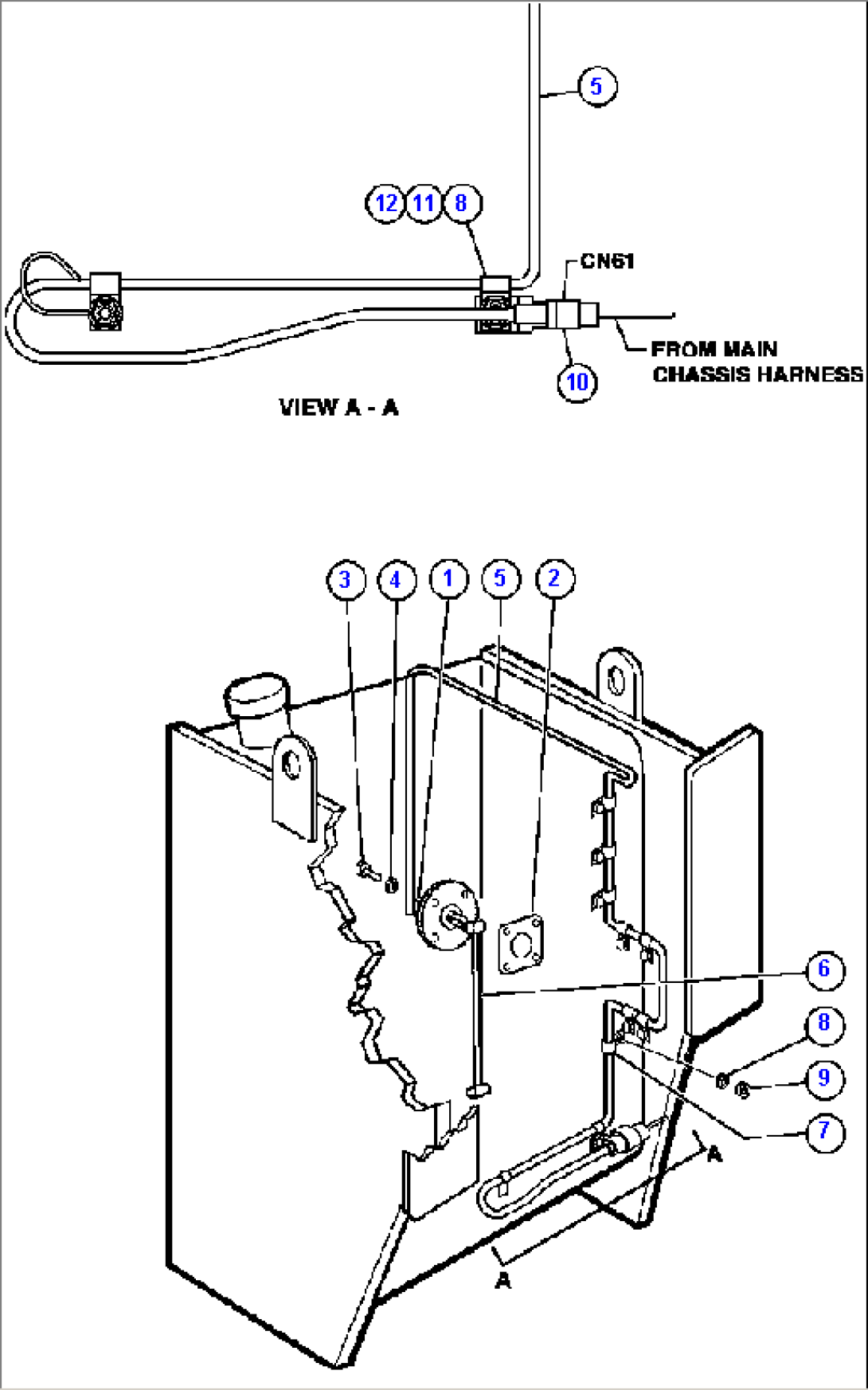

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0316 | DIAL, FUEL GAUGE | ||
| 2 | VW1231 | GASKET | ||
| 3 | S5315 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 4 | CC6807 | LOCKWASHER - 1/4" | ||
| 5 | 561-06-A1341 | HARNESS, FUEL GAUGE | ||
| 6 | PC0317 | GAUGE, FUEL | ||
| 7 | VN9913 | CLAMP, VINYL | ||
| 8 | 01643-31032 | FLAT WASHER | ||
| 9 | MM0693 | LOCKNUT - M10 X 1.50 | ||
| 10 | 08053-01512 | CLIP, CONNECTOR | ||
| 11 | 01010-81016 | CAPSCREW | ||
| 12 | TG2562 | CLAMP, VINYL |
