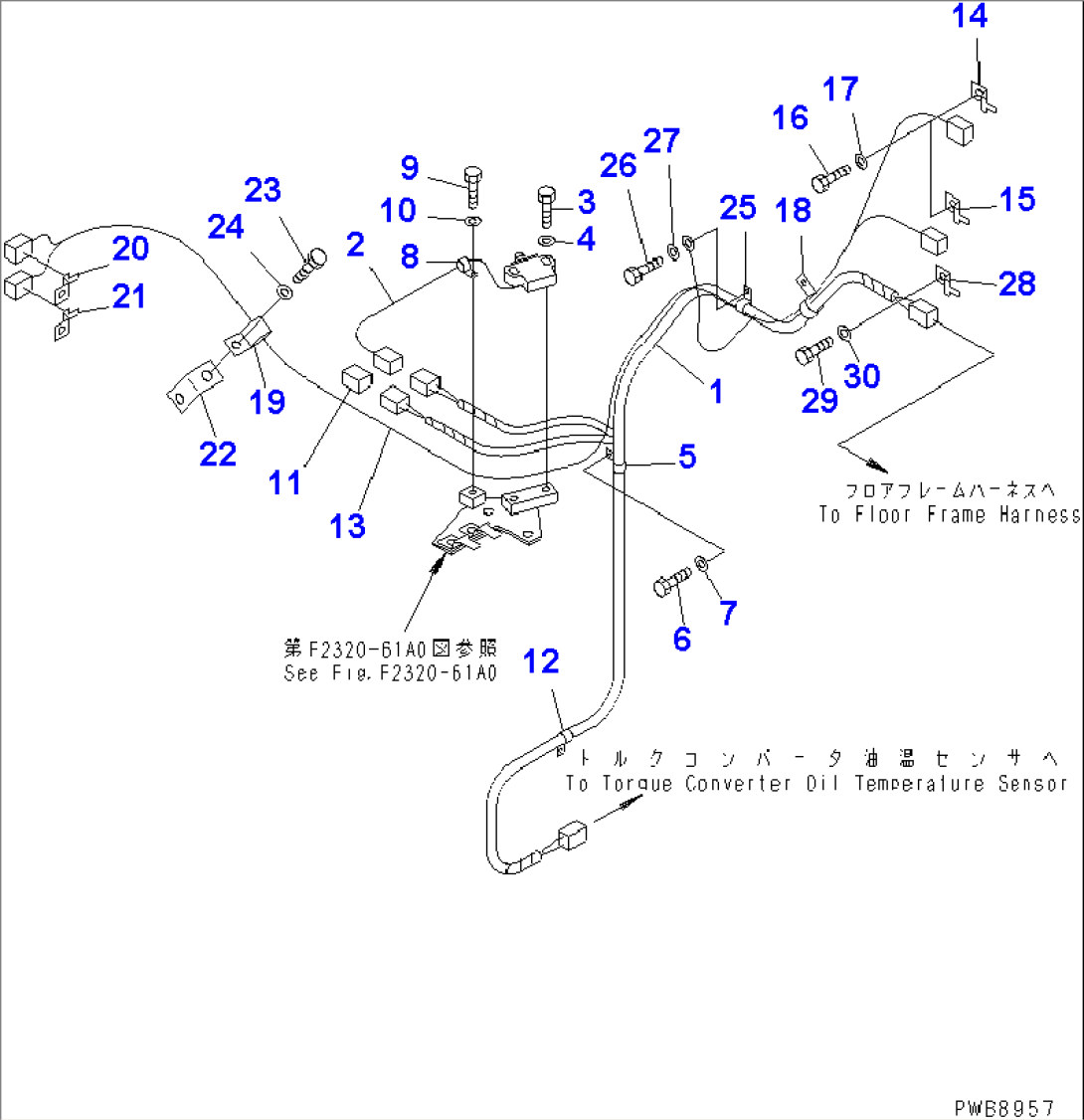

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-13251 | WIRING HARNESS | 60001- | |
| 2 | 17A-06-12420 | SWITCH,BACK-UP ALARM | 60004- | |
| 3 | 01010-81030 | BOLT | 60001- | |
| 4 | 01643-31032 | WASHER | 60001- | |
| 5 | 08036-01414 | CLIP | 60001- | |
| 6 | 01010-81220 | BOLT | 60001- | |
| 7 | 01643-31232 | WASHER | 60001- | |
| 8 | 21T-38-12270 | CLIP | 60001- | |
| 9 | 01010-81220 | BOLT | 60001- | |
| 10 | 01643-31232 | WASHER | 60001- | |
| 11 | 195-06-46280 | CONNECTOR ASS'Y | 60001- | |
| 12 | 08036-01414 | CLIP | 60004- | |
| 13 | 17A-06-21230 | WIRING HARNESS | 60001- | |
| 14 | 08053-01512 | CLIP | 60001- | |
| 15 | 08053-00912 | CLIP | 60001- | |
| 16 | 01010-81220 | BOLT | 60001- | |
| 17 | 01643-31232 | WASHER | 60001- | |
| 18 | 04434-51412 | CLIP | 60001- | |
| 19 | 04434-51410 | CLIP | 60001- | |
| 20 | 08053-00912 | CLIP | 60001- | |
| 21 | 08053-01512 | CLIP | 60001- | |
| 22 | 17M-49-15260 | BRACKET | 60001- | |
| 23 | 01010-81220 | BOLT | 60001- | |
| 24 | 01643-31232 | WASHER | 60001- | |
| 25 | 08036-01414 | CLIP | 60001- | |
| 26 | 01010-81220 | BOLT | 60001- | |
| 27 | 01643-31232 | WASHER | 60001- | |
| 28 | 08053-00912 | CLIP | 60001- | |
| 29 | 01010-81220 | BOLT | 60001- | |
| 30 | 01643-31232 | WASHER | 60001- |
