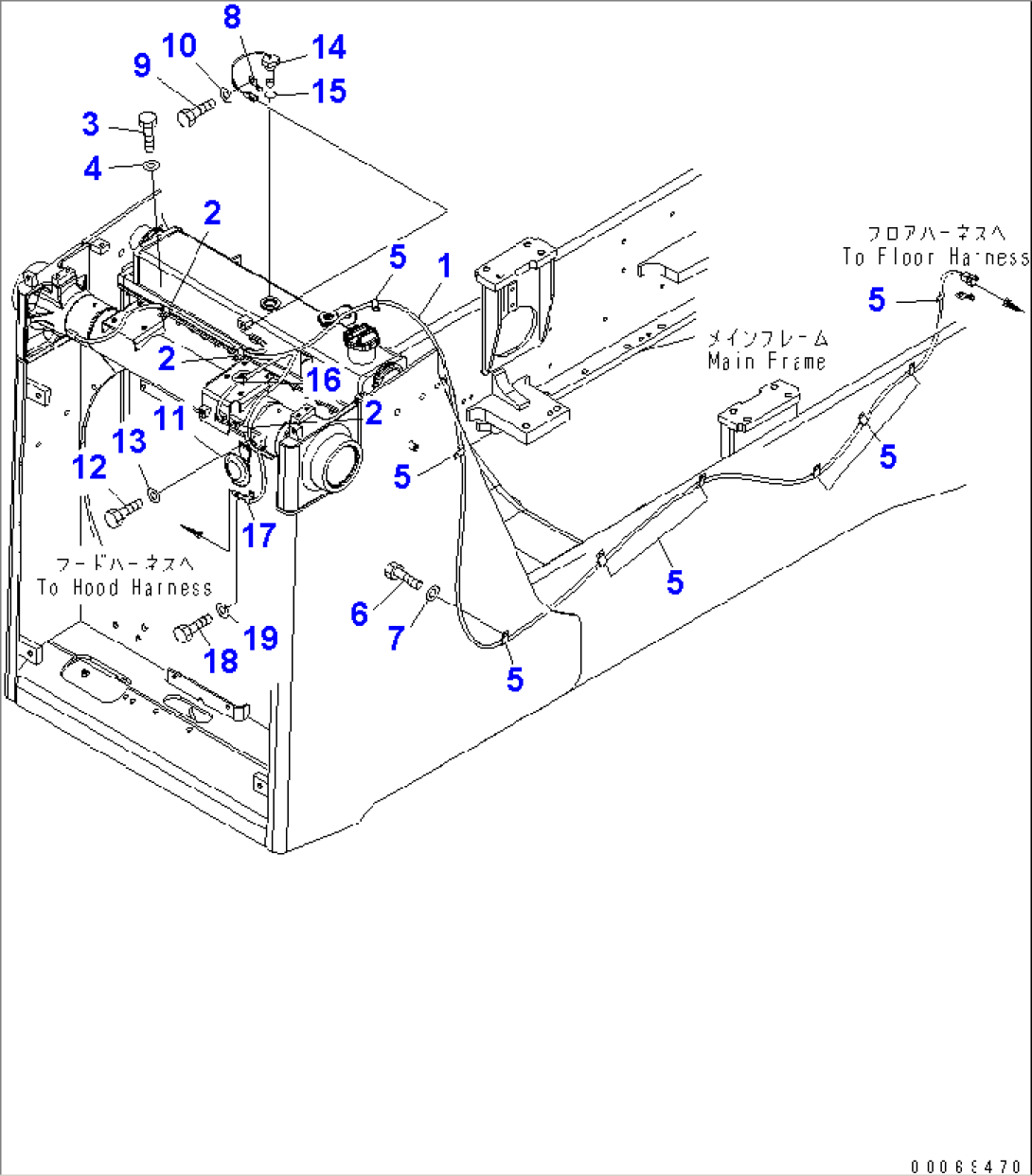

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-71131 | WIRING HARNESS | 10001-10579 | |
| 2 | 04434-51012 | CLIP | 10001-@ | |
| 3 | 01010-81230 | BOLT | 10001-@ | |
| 4 | 01643-31232 | WASHER | 10001-@ | |
| 5 | 04434-51412 | CLIP | 10001-@ | |
| 6 | 01010-81230 | BOLT | 10001-@ | |
| 7 | 01643-31232 | WASHER | 10001-@ | |
| 8 | 08193-21012 | CLIP | 10001-@ | |
| 9 | 01010-81230 | BOLT | 10001-@ | |
| 10 | 01643-31232 | WASHER | 10001-@ | |
| 11 | 175-06-41110 | HORN | 10001-10579 | |
| 12 | 01010-80816 | BOLT | 10001-10579 | |
| 13 | 01643-30823 | WASHER | 10001-@ | |
| 14 | 7861-93-4520 | SENSOR,WATER LEVEL | 10001-@ | |
| 15 | 07002-13634 | O-RING | 10001-@ | |
| 16 | 08034-20519 | BAND | 10001-@ | |
| 17 | 04434-51012 | CLIP | 10001-@ | |
| 18 | 01010-81230 | BOLT | 10001-@ | |
| 19 | 01643-31232 | WASHER | 10001-@ |
