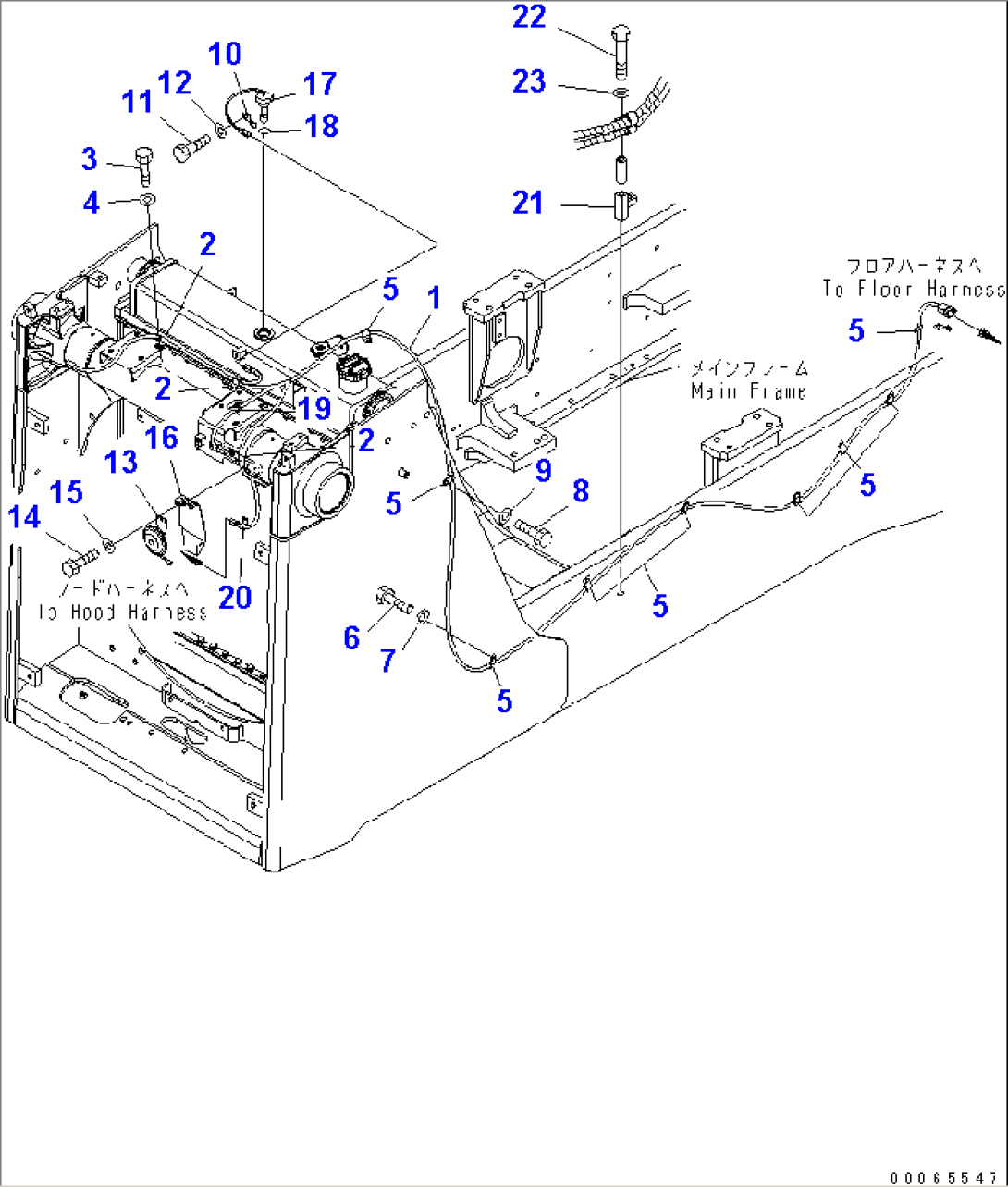

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-74282 | WIRING HARNESS | 1205- | |
| 2 | 04434-51012 | CLIP | 1201- | |
| 3 | 01010-81230 | BOLT | 1201- | |
| 4 | 01643-31232 | WASHER | 1201- | |
| 5 | 04434-51412 | CLIP | 1205- | |
| 6 | 01010-81230 | BOLT | 1205- | |
| 7 | 01643-31232 | WASHER | 1205- | |
| 8 | 01010-81220 | BOLT | 1205- | |
| 9 | 01643-31232 | WASHER | 1205- | |
| 10 | 08193-21012 | CLIP | 1201- | |
| 11 | 01010-81230 | BOLT | 1201- | |
| 12 | 01643-31232 | WASHER | 1201- | |
| 13 | 19M-06-18220 | HORN | 1216- | |
| 14 | 01010-80825 | BOLT | 1216- | |
| 15 | 01643-30823 | WASHER | 1201- | |
| 16 | 11Y-06-11731 | BRACKET | 1216- | |
| 17 | 7861-93-4520 | SENSOR | 1201- | |
| 18 | 07002-13634 | O-RING | 1201- | |
| 19 | 08034-20519 | BAND | 1201- | |
| 20 | 04434-51008 | CLIP | 1201- | |
| 21 | 154-911-7690 | SPACER | 1206- | |
| 22 | 01011-81215 | BOLT | 1206- | |
| 23 | 01643-31232 | WASHER | 1206- |
