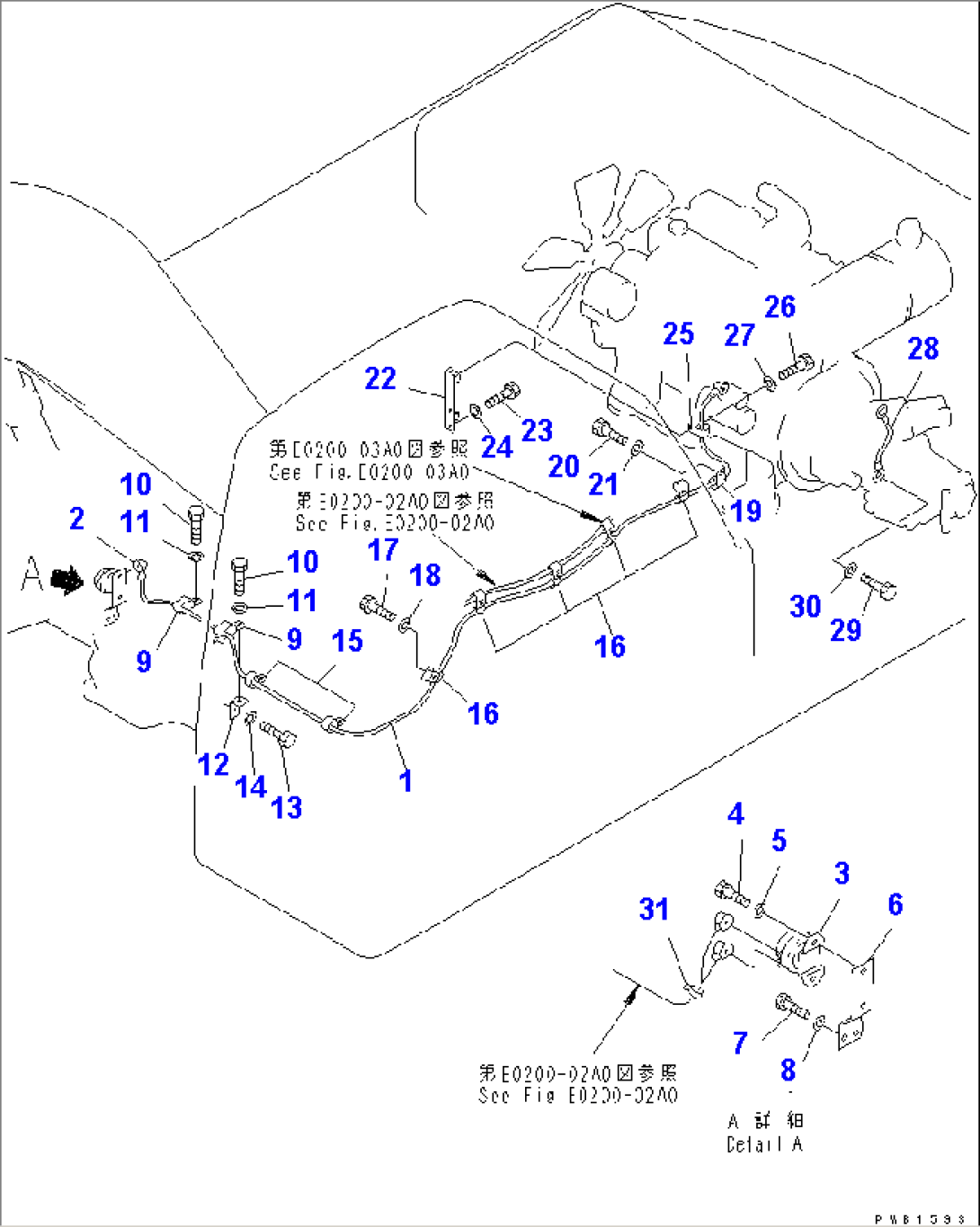

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-06-61160 | WIRE | 30001-@ | |
| 2 | 08038-06031 | CAP | 30001-@ | |
| 3 | 08088-30000 | SWITCH | 30001-@ | |
| 4 | 01010-80830 | BOLT | 30734-@ | |
| 01010-50830 | BOLT | 30001-30733 | ||
| 5 | 01643-30823 | WASHER | 30001-@ | |
| 6 | 207-06-61480 | BRACKET | 30001-@ | |
| 7 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 8 | 01643-31232 | WASHER | 30001-@ | |
| 9 | 209-06-12190 | CLIP | 30040-@ | |
| 208-04-38110 | CLIP | 30001-30039 | ||
| 10 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 11 | 01643-31232 | WASHER | 30001-@ | |
| 12 | 17M-49-15260 | BRACKET | 30001-@ | |
| 13 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 14 | 01643-31232 | WASHER | 30001-@ | |
| 15 | 208-06-19170 | CLIP | 30001-@ | |
| 16 | 08036-01814 | CLIP | 30001-32999 | |
| 17 | 01010-81225 | BOLT | 30734-32999 | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 18 | 01643-31232 | WASHER | 30001-32999 | |
| 19 | 113-899-7950 | CLIP | 30001-@ | |
| 20 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 21 | 01643-31232 | WASHER | 30001-@ | |
| 22 | 208-06-51370 | BRACKET | 30001-@ | |
| 23 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 24 | 01643-31232 | WASHER | 30001-@ | |
| 25 | 08036-01814 | CLIP | 30001-@ | |
| 26 | 01010-81225 | BOLT | 30734-@ | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 27 | 01643-31232 | WASHER | 30001-@ | |
| 28 | 08028-44035 | CABLE | 30001-@ | |
| 29 | 01010-51020 | BOLT | 30001-@ | |
| 30 | 01643-31032 | WASHER | 30001-@ | |
| 31 | 08034-00519 | BAND | 30001-@ |
