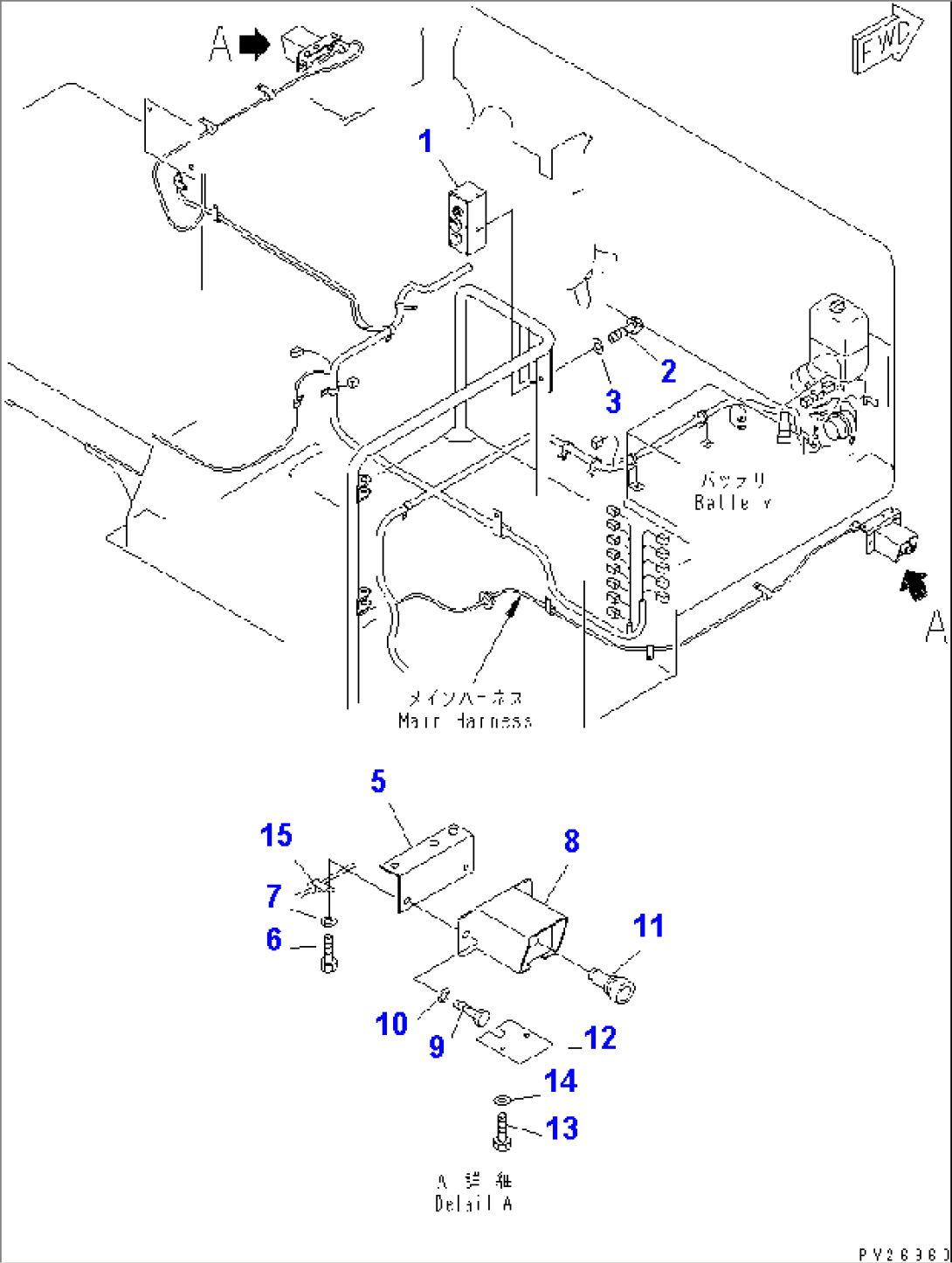

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8288-06-1400 | BOX | 1001- | |
| 2 | 01010-81025 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 5 | 8255-06-1740 | PLATE | 1001- | |
| 6 | 01010-81020 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 8255-06-1760 | BOX | 1001- | |
| 9 | 01010-81020 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 8221-06-1470 | SWITCH | 1001- | |
| 8221-06-1660 | CAP¤ RED | 1001- | ||
| 12 | 8253-06-1210 | PLATE | 1001- | |
| 13 | 01010-80620 | BOLT | 1001- | |
| 14 | 01643-30623 | WASHER | 1001- | |
| 15 | 08036-01014 | CLIP | 1001- |
