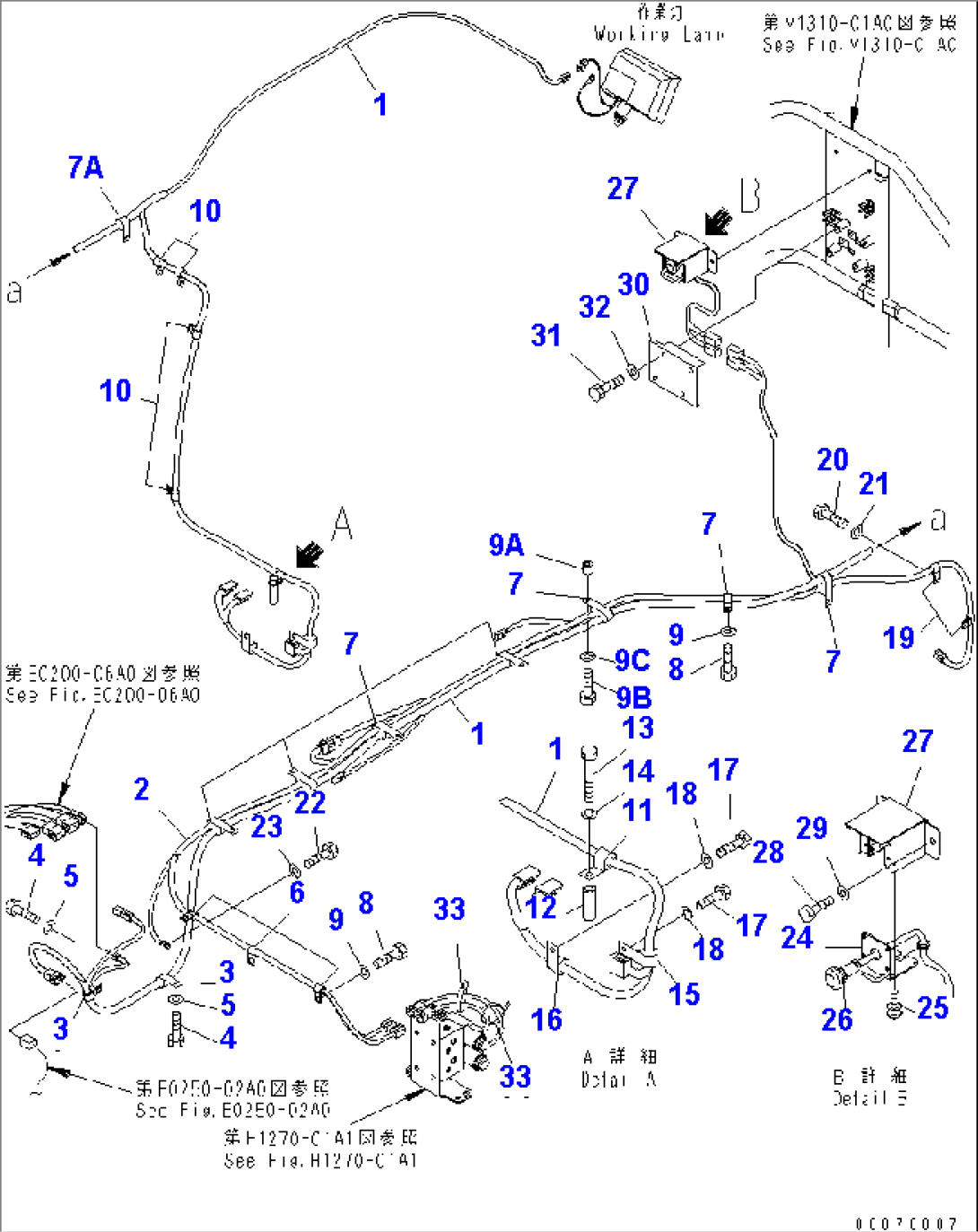

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-06-4131 | WIRING HARNESS | 2001-@ | |
| 1 | 20Y-62-22810 | BAND, YELLOW | 2001-@ | |
| 2 | 8240-06-4481 | WIRING HARNESS | 2001-@ | |
| 3 | 04434-51912 | CLIP | 2018-@ | |
| 4 | 01010-81225 | BOLT | 2001-@ | |
| 5 | 01643-31232 | WASHER | 2001-@ | |
| 6 | 04434-51012 | CLIP | 2001-@ | |
| 7 | 04435-51512 | CLIP | 2001-2582 | |
| 7A | 04434-51712 | CLIP | 2001-@ | |
| 8 | 01010-81225 | BOLT | 2001-2582 | |
| 9 | 01643-31232 | WASHER | 2001-2582 | |
| 9A | 195-33-11220 | SPACER | 2001-2582 | |
| 9B | 01010-81250 | BOLT | 2001-2582 | |
| 9C | 01643-31232 | WASHER | 2001-2582 | |
| 10 | 04434-51712 | CLIP | 2001-@ | |
| 11 | 04434-51712 | CLIP | 2001-@ | |
| 12 | 175-61-17240 | COLLAR | 2001-@ | |
| 13 | 01010-81285 | BOLT | 2001-@ | |
| 14 | 01643-31232 | WASHER | 2001-@ | |
| 15 | 04434-51712 | CLIP | 2001-@ | |
| 16 | 04434-51412 | CLIP | 2001-@ | |
| 17 | 01010-81225 | BOLT | 2001-@ | |
| 18 | 01643-31232 | WASHER | 2001-@ | |
| 19 | 04434-51412 | CLIP | 2001-@ | |
| 20 | 01010-81225 | BOLT | 2001-@ | |
| 21 | 01643-31232 | WASHER | 2001-@ | |
| 22 | 01010-81220 | BOLT | 2001-@ | |
| 23 | 01643-31232 | WASHER | 2001-@ | |
| 24 | 8240-06-1410 | COVER | 2001-@ | |
| 25 | 01023-10412 | SCREW | 2001-@ | |
| 26 | 8240-06-1450 | SWITCH | 2001-@ | |
| 26 | 8221-06-1661 | CAP, RED | 2001-@ | |
| 27 | 8253-06-1221 | BOX | 2001-@ | |
| 28 | 01010-81020 | BOLT | 2001-@ | |
| 29 | 01643-31032 | WASHER | 2001-@ | |
| 30 | 8240-06-1390 | COVER | 2001-@ | |
| 31 | 01010-81020 | BOLT | 2001-@ | |
| 32 | 01643-31032 | WASHER | 2001-@ | |
| 33 | 08034-20414 | BAND | 2099-@ |
