| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-25310 | WORKING LAMP ASS'Y | 10585- | |
| 1 | 20Y-06-21480 | WORKING LAMP ASS'Y | 10001-10584 | |
| 1 | 421-06-23330 | BULB, 70W | 10585- | |
| 2 | 01010-81220 | BOLT | 10044- | |
| 2 | 01010-51220 | BOLT | 10001-10043 | |
| 3 | 01643-31232 | WASHER | 10001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc228uu 1 s/n 10001 up (for new zealand)
- Electrical system
- Wiring (working lamp¤ front)
Поиск по каталогу

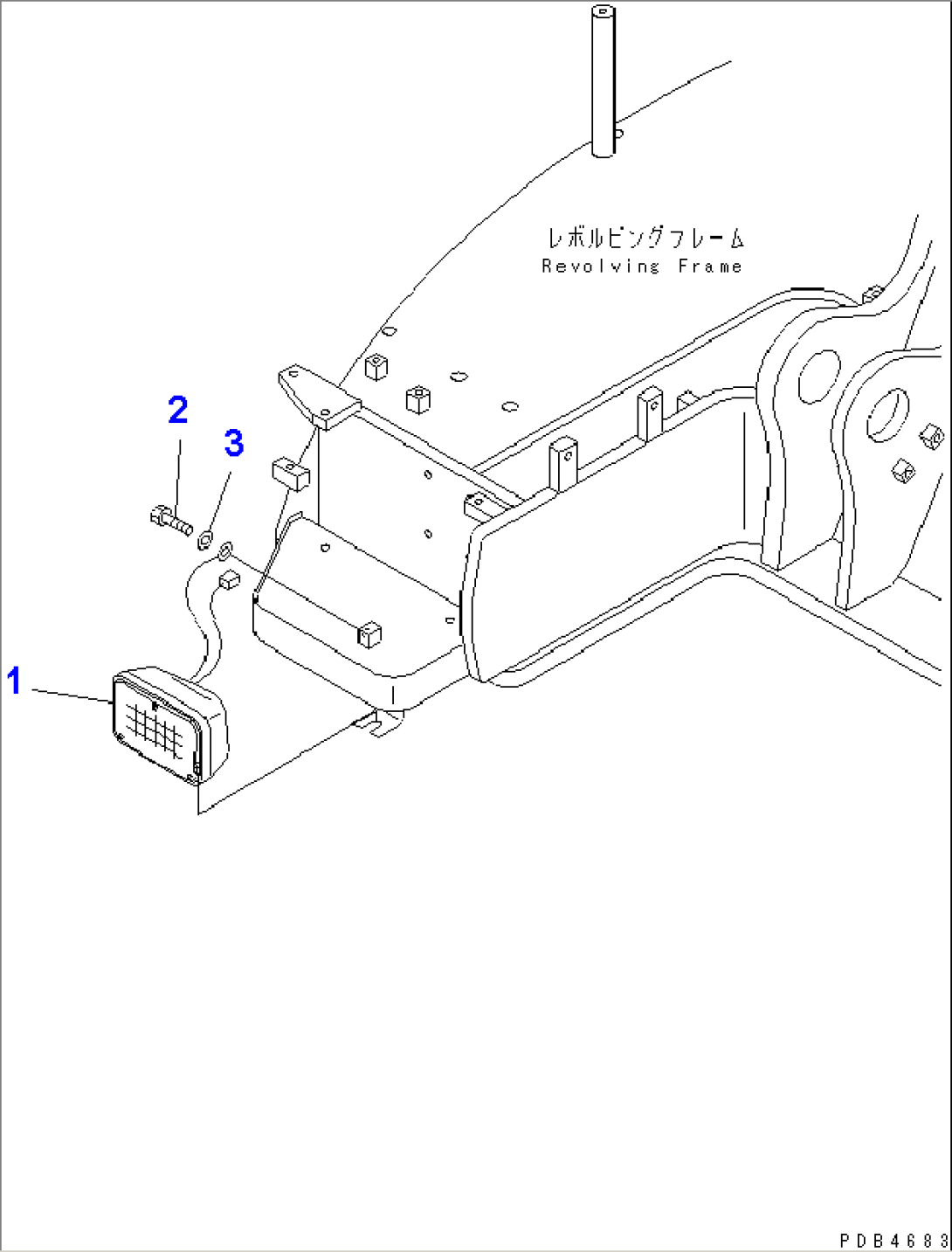

WIRING (WORKING LAMP¤ FRONT)
