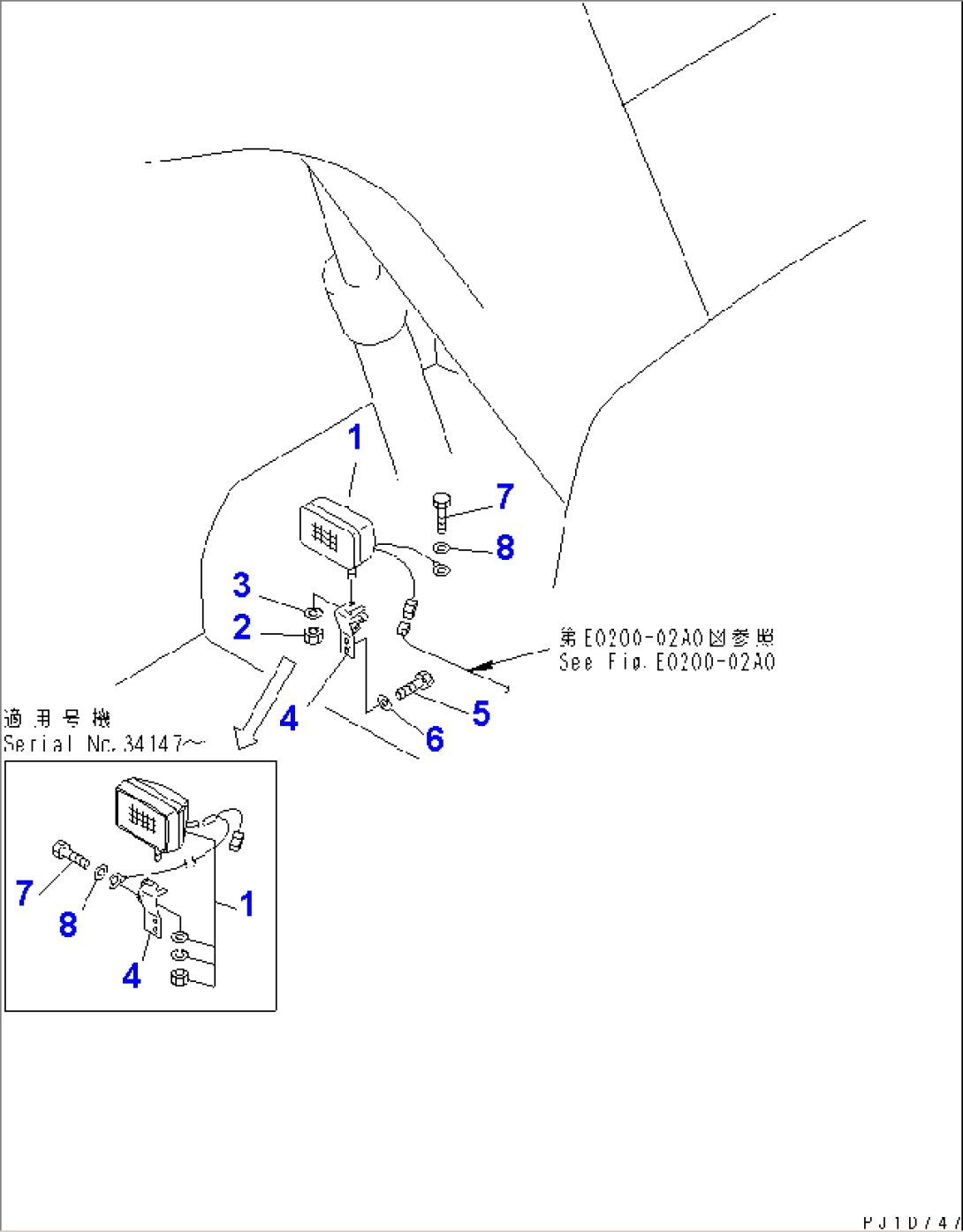

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-25310 | WORK LAMP ASS'Y | 34147- | |
| 20Y-06-21480 | WORK LAMP ASS'Y | 30001-34146 | ||
| 421-06-23330 | BULB¤ 70W,24V | 34147- | ||
| 2 | 01582-11411 | NUT | 30001-34146 | |
| 3 | 01643-31445 | WASHER | 30001-34146 | |
| 4 | 207-06-61551 | BRACKET | 34147- | |
| 207-06-61550 | BRACKET | 30001-34146 | ||
| 5 | 01010-81225 | BOLT | 30734- | |
| 01010-51225 | BOLT | 30001-30733 | ||
| 6 | 01643-31232 | WASHER | 30001- | |
| 7 | 01010-81220 | BOLT | 30734- | |
| 01010-51220 | BOLT | 30001-30733 | ||
| 8 | 01643-31232 | WASHER | 30001- |
