| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-21480 | WORKING LAMP ASS'Y | 10001-@ | |
| 2 | 01582-11411 | NUT | 10001-@ | |
| 3 | 01643-31445 | WASHER | 10001-@ | |
| 4 | 20Y-06-21692 | BRACKET | 10001-@ | |
| 5 | 01010-51230 | BOLT | 10001-@ | |
| 6 | 01643-31232 | WASHER | 10001-@ | |
| 7 | 01010-51220 | BOLT | 10001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc230lc 6 s/n 10001 up
- Electrical system
- Wiring (working lamp¤ front)(#10001 10168)
Поиск по каталогу

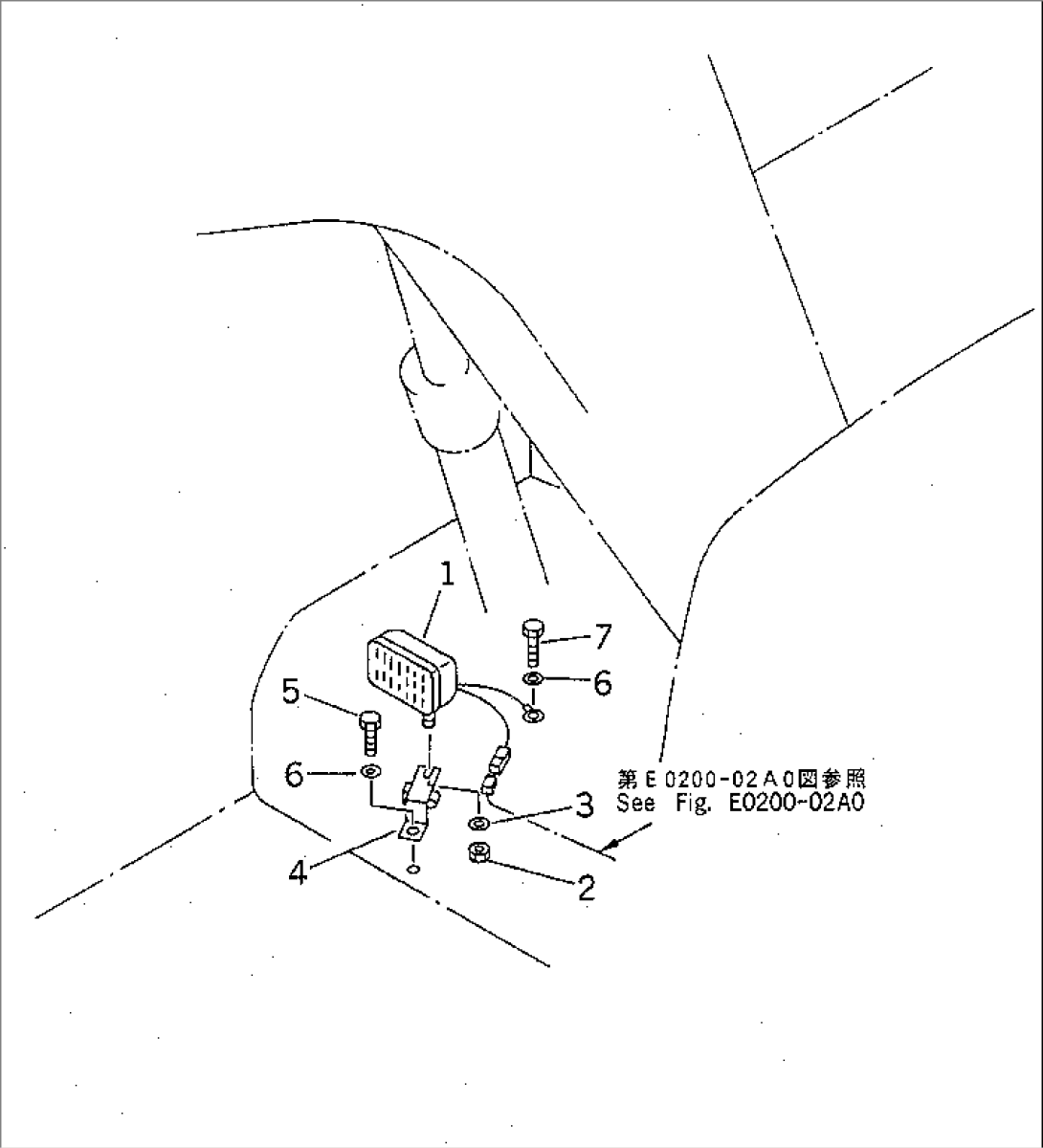

WIRING (WORKING LAMP¤ FRONT)(#10001-10168)
