| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-43-36311 | COVER | 83001- | |
| 2 | 114-43-48381 | GROMMET | 83001- | |
| 3 | 20T-43-71160 | BOOT | 83001- | |
| 4 | 20T-43-71360 | PLATE | 83001- | |
| 5 | 01252-30825 | BOLT | 83001- | |
| 6 | 01643-30823 | WASHER | 83001- | |
| 7 | 114-54-43260 | PLUG | 83001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D21a 8t s/n 83001 up (trimming dozer)
- Operator's compartment and control system
- Work equipment control (guide) (for angle dozer or trimming dozer)
Поиск по каталогу

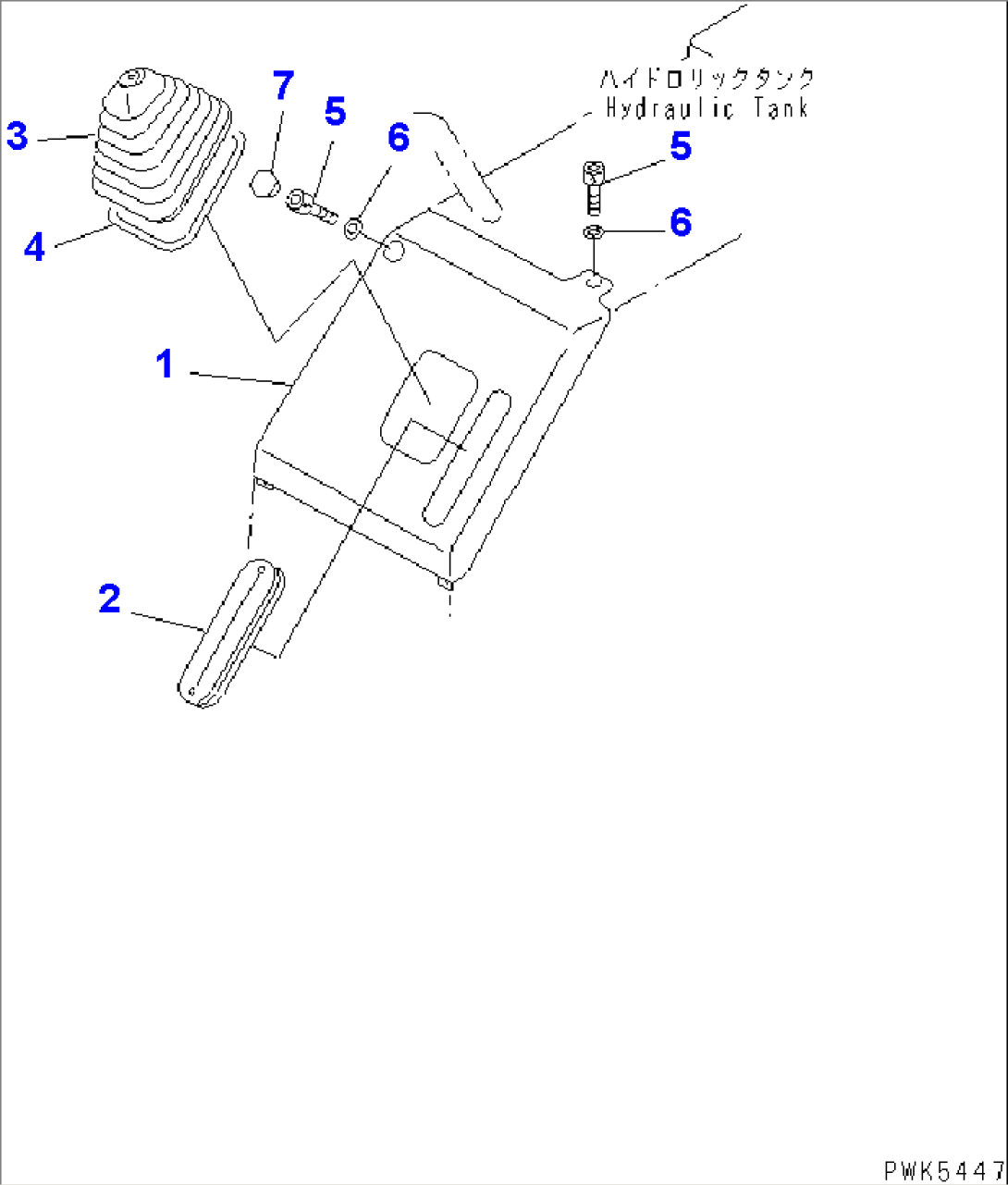

WORK EQUIPMENT CONTROL (GUIDE) (FOR ANGLE DOZER OR TRIMMING DOZER)
