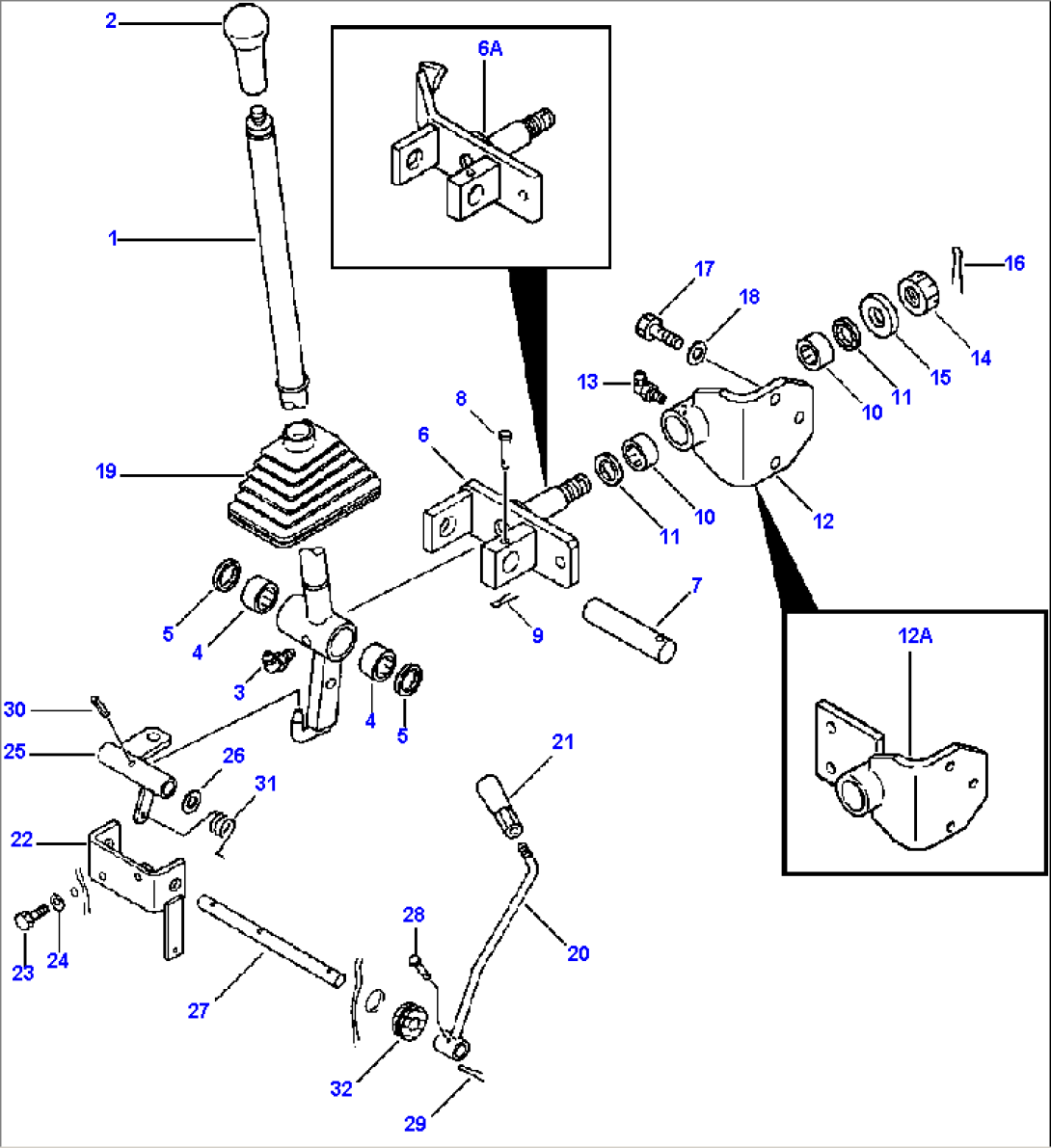

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-43-18112 | LEVER, WORK EQUIPMENT CONTROL | ||
| 2 | 113-43-23420 | KNOB | ||
| 3 | 07020-00900 | FITTING, GREASE | ||
| 4 | 06120-02016 | BEARING, NEEDLE | ||
| 5 | 06122-02004 | SEAL BEARING | ||
| 6 | 417-43-18121 | LEVER | ||
| 6A | 417-U77-1811 | LEVER | ||
| 7 | 417-43-18181 | PIN | ||
| 8 | 20T-26-11220 | PIN | ||
| 9 | 04050-11612 | PIN, COTTER | ||
| 10 | 06120-02016 | BEARING, NEEDLE | ||
| 11 | 06122-02004 | SEAL BEARING | ||
| 12 | 417-43-18130 | BRACKET | ||
| 12A | 417-U77-1821 | BRACKET | ||
| 13 | 07020-00900 | FITTING, GREASE | ||
| 14 | 01590-01619 | NUT | ||
| 15 | 417-43-18170 | WASHER | ||
| 16 | 04050-14030 | PIN, COTTER | ||
| 17 | 01010-31030 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 419-43-18160 | BOOT | ||
| 20 | 417-43-18312 | LEVER, LOCK | ||
| 21 | 09305-00800 | KNOB | ||
| 22 | 417-43-18260 | SUPPORT | ||
| 23 | 01010-50820 | BOLT | ||
| 24 | 01643-30823 | WASHER | ||
| 25 | 417-43-18331 | LEVER | ||
| 26 | 417-43-18410 | SHIM, 0.8mm | ||
| 27 | 417-43-18341 | SHAFT | ||
| 28 | 04205-10522 | PIN | ||
| 29 | 04050-11210 | PIN, COTTER | ||
| 30 | 04025-00520 | PIN, SPRING | ||
| 31 | 09487-00002 | SPRING | ||
| 32 | 08037-01610 | GROMMET | ||
| F1 - USED ON MACHINES WITH STANDARD LOADER LINKAGE. | ||||
| F2 - USED ON MACHINES WITH PARALLEL TOOL CARRIER LINKAGE. | ||||
