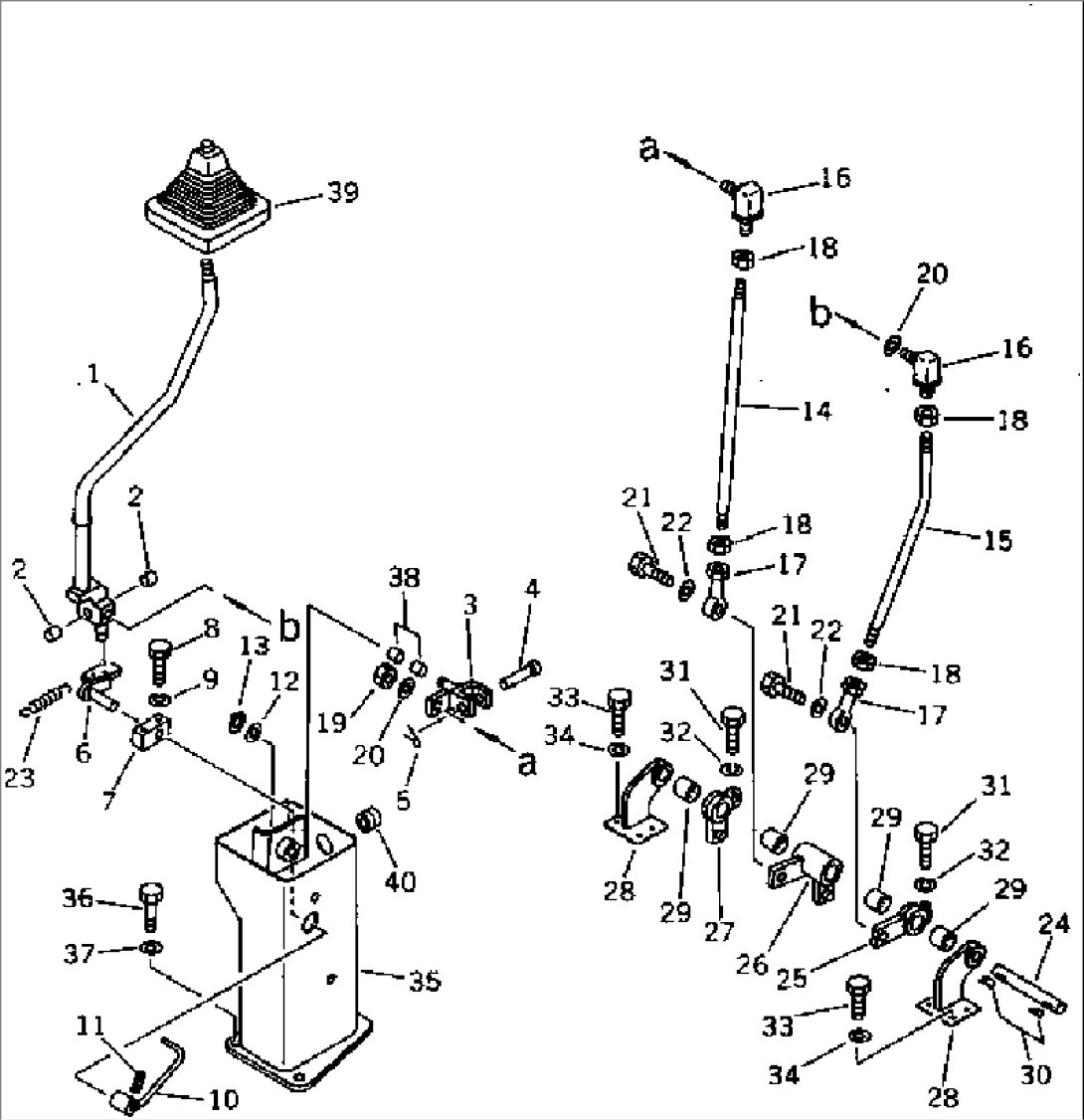

WORK EQUIPMENT CONTROL LEVER (ARM AND SWING) (FOR ATTACHMENT)

Item	Part No.	Part Name	Qty	Serial No.
G-1	(\8\21W-973-X160)	CONTROL MODIFIED G.,(FOR ATTACHMENT) (OP)		1001-
		====================
1	20U-43-11152	LEVER,L.H.		1001-
2	203-43-31420	BUSHING		1001-
3	205-43-52140	YOKE		1001-
4	04205-11450	PIN		1001-
5	04050-14022	PIN,COTTER		1001-
6	20U-43-11210	LEVER,L.H.		1001-
7	20S-43-21390	BLOCK		1001-
8	01010-50840	BOLT		1001-
9	01602-20825	WASHER,SPRING		1001-
10	205-43-63830	LEVER,LOCKÂ¤ L.H.		1001-
11	04025-00520	PIN,SPRING		1001-
12	01641-21423	WASHER		1001-
13	04064-01410	RING,SNAP		1001-
14	04245-41040	ROD		1001-
15	21W-43-11150	ROD		1001-
16	207-43-11170	JOINT		1001-
17	04250-41056	END,ROD		1001-
18	01582-11008	NUT		1001-
19	01582-11008	NUT		1001-
20	01643-31032	WASHER		1001-
21	01010-51035	BOLT		1001-
22	01643-31032	WASHER		1001-
23	203-43-21370	SPRING		1001-
24	21W-43-11170	SHAFT		1001-
25	21W-43-11180	LEVER		1001-
26	21W-43-11210	LEVER		1001-
27	21W-43-11190	LEVER		1001-
28	21W-43-11160	BRACKET		1001-
29	195-61-34130	BEARING		1001-
30	04010-00519	KEY		1001-
31	01010-50830	BOLT		1001-
32	01602-20825	WASHER,SPRING		1001-
33	01010-51030	BOLT		1001-
34	01643-31032	WASHER		1001-
35	21W-43-11451	STAND,L.H.		1680-
	21W-43-11450	STAND,L.H.		1001-1679
36	01010-51230	BOLT		1001-
37	01643-31232	WASHER		1001-
38	203-43-31420	BUSHING		1001-
39	20X-43-21730	BOOT		1001-
40	09415-02512	CAP		1001-
		====================
