WORK EQUIPMENT CONTROL SWITCH BOX¤ R.H. (1/3) (BOX AND MARK)

Item	Part No.	Part Name	Qty	Serial No.
	262-06-74800	BOX ASS'Y,SWITCH		12001-

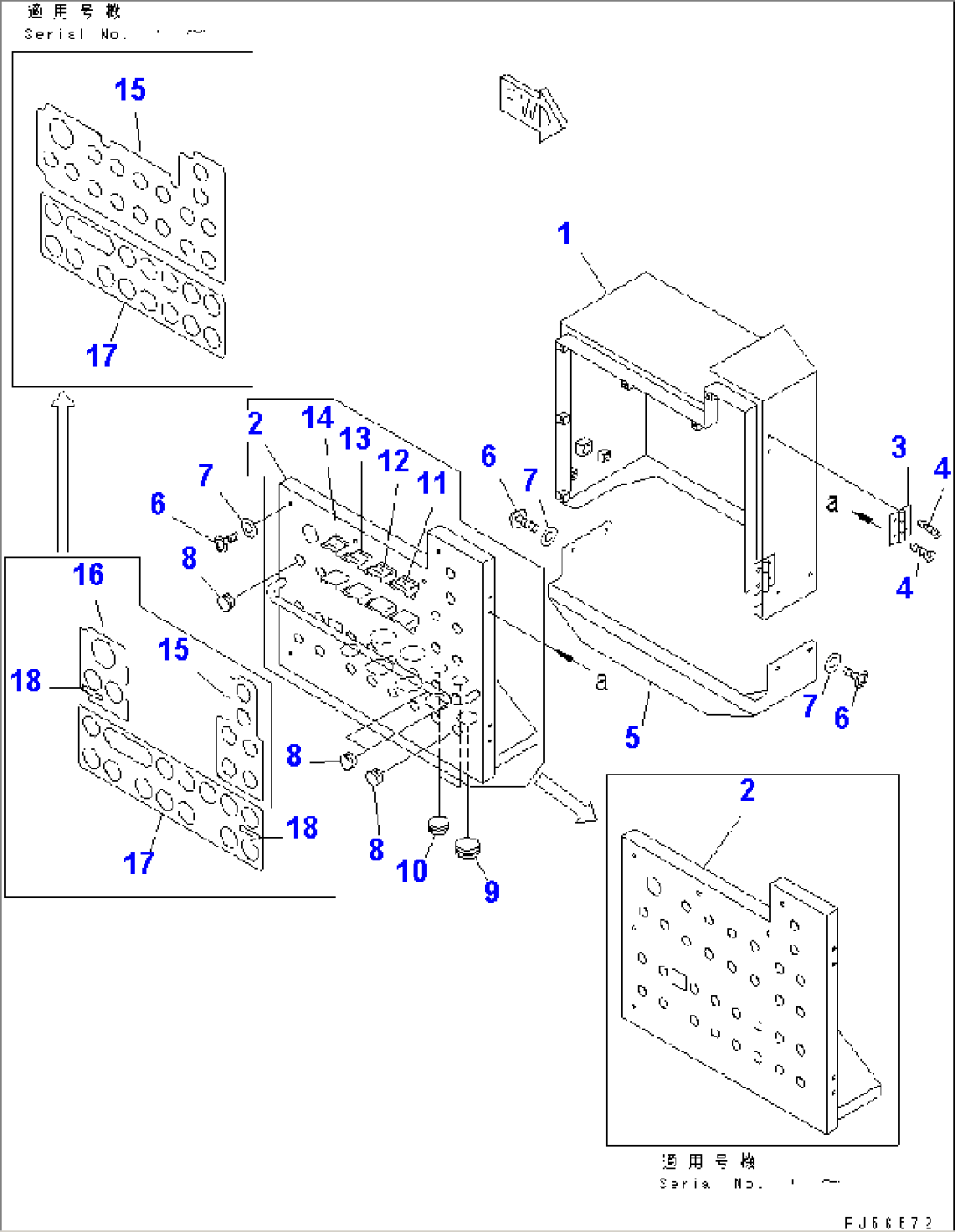

		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.1431 TO 1433.
	262-06-74861	BOX SUB ASS'Y,SWITCH		12001-
1	262-06-74871	BOX		12001-
2	262-06-74881	COVER		12001-
3	262-06-74890	HINGE		12001-
4	01224-40308	SCREW		12001-
5	262-06-73290	COVER		12001-
6	01023-10410	SCREW		12001-
7	7816-14-1560	WASHER		12001-
8	130-911-1640	PLUG		12001-
9	09415-01610	CAP		12001-
10	09415-01008	CAP		12001-
11	262-53-72260	PLATEÂ¤ NAME,WORKING MODE		12001-
12	262-53-72250	PLATEÂ¤ NAME,ACC FOLLOWER		12001-.
13	262-53-72240	PLATEÂ¤ NAME,RESET		12001-.
14	262-53-72230	PLATEÂ¤ NAME,DEPTH AND SLOPE		12001-.
15	262-53-72351	PLATEÂ¤ NAME		.-
	262-53-72350	PLATEÂ¤ NAME		12001-.
16	262-53-72280	PLATEÂ¤ NAME		12001-.
17	262-53-72211	PLATEÂ¤ NAME		.-
	262-53-72210	PLATEÂ¤ NAME		12001-.
18	262-53-72680	PLATEÂ¤ NAME,BLIND		12001-.
