| Item | Part No. | Part Name | Qty | Serial No. |
| 705-51-30240 | PUMP ASS'Y | 3513- | ||
| 705-51-30190 | PUMP ASS'Y | 3001-3512 | ||

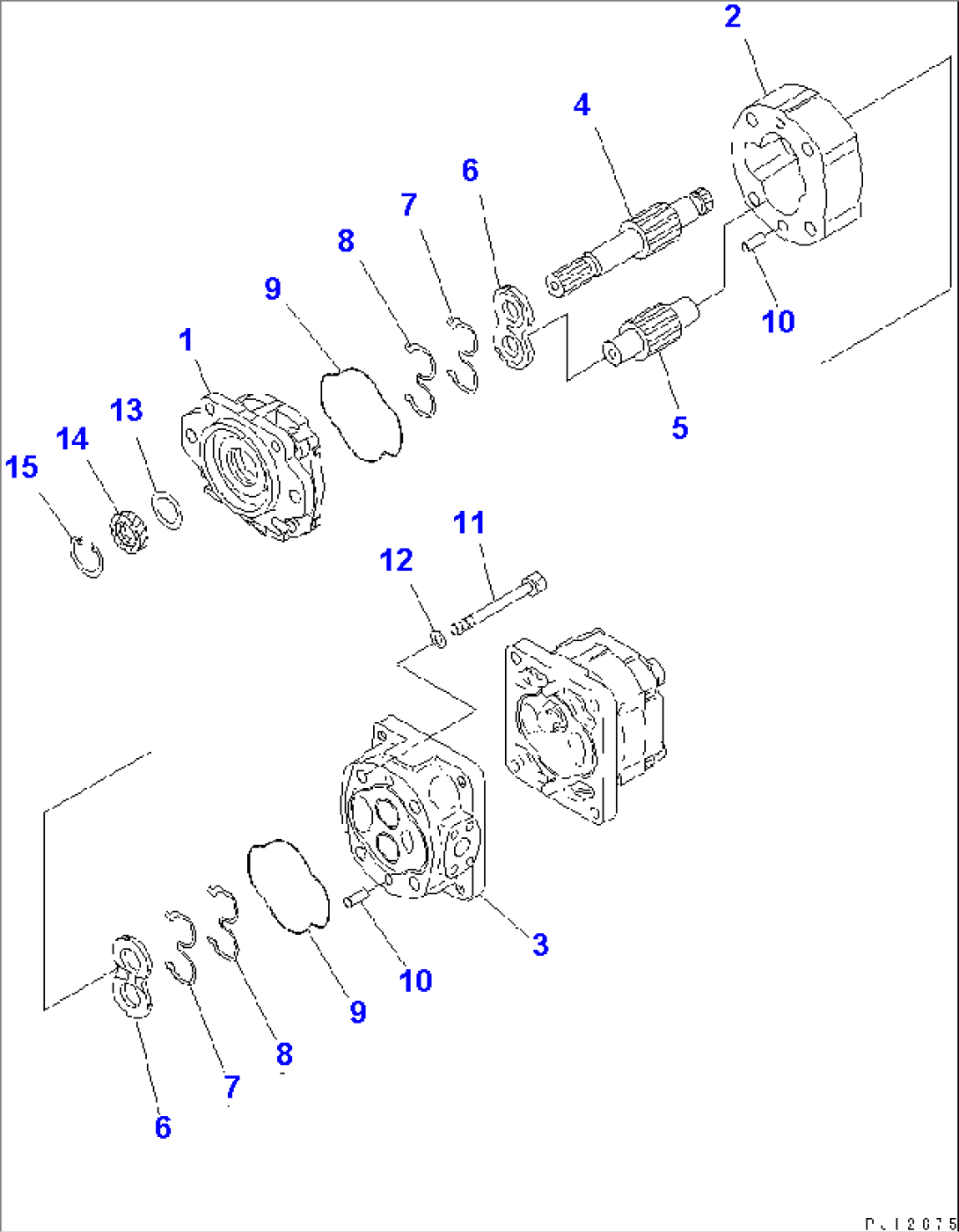

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6103 AND 6104. | ||||
| 705-11-40210 | PUMP ASS'Y | 3513- | ||
| 705-11-38210 | PUMP ASS'Y | 3001-3512 | ||
| 1 | (\7\705-17-03012) | BRACKET ASS'Y | 3001- | |
| (\7\705-17-03352) | BUSHING | 3001- | ||
| 2 | (\7\705-17-40010) | CASE,GEAR | 3513- | |
| (\7\705-17-38010) | CASE,GEAR | 3001-3512 | ||
| 3 | (\7\705-17-03220) | CARRIER | 3001- | |
| (\7\705-17-03352) | BUSHING | 3001- | ||
| 4 | (\7\705-17-40430) | GEAR,DRIVE | 3513- | |
| (\7\705-17-38430) | GEAR,DRIVE | 3001-3512 | ||
| 5 | (\7\705-17-40510) | GEAR,DRIVEN | 3513- | |
| (\7\705-17-38511) | GEAR,DRIVEN | 3001-3512 | ||
| 6 | (\7\705-17-03610) | PLATE,SIDE | 3001- | |
| 7 | (\7\705-17-03440) | RING,BACK-UP | 3001- | |
| 8 | (\7\705-17-03470) | SEAL,SEAL | 3001- | |
| 9 | (\7\705-17-03380) | O-RING | 3001- | |
| 10 | (\7\04020-01228) | PIN,DOWEL | 3001- | |
| 11 | (\7\705-17-03770) | BOLT | 3513- | |
| (\7\705-17-03760) | BOLT | 3001-3512 | ||
| 12 | (\7\01643-51645) | WASHER | 3001- | |
| 13 | 705-17-03870 | PLATE | 3001- | |
| 14 | 705-17-03810 | SEAL,OIL | 3001- | |
| 15 | 04065-05220 | RING,SNAP | 3001- |
