| Item | Part No. | Part Name | Qty | Serial No. |
| (705-51-30190) | PUMP ASS'Y | 3001- | ||

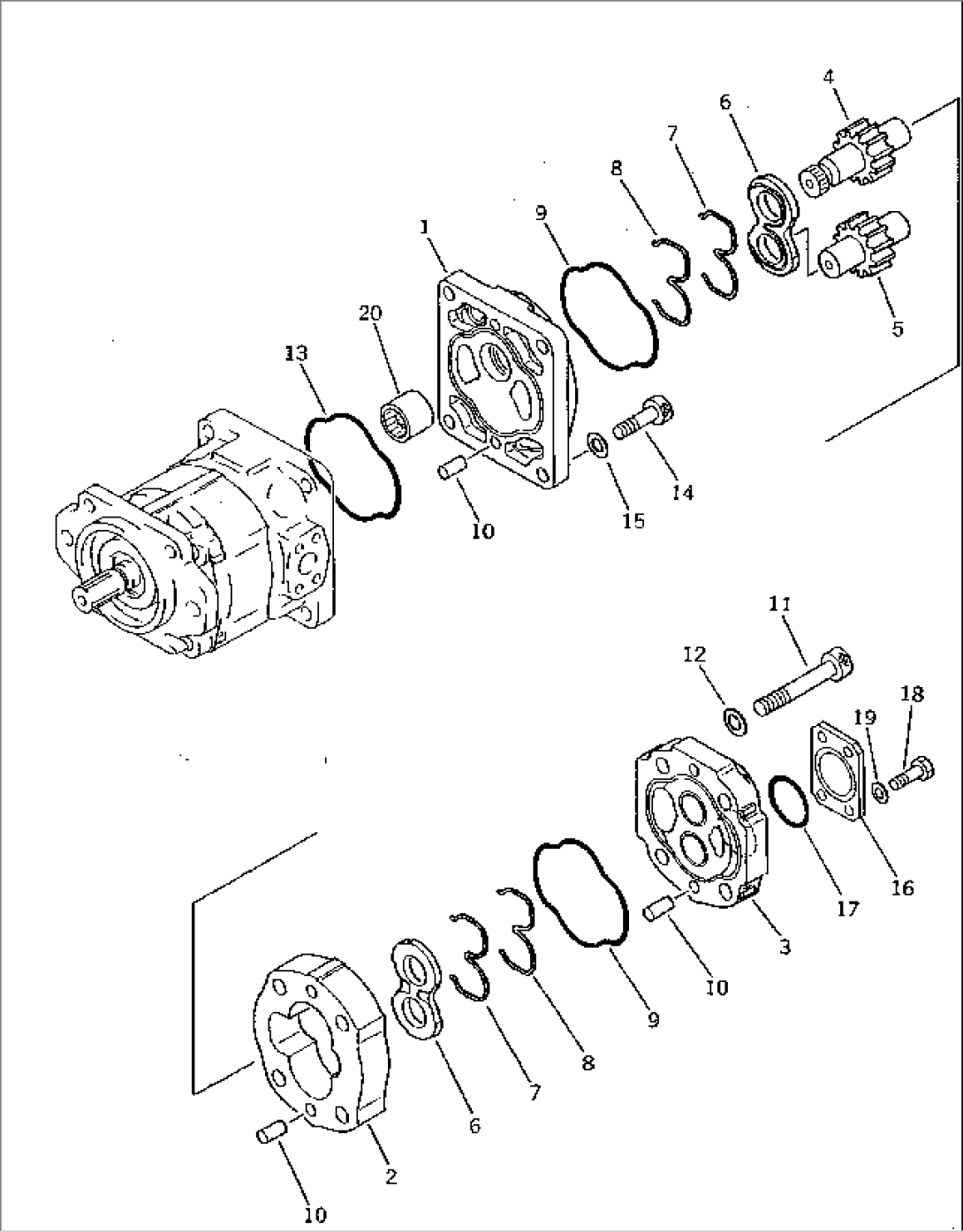

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 AND 6102. | ||||
| 705-13-31730 | PUMP ASS'Y | 3001- | ||
| 1 | (\7\705-17-03511) | BRACKET | 3001- | |
| 1 | (\7\705-17-03352) | BUSHING | 3001- | |
| 2 | (\7\705-18-31010) | CASE,GEAR | 3001- | |
| 3 | (\7\705-17-03140) | COVER | 3001- | |
| 3 | (\7\705-17-03352) | BUSHING | 3001- | |
| 4 | (\7\705-18-31450) | GEAR,DRIVE | 3001- | |
| 5 | (\7\705-18-31510) | GEAR,DRIVEN | 3001- | |
| 6 | 705-17-03610 | PLATE,SIDE | 3001- | |
| 7 | 705-17-03440 | RING,BACK-UP | 3001- | |
| 8 | 705-17-03470 | SEAL,SEAL | 3001- | |
| 9 | 705-17-03380 | O-RING | 3001- | |
| 10 | 04020-01228 | PIN,DOWEL | 3001- | |
| 11 | 705-17-03720 | BOLT | 3001- | |
| 12 | 01643-51645 | WASHER | 3001- | |
| 13 | 705-17-03380 | O-RING | 3001- | |
| 14 | 705-17-03370 | BOLT | 3001- | |
| 15 | 705-17-04980 | WASHER | 3001- | |
| 16 | 705-17-03880 | PLATE | 3001- | |
| 17 | 07000-02055 | O-RING | 3001- | |
| 18 | 01010-51230 | BOLT | 3001- | |
| 19 | 01643-51232 | WASHER | 3001- | |
| 20 | 705-17-03330 | COUPLING | 3001- |
