| Item | Part No. | Part Name | Qty | Serial No. |

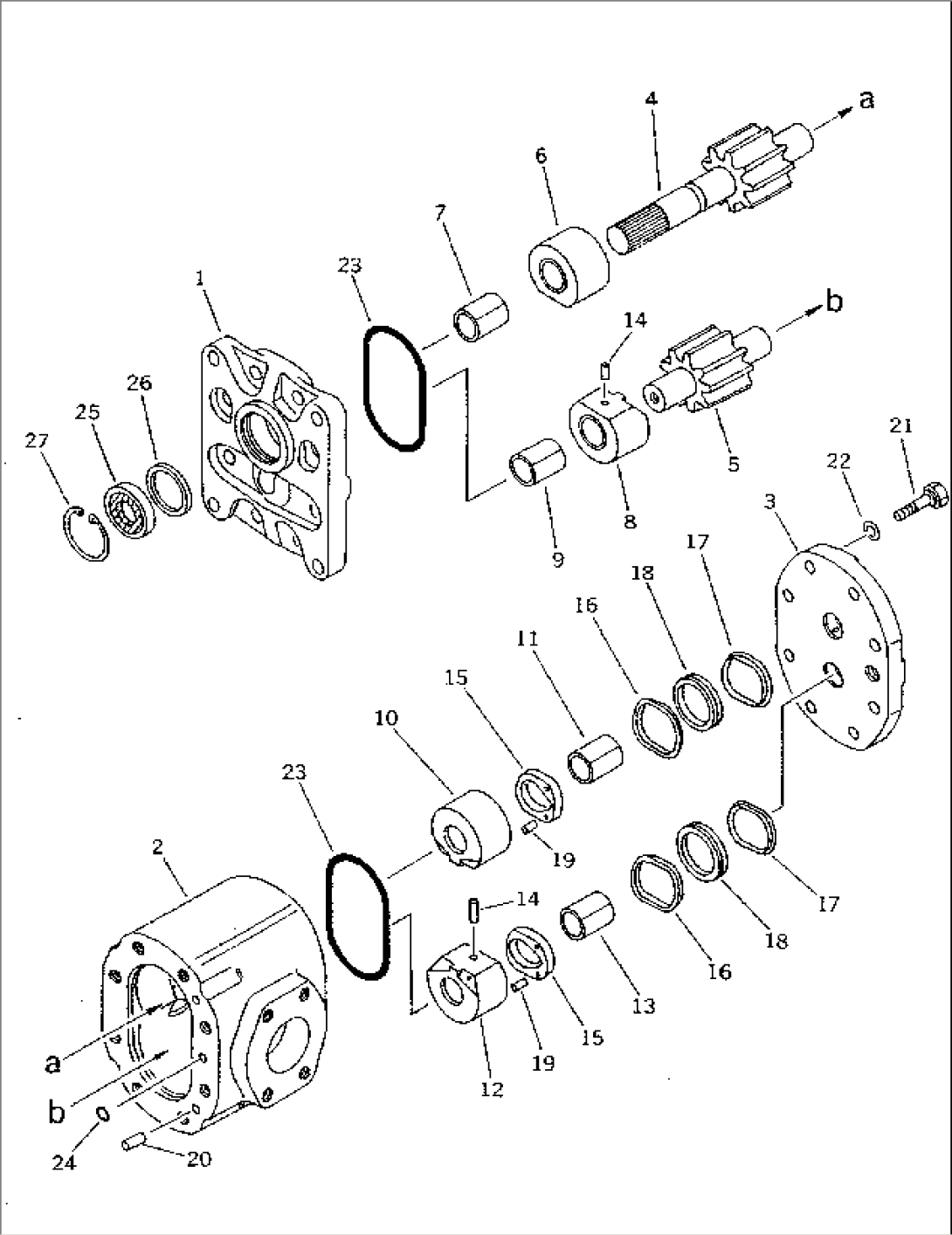

| 704-11-40100 | PUMP ASS'Y,(KAL-100) | 20001- | ||
| 1 | (\7\704-17-03010) | BRACKET | 20001- | |
| 2 | (\7\704-17-40010) | CASE,GEAR | 20001- | |
| 3 | (\7\704-17-03110) | COVER | 20001- | |
| 4 | (\7\704-17-40410) | GEAR,DRIVE | 20001- | |
| 5 | (\7\704-17-40510) | GEAR,DRIVEN | 20001- | |
| 6 | (\7\704-17-03610) | BUSHING ASS'Y | 20001- | |
| 7 | (\7\704-17-03350) | BEARING,PLANE | 20001- | |
| 8 | (\7\704-17-03620) | BUSHING ASS'Y | 20001- | |
| 9 | (\7\704-17-03350) | BEARING,PLANE | 20001- | |
| 10 | (\7\704-17-03710) | BUSHING ASS'Y | 20001- | |
| 11 | (\7\704-17-03350) | BEARING,PLANE | 20001- | |
| 12 | (\7\704-17-03720) | BUSHING ASS'Y | 20001- | |
| 13 | (\7\704-17-03350) | BEARING,PLANE | 20001- | |
| 14 | (\7\07429-66191) | PIN | 20001- | |
| 15 | (\7\704-17-03410) | PLATE,SEAL | 20001- | |
| 16 | (\7\704-17-03440) | RING,BACK-UP | 20001- | |
| 17 | (\7\704-17-03450) | RING,BACK-UP | 20001- | |
| 18 | (\7\704-17-03470) | U-RING | 20001- | |
| 19 | (\7\04025-00312) | PIN,SPRING | 20001- | |
| 20 | (\7\04020-01024) | PIN,DOWEL | 20001- | |
| 21 | (\7\01010-51245) | BOLT | 20001- | |
| 22 | (\7\01643-51232) | WASHER | 20001- | |
| 23 | (\7\07000-13100) | O-RING | 20001- | |
| 24 | (\7\07000-12012) | O-RING | 20001- | |
| 25 | 07430-11162 | SEAL,OIL | 20001- | |
| 26 | 704-17-03870 | PLATE | 20001- | |
| 27 | 04065-04518 | RING,SNAP | 20001- |
