| Item | Part No. | Part Name | Qty | Serial No. |
| 709-24-11900 | VALVE ASS'Y | 60001- | ||

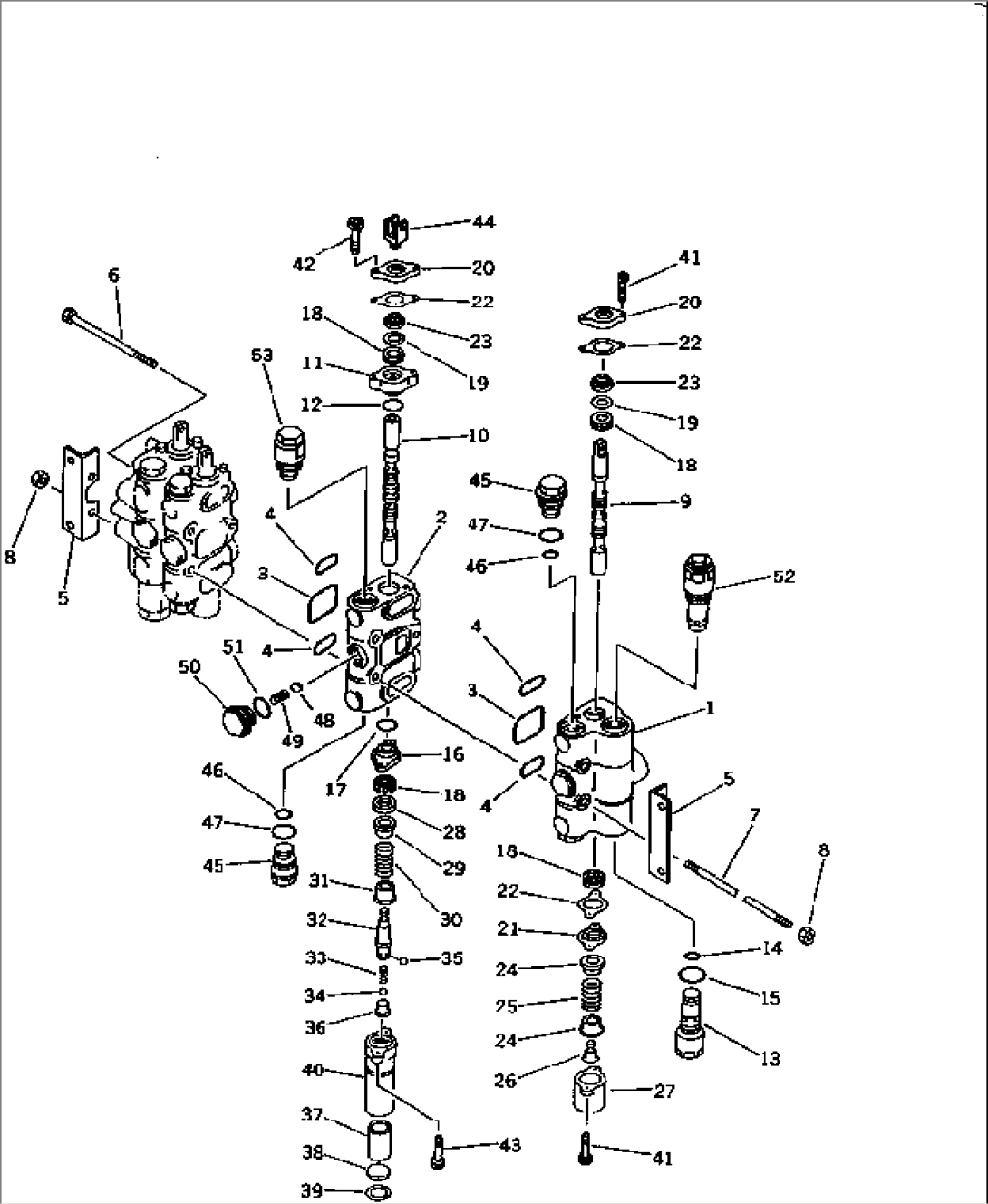

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6215 TO 6217. | ||||
| 709-24-00050 | BODY GROUP ASS'Y | 60001- | ||
| \6\ | BODY SUB ASS'Y | 60001- | ||
| 1 | \6\ | BODY,VALVE | 60001- | |
| 2 | \6\ | BLOCK,VALVE | 60001- | |
| 3 | 07000-13040 | O-RING | 60001- | |
| 4 | 700-22-11450 | O-RING | 60001- | |
| 5 | 700-26-11170 | ANGLE | 60001- | |
| 6 | 700-24-11120 | BOLT | 60001- | |
| 7 | 700-24-11111 | STUD | 60001- | |
| 8 | 01580-10806 | NUT | 60001- | |
| 9 | \6\ | SPOOL,TILT | 60001- | |
| 10 | \6\ | SPOOL,BLADE | 60001- | |
| 11 | 700-22-11630 | PLATE | 60001- | |
| 12 | 07000-02018 | O-RING | 60001- | |
| 13 | 700-22-11380 | PLUG | 60001- | |
| 14 | 07000-12014 | O-RING | 60001- | |
| 15 | 07002-02434 | O-RING | 60001- | |
| 16 | 700-22-12290 | PLATE | 60001- | |
| 17 | 07000-02018 | O-RING | 60001- | |
| 18 | 700-22-11252 | U-PACKING | 60001- | |
| 19 | 700-22-11430 | COLLAR | 60001- | |
| 20 | 700-22-11270 | PLATE | 60001- | |
| 21 | 700-22-11281 | PLATE | 60001- | |
| 22 | 700-22-11420 | GASKET | 60001- | |
| 23 | 700-22-11261 | SEAL,DUST | 60001- | |
| 24 | 700-22-11291 | RETAINER | 60001- | |
| 25 | 700-23-13130 | SPRING | 60001- | |
| 26 | 700-22-11321 | PLUG | 60001- | |
| 27 | 700-22-11331 | COVER | 60001- | |
| 28 | 700-21-11150 | PLATE | 60001- | |
| 29 | 700-22-11291 | RETAINER | 60001- | |
| 30 | 700-22-11510 | SPRING | 60001- | |
| 31 | 700-22-11520 | RETAINER | 60001- | |
| 32 | 700-21-11181 | PLUG | 60001- | |
| 33 | 700-21-11190 | SPRING | 60001- | |
| 34 | 700-82-11340 | BALL | 60001- | |
| 35 | 700-84-11730 | BALL | 60001- | |
| 36 | 700-21-11210 | PLUG | 60001- | |
| 37 | 700-21-12121 | DETENT | 60001- | |
| 38 | 700-22-11590 | PLATE | 60001- | |
| 39 | 700-22-11610 | RING,SNAP | 60001- | |
| 40 | 700-22-12311 | CASE | 60001- | |
| 41 | 01252-30616 | BOLT | 60001- | |
| 42 | 01252-30630 | BOLT | 60001- | |
| 43 | 01252-30625 | BOLT | 60001- | |
| 44 | 700-22-11750 | PLUG | 60001- | |
| 45 | 700-22-11360 | PLUG | 60001- | |
| 46 | 07000-12014 | O-RING | 60001- | |
| 47 | 07002-02434 | O-RING | 60001- | |
| 48 | 700-22-12340 | BALL | 60001- | |
| 49 | 700-22-12350 | SPRING | 60001- | |
| 50 | 700-22-11351 | PLUG | 60001- | |
| 51 | 07002-12434 | O-RING | 60001- | |
| 52 | (700-27-53000) | VALVE ASS'Y,RELIEF | 60001- | |
| 53 | (700-20-81000) | VALVE ASS'Y,SUCTION | 60001- |
