| Item | Part No. | Part Name | Qty | Serial No. |
| (709-23-12502) | VALVE ASS'Y | 76441-78603 | ||
| (709-23-12501) | VALVE ASS'Y | 75001-76440 | ||
| (709-23-12500) | VALVE ASS'Y | 75001-76440 | ||

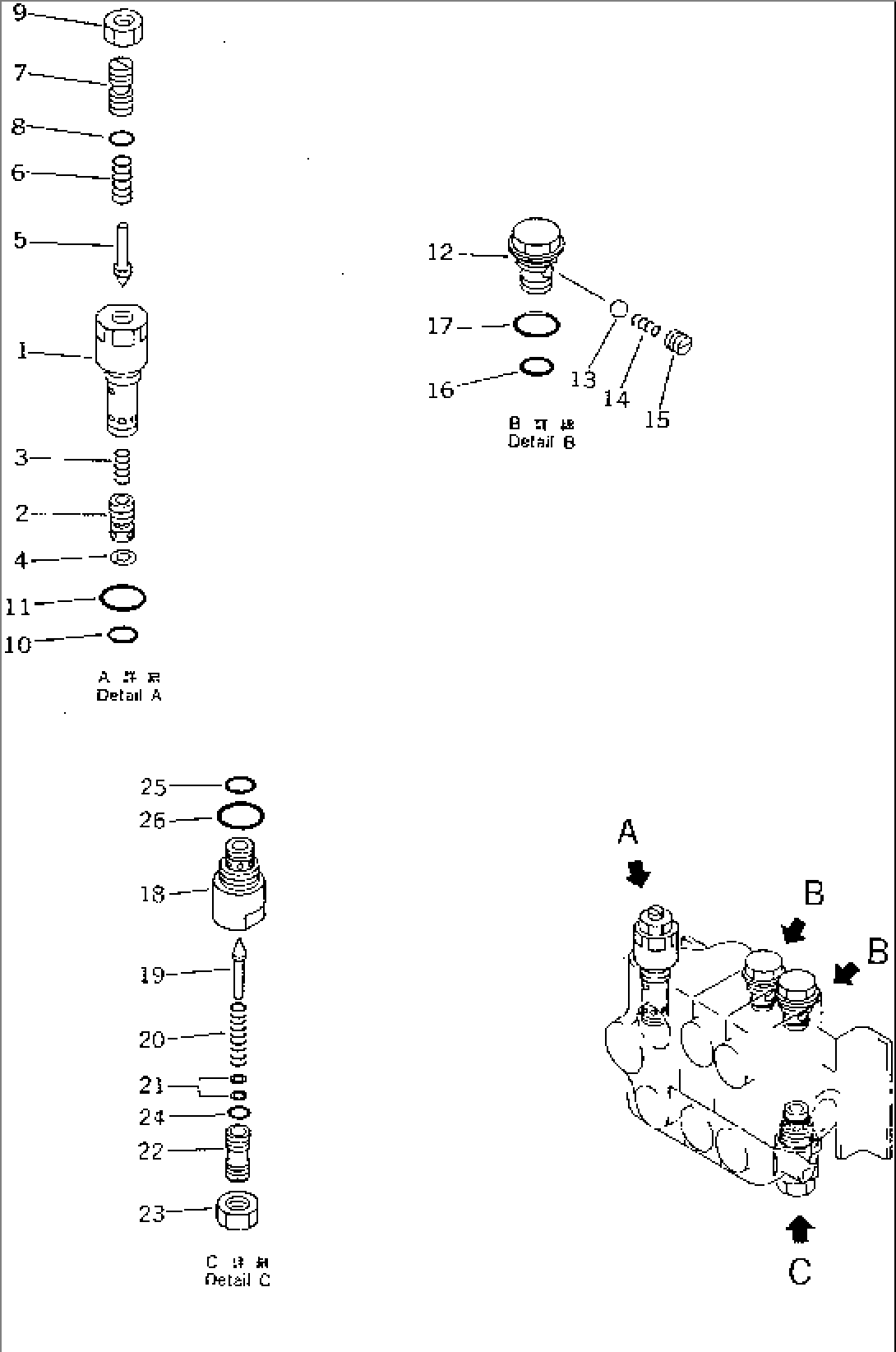

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6205 AND 6206. | ||||
| 700-27-53000 | VALVE ASS'Y,RELIEF | 75001-78603 | ||
| 1 | \6\ | SLEEVE | 75001-78603 | |
| 2 | \6\ | VALVE | 75001-78603 | |
| 3 | \6\ | SPRING | 75001-78603 | |
| 4 | \6\ | RING,SNAP | 75001-78603 | |
| 5 | \6\ | POPPET | 75001-78603 | |
| 6 | \6\ | SPRING | 75001-78603 | |
| 7 | \6\ | SCREW | 75001-78603 | |
| 8 | \6\ | O-RING | 75001-78603 | |
| 9 | \6\ | NUT | 75001-78603 | |
| 10 | 700-22-11410 | O-RING | 75001-78603 | |
| 11 | 07002-02434 | O-RING | 75001-78603 | |
| 700-20-81000 | VALVE ASS'Y,SUCTION | 75001-78603 | ||
| 12 | \6\ | SLEEVE | 75001-78603 | |
| 13 | \6\ | BALL | 75001-78603 | |
| 14 | \6\ | SPRING | 75001-78603 | |
| 15 | \6\ | SCREW | 75001-78603 | |
| 16 | 07000-12014 | O-RING | 75001-78603 | |
| 17 | 07002-02434 | O-RING | 75001-78603 | |
| 700-20-63001 | VALVE ASS'Y,SAFETY | 75001-78603 | ||
| 18 | \6\ | SLEEVE | 75001-78603 | |
| 19 | \6\ | POPPET | 75001-78603 | |
| 20 | \6\ | SPRING | 75001-78603 | |
| 21 | \6\ | SPACER | 75001-78603 | |
| 22 | \6\ | SCREW | 75001-78603 | |
| 23 | \6\ | NUT | 75001-78603 | |
| 24 | 07000-02015 | O-RING | 75001-78603 | |
| 25 | 07000-12014 | O-RING | 75001-78603 | |
| 26 | 07002-02434 | O-RING | 75001-78603 |
