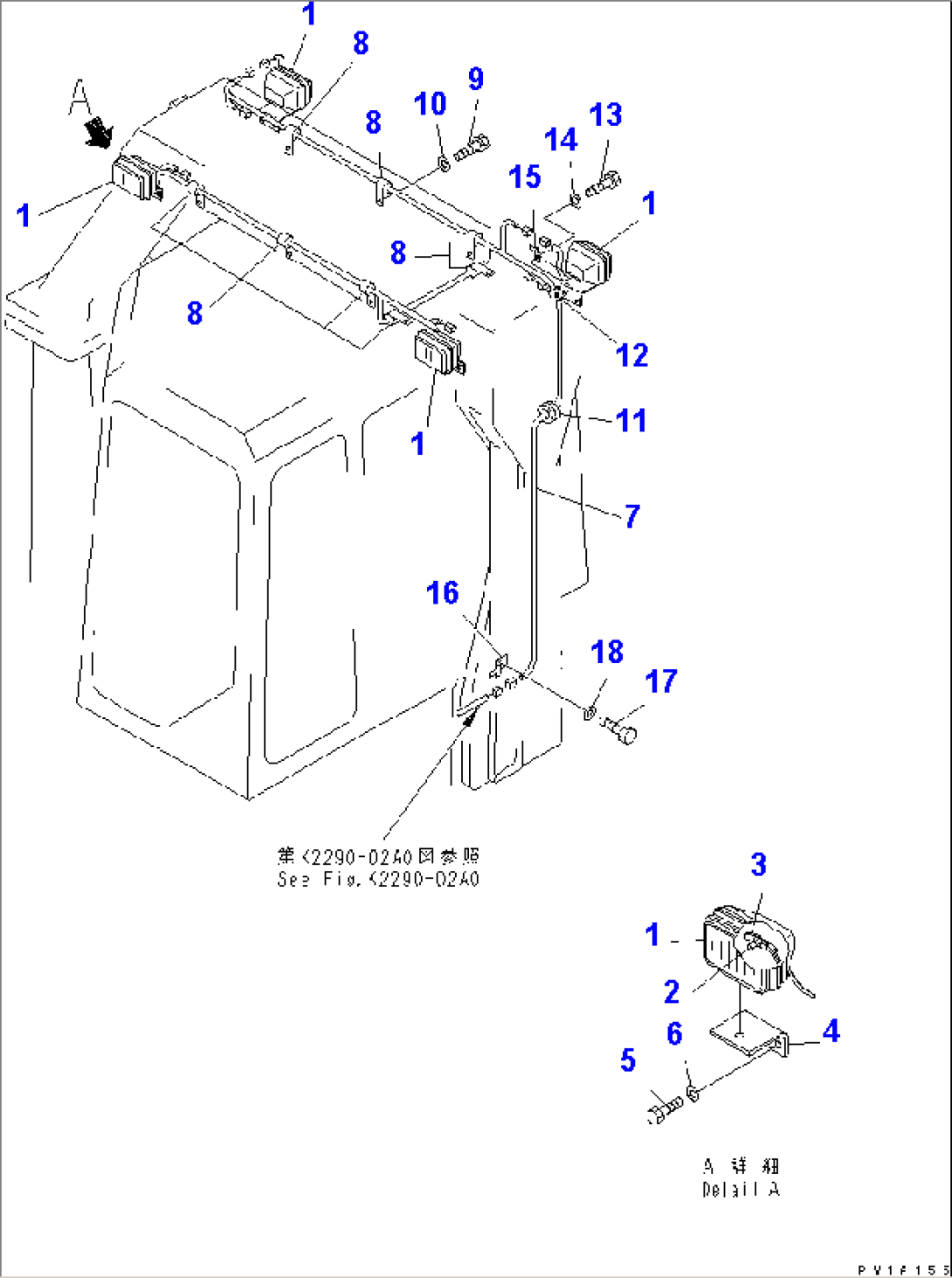

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17931 | LAMP ASS'Y | 10111- | |
| 1 | \0\17A-06-17930 | LAMP ASS'Y | 10101-10110 | |
| 2 | 17A-06-17970 | BULB, 70W | 10101- | |
| 3 | 17A-06-17980 | SLEEVE | 10101- | |
| 4 | 19M-06-17920 | BRACKET | 10101- | |
| 5 | 01010-81225 | BOLT | 10101- | |
| 6 | 01643-31232 | WASHER | 10101- | |
| 7 | 19M-06-31280 | WIRING HARNESS | 10101- | |
| 8 | 08036-91414 | CLIP | 10101- | |
| 9 | 01010-81220 | BOLT | 10101- | |
| 10 | 01643-31232 | WASHER | 10101- | |
| 11 | 08037-05016 | GROMMET | 10101- | |
| 12 | 04434-51912 | CLIP | 10101- | |
| 13 | 01010-81220 | BOLT | 10101- | |
| 14 | 01643-31232 | WASHER | 10101- | |
| 15 | 08193-21012 | CLIP | 10101- | |
| 16 | 08193-31012 | CLIP | 10101- | |
| 17 | 01010-81220 | BOLT | 10101- | |
| 18 | 01643-31232 | WASHER | 10101- |
