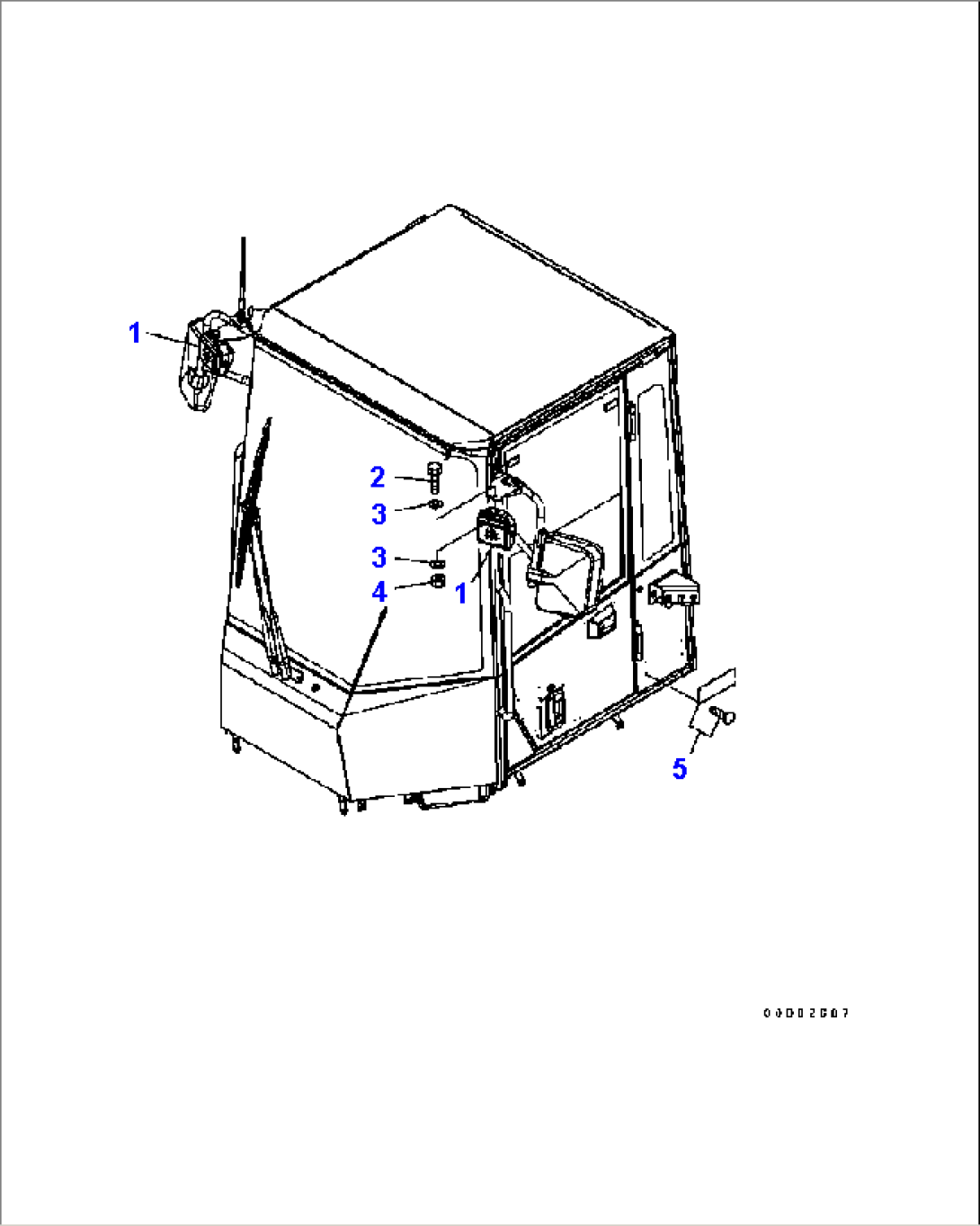

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-56-23360 | LAMP ASS'Y | B10001- | |
| 421-06-23320 | LENS | B10001- | ||
| 421-06-23330 | BULB¤ 70W | B10001- | ||
| 08056-00271 | CONNECTOR | B10001- | ||
| 2 | 01010-81225 | BOLT | B10001- | |
| 3 | 01643-31232 | WASHER | B10001- | |
| 4 | 01580-11210 | NUT | B10001- | |
| 5 | 09620-A2120 | PLATE | B10001- | |
| \6\ | PLATE¤ NAME | B10001- | ||
| 04418-13060 | SCREW | B10001-B10056 | ||
| 205-00-72430 | RIVET | B10001- |
