| Item | Part No. | Part Name | Qty | Serial No. |

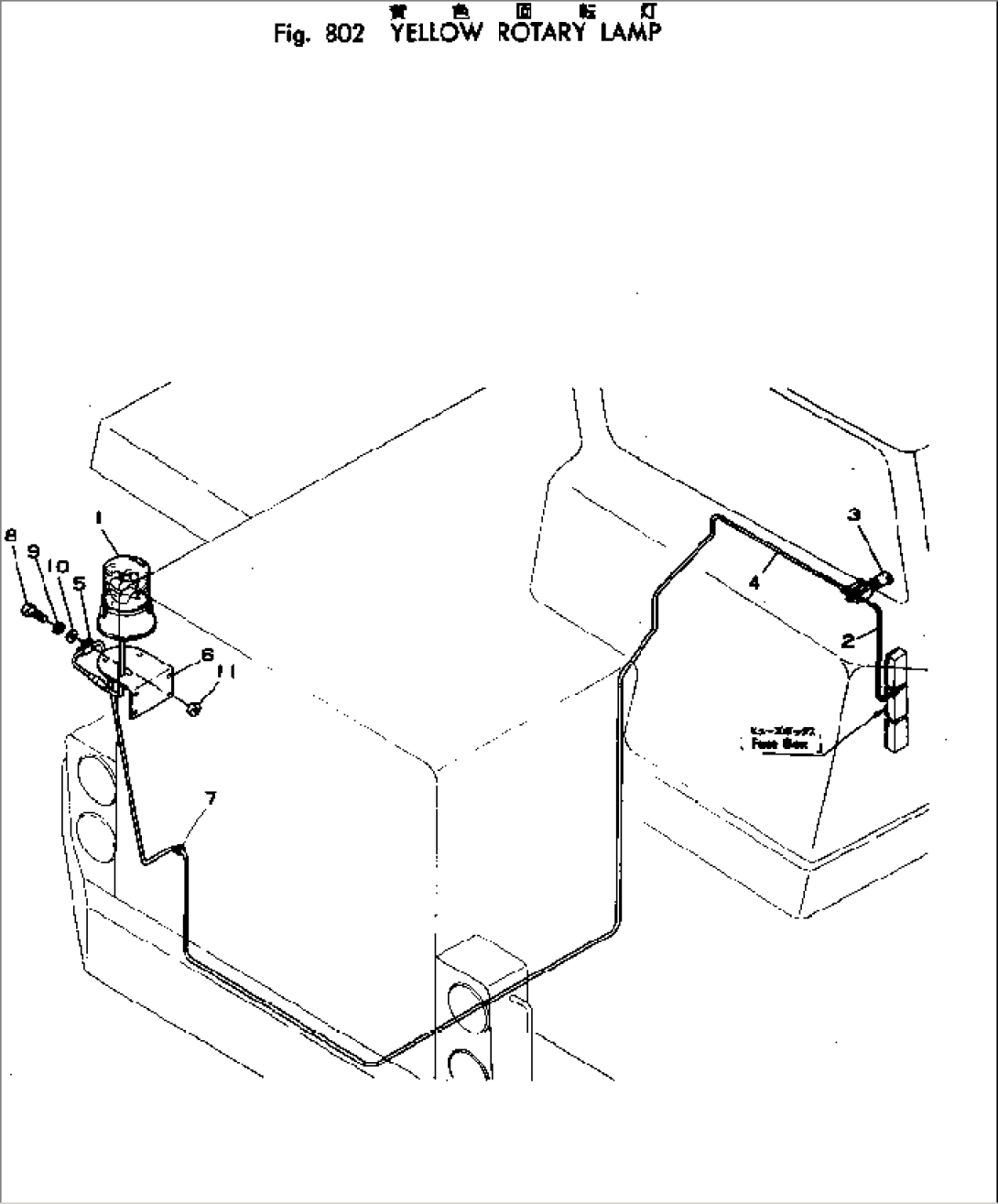

| 567-95-21000 | ROTARY LAMP ASS'Y | 1002- | ||
| 1 | 08129-42410 | LAMP,BEACON | 1002- | |
| 1 | 08129-42400 | LAMP | 1002- | |
| 1 | 08119-02460 | BULB, 60W | 1002- | |
| 2 | 566-95-21110 | CABLE | 1002- | |
| 3 | 08060-00060 | SWITCH,BEACON LAMP | 1002- | |
| 4 | 567-95-21120 | CABLE | 1002- | |
| 5 | 08034-00519 | BAND | 1002- | |
| 6 | 566-95-21131 | BRACKET | 1002- | |
| 7 | 08037-01008 | GROMMET | 1002- | |
| 8 | 01010-31020 | BOLT | 1002- | |
| 9 | 01602-01030 | WASHER | 1002- | |
| 10 | 01640-01016 | WASHER | 1002- | |
| 11 | 01571-01016 | SEAT | 1002- | |
| 12 | 566-06-16920 | STICKER | 1002- | |
| 13 | 08029-05515 | WIRE | 1002- |
