| Item | Part No. | Part Name | Qty | Serial No. |

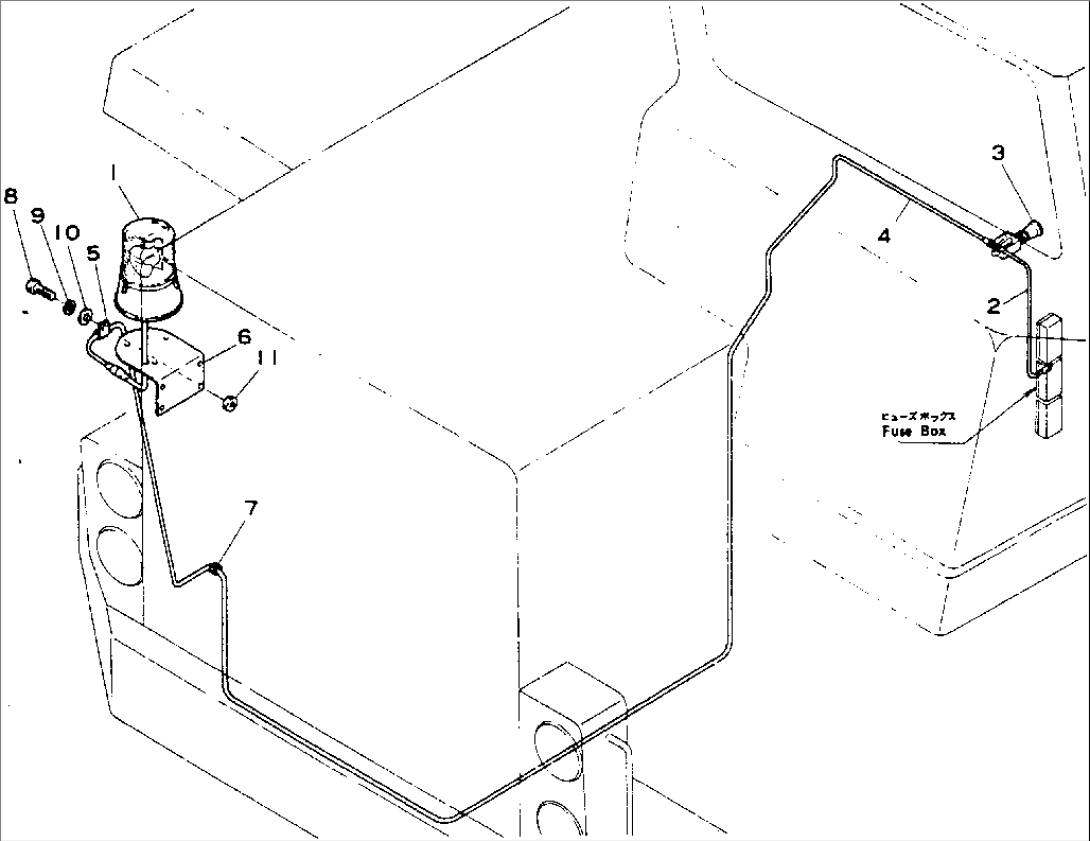

| 566-95-21000 | ROTARY LAMP ASS'Y | 1002- | ||
| 1 | 08129-02400 | LAMP | 1002- | |
| 2 | 566-95-21110 | CABLE | 1002- | |
| 3 | 08060-00000 | SWITCH | 1002- | |
| 4 | 566-95-21120 | CABLE | 1002- | |
| 5 | 08036-10614 | CLIP | 1002- | |
| 6 | 566-95-21130 | BRACKET | 1002- | |
| 7 | 08037-01008 | GROMMET | 1002- | |
| 8 | 01010-31025 | BOLT | 1002- | |
| 9 | 01602-01030 | WASHER | 1002- | |
| 10 | 01640-01016 | WASHER | 1002- | |
| 11 | 01580-01008 | NUT | 1002- |
