| Item | Part No. | Part Name | Qty | Serial No. |
| 8242-75-3500 | CONVEYOR ASS'Y | 1005-1505 | ||

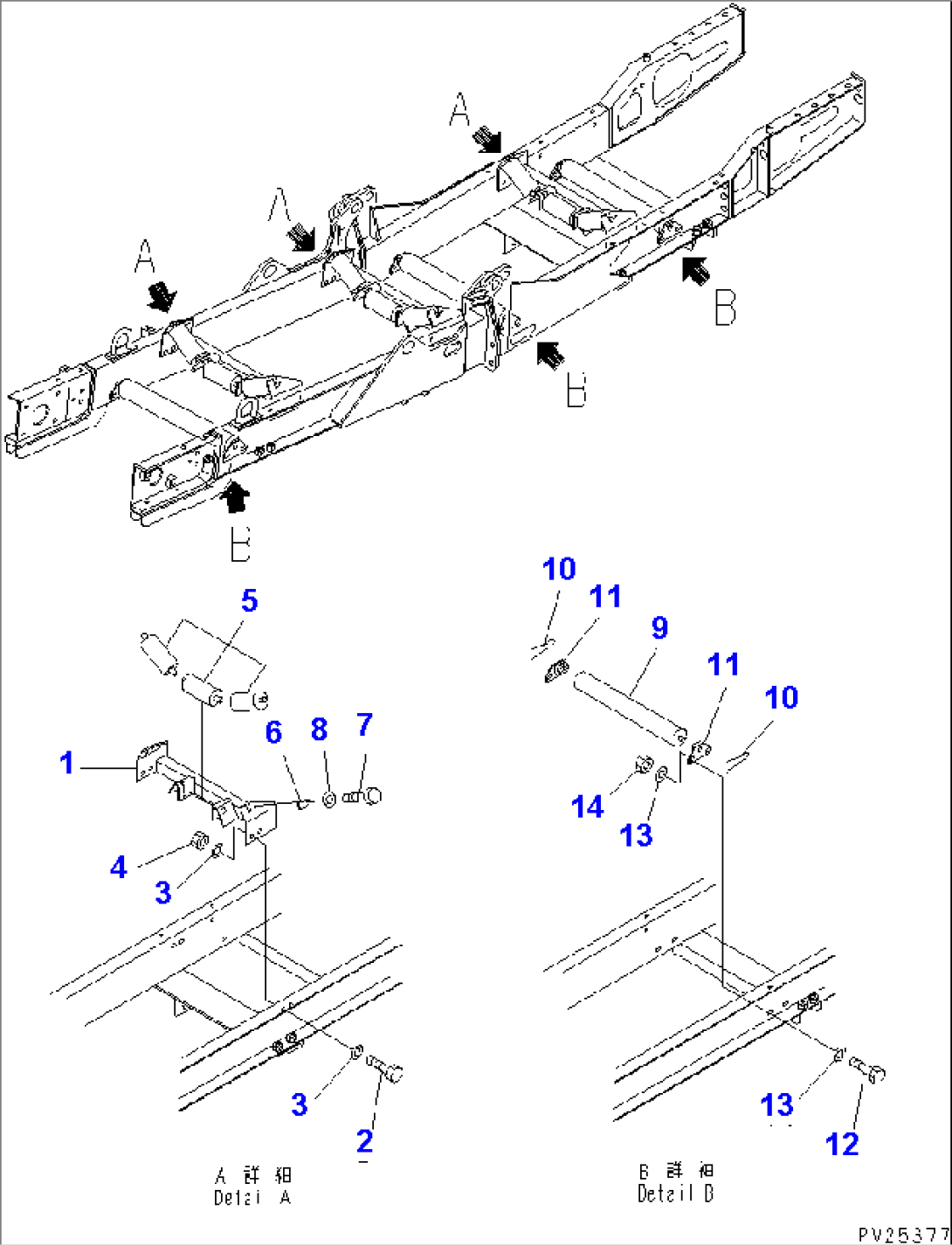

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7621 TO 7629. | ||||
| 1 | 8221-75-2910 | BRACKET | 1005-1505 | |
| 2 | 01010-81230 | BOLT | 1005-1505 | |
| 3 | 01643-31232 | WASHER | 1005-1505 | |
| 4 | 01580-11210 | NUT | 1005-1505 | |
| 5 | KWKKS-75-54261 | ROLLER | 1005-@ | |
| 6 | 8206-99-9216 | PLATE | 1005-@ | |
| 7 | 01010-80610 | BOLT | 1005-@ | |
| 8 | 01643-30623 | WASHER | 1005-@ | |
| 9 | KWKKS-75-51661 | ROLLER | 1005-@ | |
| 10 | 04050-13045 | PIN | 1005-@ | |
| 11 | 8221-75-3450 | BRACKET | 1005-1505 | |
| 12 | 01010-81220 | BOLT | 1005-1505 | |
| 13 | 01643-31232 | WASHER | 1005-1505 | |
| 14 | 01580-11008 | NUT | 1005-1505 |
