| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-75-3500) | CONVEYOR ASS'Y | 1005-1505 | ||

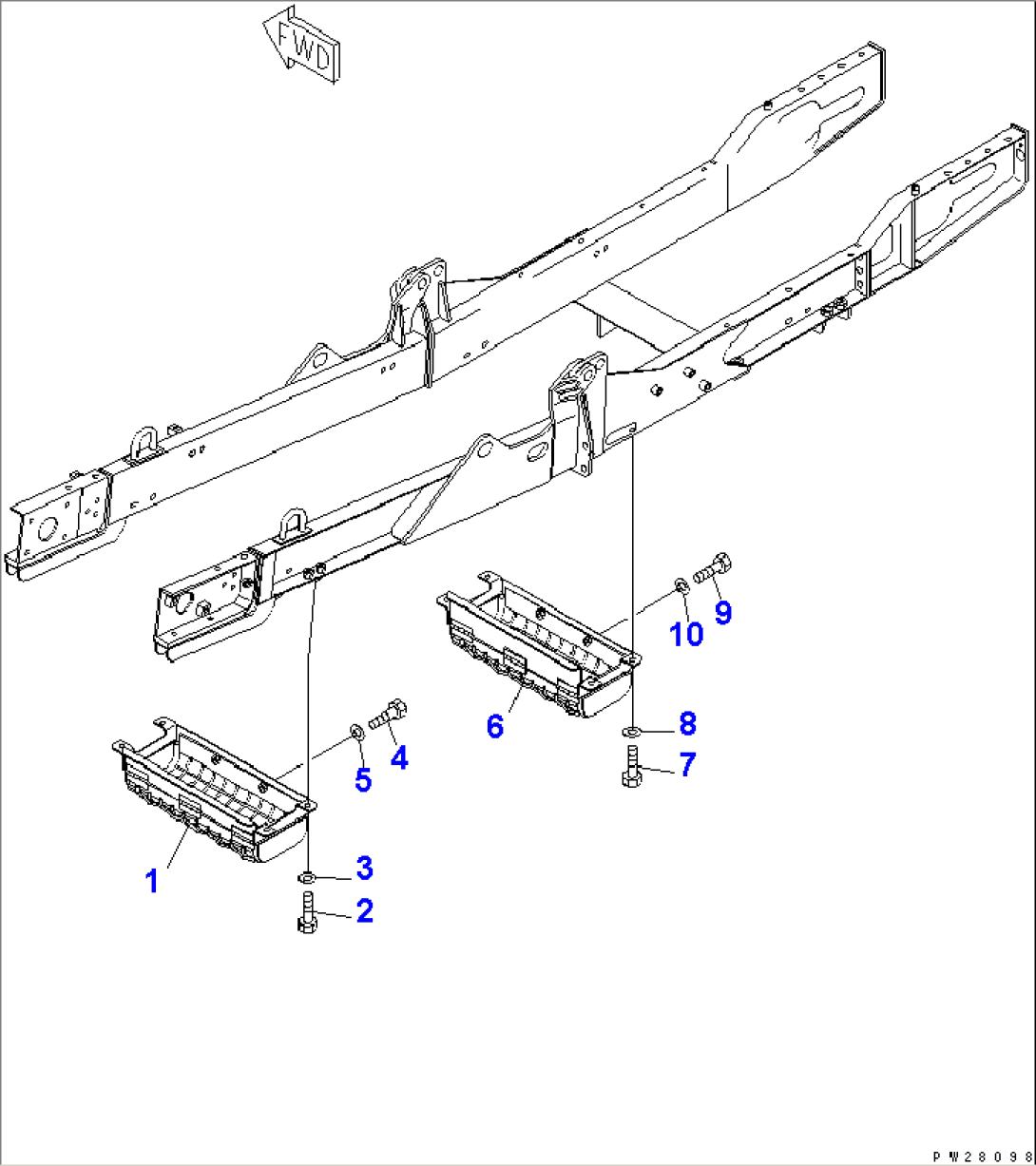

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7621 TO 7629. | ||||
| 1 | 8221-75-3440 | GUARD | 1005-1505 | |
| 2 | 01010-81220 | BOLT | 1005-@ | |
| 3 | 01643-31232 | WASHER | 1005-@ | |
| 4 | 01010-81225 | BOLT | 1005-1505 | |
| 5 | 01643-31232 | WASHER | 1005-1505 | |
| 6 | 8221-75-3460 | GUARD | 1005-1505 | |
| 7 | 01010-81220 | BOLT | 1005-1505 | |
| 8 | 01643-31232 | WASHER | 1005-1505 | |
| 9 | 01010-81225 | BOLT | 1005-1505 | |
| 10 | 01643-31232 | WASHER | 1005-1505 |
