| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-75-3500) | CONVEYOR ASS'Y | 1005-1505 | ||

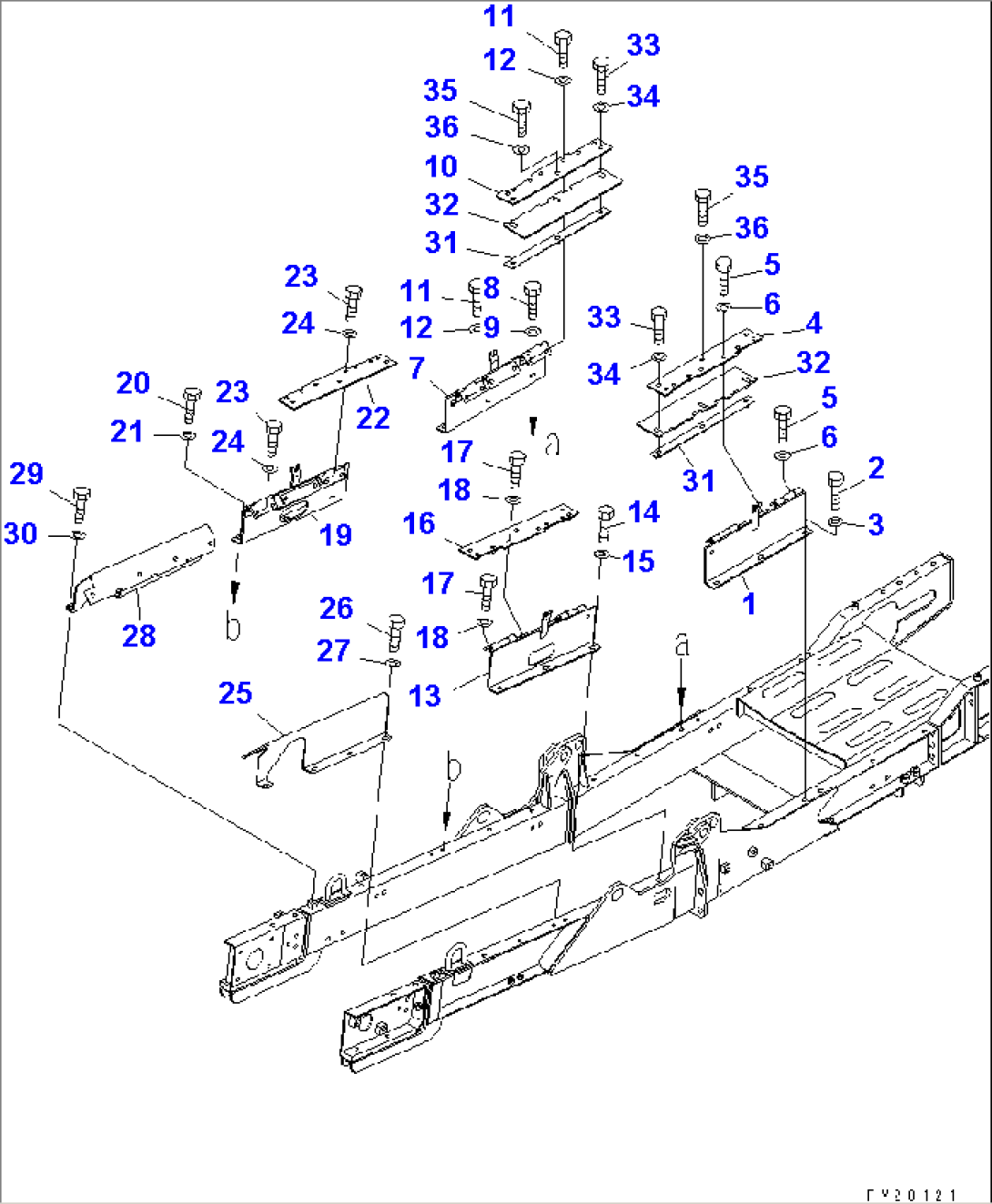

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7621 TO 7629. | ||||
| 1 | 8221-75-3150 | STAY,L.H. | 1005-1505 | |
| 2 | 01010-81020 | BOLT | 1005-@ | |
| 3 | 01643-31032 | WASHER | 1005-@ | |
| 4 | 8221-75-3160 | PLATE,L.H. | 1005-@ | |
| 5 | 01010-81020 | BOLT | 1005-@ | |
| 6 | 01643-31032 | WASHER | 1005-@ | |
| 7 | 8221-75-3170 | STAY,R.H. | 1005-1505 | |
| 8 | 01010-81020 | BOLT | 1005-@ | |
| 9 | 01643-31032 | WASHER | 1005-@ | |
| 10 | 8221-75-3180 | PLATE,R.H. | 1005-@ | |
| 11 | 01010-81020 | BOLT | 1005-@ | |
| 12 | 01643-31032 | WASHER | 1005-@ | |
| 13 | 8221-75-3190 | STAY,L.H. | 1005-1505 | |
| 14 | 01010-81020 | BOLT | 1005-@ | |
| 15 | 01643-31032 | WASHER | 1005-@ | |
| 16 | 8221-75-3210 | PLATE,L.H. | 1005-1505 | |
| 17 | 01010-81020 | BOLT | 1005-1505 | |
| 18 | 01643-31032 | WASHER | 1005-1505 | |
| 19 | 8221-75-3220 | STAY,R.H. | 1005-1505 | |
| 20 | 01010-81020 | BOLT | 1005-@ | |
| 21 | 01643-31032 | WASHER | 1005-@ | |
| 22 | 8221-75-3230 | PLATE,R.H. | 1005-1505 | |
| 23 | 01010-81020 | BOLT | 1005-1505 | |
| 24 | 01643-31032 | WASHER | 1005-1505 | |
| 25 | 8221-75-3240 | STAY,L.H. | 1005-1505 | |
| 26 | 01010-81020 | BOLT | 1005-@ | |
| 27 | 01643-31032 | WASHER | 1005-@ | |
| 28 | 8221-75-3250 | STAY,R.H. | 1005-1505 | |
| 29 | 01010-81020 | BOLT | 1005-@ | |
| 30 | 01643-31032 | WASHER | 1005-@ | |
| 31 | 8221-75-3260 | PLATE | 1005-1505 | |
| 32 | 8221-75-3281 | RUBBER | 1005-1505 | |
| 33 | 01010-81020 | BOLT | 1005-@ | |
| 34 | 01643-31032 | WASHER | 1005-@ | |
| 35 | 01010-81025 | BOLT | 1005-@ | |
| 36 | 01643-31032 | WASHER | 1005-@ |
